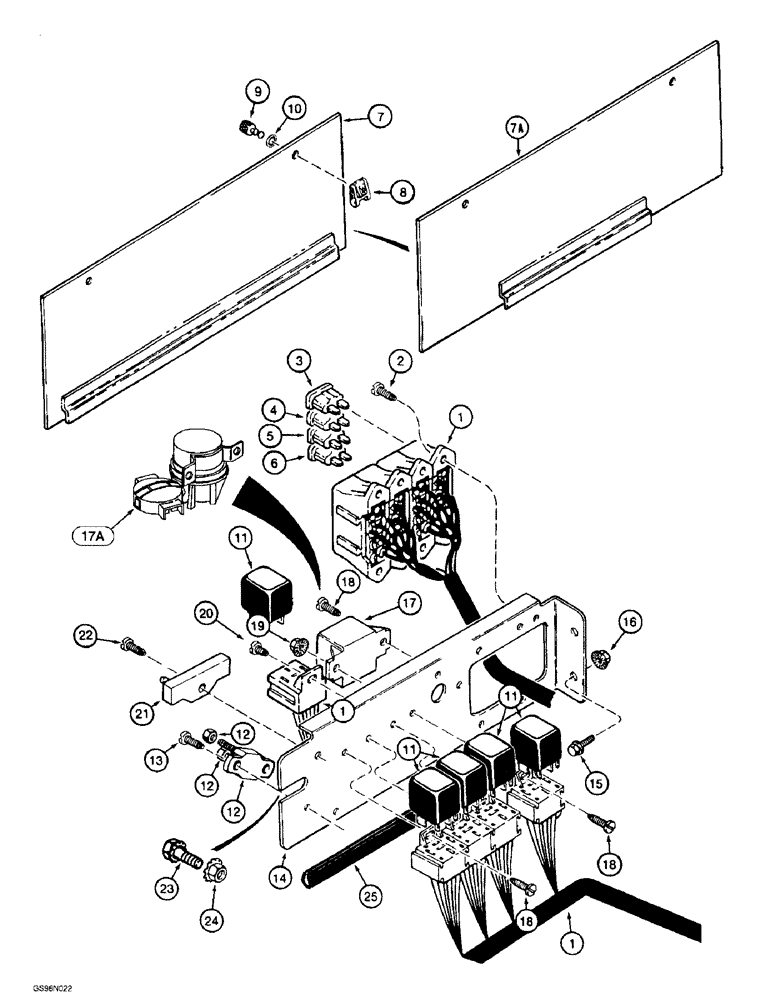

Запчасти Case 621B (4-26) - MAIN CANOPY HARNESS, POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS

1

110864A2

HARNESS

Main ROPS Canopy, see Figure 4-24 for serviceable rectifiers and resistor, Serial Range: -JEE0052701

1шт.

1

244245A1

HARNESS

Main ROPS Canopy, see Figure 4-24 for serviceable rectifiers and resistor JEE0052701 to

1шт.

2

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Philllips, No. 10 NC x 3/4 inch

4шт.

3

A149796

FUSE

violet, 3 ampere

1шт.

4

A149798

FUSE

tan, 5 ampere

4шт.

5

A149800

FUSE,10 Amp

Red 10 ampere, eight used with 244245A1 harness

7-8шт.

6

A149801

FUSE,Lt Blue, 15 Amp

light blue, 15 ampere

1шт.

7

1977999C3

COVER

fuse box, tan

1шт.

7a

193674A1

COVER

fuse box, gray

1шт.

8

A36042

CLIP

RETAINER quarter turn

2шт.

9

1970049C2

STUD

fuse box

2шт.

10

1981869C1

WASHER

WASHER

2шт.

11

198161A1

RELAY

mini, 24 Volt, Neutral Start, Transmssion Cut-Off, Cold Start, Horn, and Low Coolant, see Ref. 3, Figure 4-24 for low coolant relay resistor, replaces A186288 relay

5шт.

12

S243558

CIRCUIT-BREAKER,12.5A

includes bracket and hardware, with plastic housing and seal, 12.5 ampere

1шт.

13

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4 inch

2шт.

14

1987018C2

SUPPORT

HOUSING power distribution center

1шт.

15

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

17

1546542C1

RELAY

Sealed, 24 Volt, Service Only, Replaces 1546485C1 non-sealed Relay Used In Production, No Longer Used, Order 120398A1 Relay, Ref. 17A

1шт.

17a

120398A1

RELAY

24 volt, starter

1шт.

18

261-13512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

self-tapping, pan Phillips, No. 10 NC x 3/4 inch

3шт.

19

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

20

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self-tapping, pan Phillips, No. 10 NC x 3/8 inch

1шт.

21

F22316

RESISTOR,75 Ohms 0.2 Amps DC

75 ohm

1шт.

22

261-13516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan Phillips, No. 10 NC x 1 inch

1шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

24

231-5146

FLANGE NUT,3/8"-16

1шт.

25

REF

INSTRUCTION

TRIM Edge, 220 mm (8-3/4 in) Long, Cut From F64277X Bulk Trim

1шт.

F64277X

SEAL

TRIM Edge, Bulk, 14478 mm (570 in) long

1шт.
