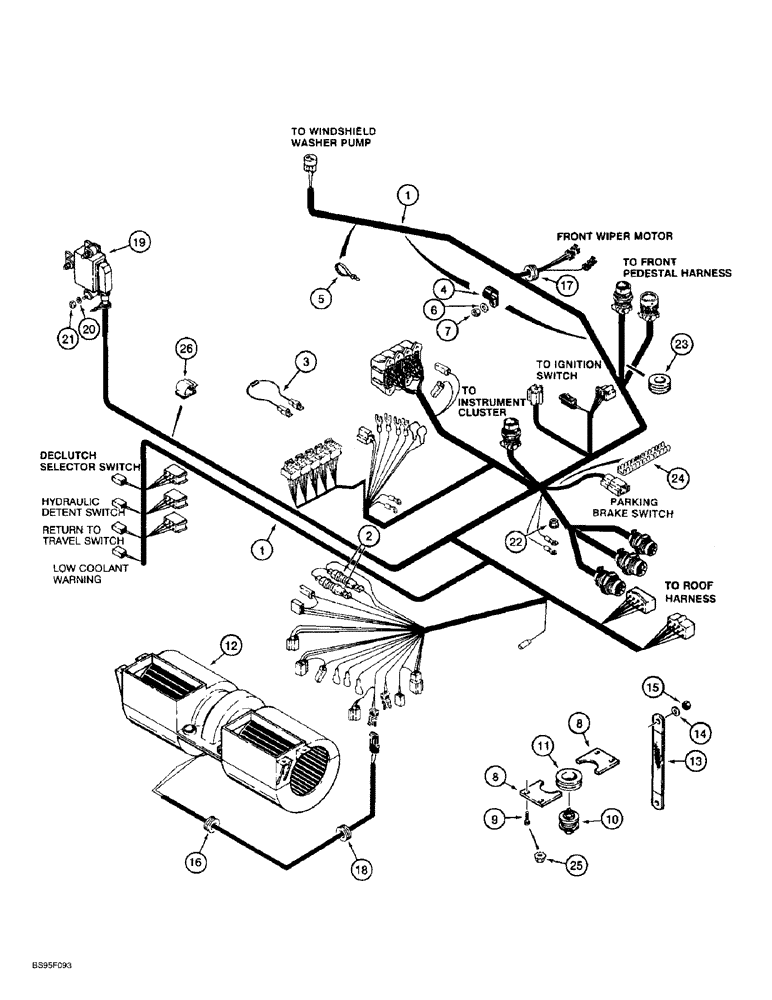

Запчасти Case 621B (4-18) - MAIN CAB HARNESS, TRANSMISSION CONTROL (04) - ELECTRICAL SYSTEMS

1

110863A2

HARNESS

Main Cab, Includes: Ref 2 and Ref. 3 P/N 115448A1, Serial Range: -JEE0042310

1шт.

1

192493A1

HARNESS

Main Cab, Includes: Ref 2 and Ref. 3 P/N 115448A1 JEE0042310, Serial Range: -JEE0052700

1шт.

1

244242A1

HARNESS

Main Cab, Includes: Ref 2 and Ref. 3 P/N 220534A1 JEE0052701 to

1шт.

2

113699A1

RECTIFIER

2-5/8, Included With 110863A2, 192493A1, 244242A1

2шт.

3

115448A1

RESISTOR

Low Coolant Relay, Included With 110863A2, 192493A1

1шт.

3

220534A1

ELECTRICAL WIRE

WIRE RESISTOR Low Coolant Relay, Included With 244242A1

1шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

2шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

7

425-104

NUT,1/4"-20, Cl 5

2шт.

8

1970030C1

LARGE PLATE

PLATE, LARGE harness guide

2шт.

9

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

10

A187523

JUNCTION BLOCK

cable junction, includes hardware

1шт.

11

A187875

GROMMET

rubber, cab floor

1шт.

12

REF

INSTRUCTION

Blower Assy, See Figure 4-58

1шт.

13

L126051

GROUND STRAP

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

2шт.

15

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

2шт.

16

96901C1

GROMMET

blower motor wire

1шт.

17

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, wiper wire

1шт.

18

1546537C1

GROMMET

wire

1шт.

19

A187988

TESTER

CONTROL Transmission, ZF 6009 036 103, If Used

1шт.

See ZF part number stamped on control to determine which part number to order on models prior to P.I.N. JEE0052701.

1шт.

19

138496A1

TESTER

CONTROL Transmission, ZF 6009 054 065, If Used

1шт.

See ZF part number stamped on control to determine which part number to order on models prior to P.I.N. JEE0052701.

1шт.

19

138496A1R

REMAN ELECT CONTROL

621B, REMAN for Part No. A187988 & 138496A1, N.A. Only

1шт.

19

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

19

242557A1

TESTER

CONTROL Transmission, ZF 6009 047 654 JEE0052701 to

1шт.

19

242557A1R

REMAN ELECT CONTROL

621B

1шт.

19

242557A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

20

492-11010

LOCK WASHER,#10

3шт.

21

225-14110

NUT,#10-24

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

23

1970021C1

GROMMET

TRIM Flexible, 324 mm (12-3/4 in) Long

1шт.

24

1973557C1

GROMMET

rubber, seat platform on left-hand side to parking brake switch

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

26

169850C2

CABLE CLIP

Retaining, harness to rear wall of cab

1шт.

27

275263A1

HARNESS

Main Cab Adapter, 23 Pin to 31 Pin, If Used, Not Illustrated, Serial Range: -JEE0052701

1шт.
