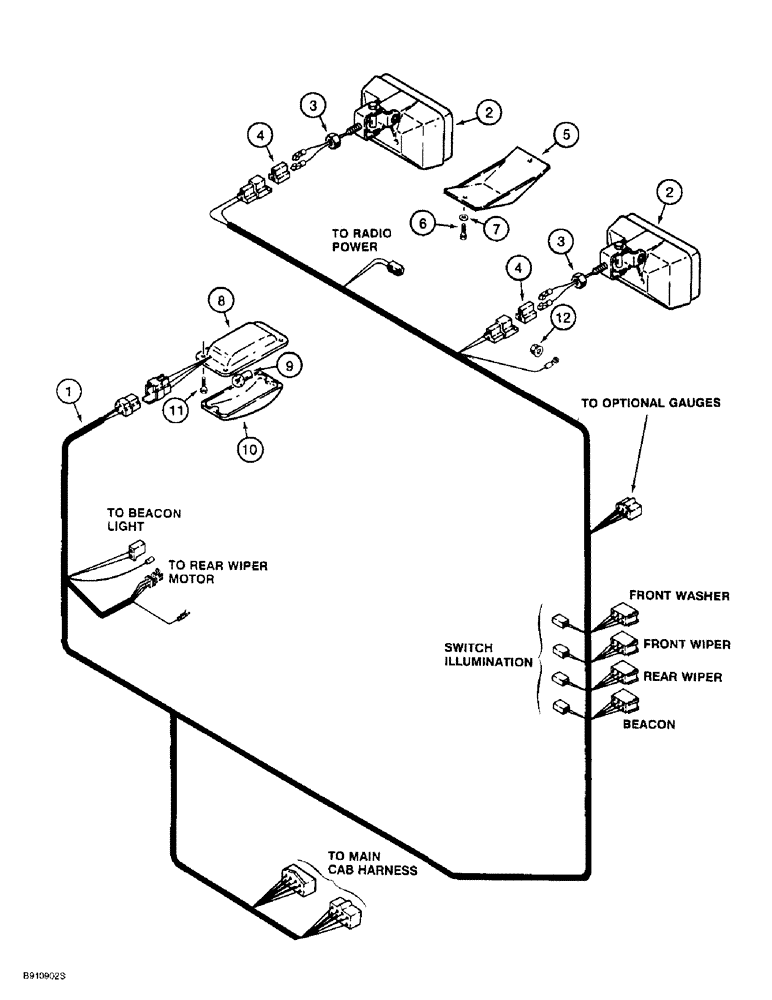

Запчасти Case 621B (4-16) - CAB ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546501C1

HARNESS

cab roof, replaces 115460A1 harness

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP flood, Figure 4-48

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

877291R1

ELEC CONNECTOR,Female

harness to flood lamp

2шт.

5

1339590C3

COVER

harness, tan

1шт.

5

193824A1

COVER

harness, gray

1шт.

6

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

No. 10 NC x 3/8 inch

2шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64"), Replaces 1990502C1 washer

2шт.

245659C91

LAMP

ASSEMBLY dome, Includes: Ref. 8 - 10, replace 12 volt bulb with 24 volt bulb, Ref. 9, shown below

1шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

9

456602

BULB,2C2R, #1692, 28V

dome lamp, 24 volt, No. 1692, type 2C2R, type 2C2R, not part of 245659C91 lamp assembly

1шт.

10

245679C1

LENS

dome lamp, no longer available, order 245659C91 lamp assembly, Serial Range: -JEE0042493

1шт.

10

225929A1

LENS

dome lamp JEE0042494 to

1шт.

11

265-1458

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

No. 10-16 x 1/2 inch, cab frame

4шт.

12

1999948C1

FLANGE NUT

5/16 inch, mounts ground wire to cab frame

1шт.
