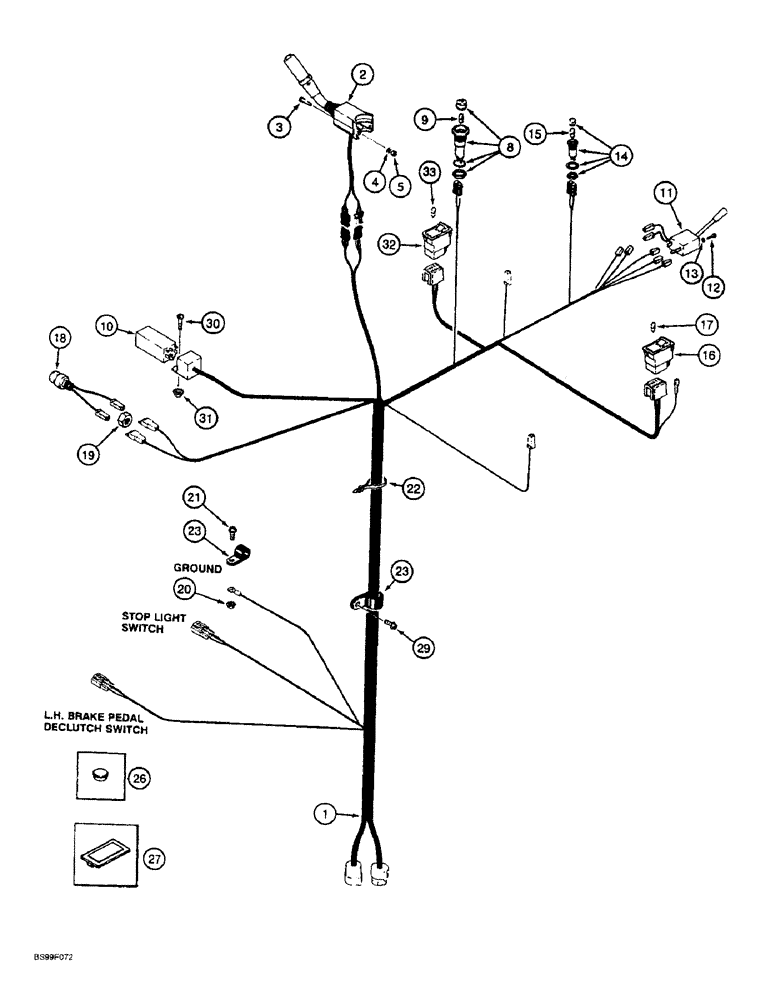

Запчасти Case 621B (4-15A) - HARNESS, PEDESTAL, P.I.N. JEE0052701 AND AFTER (04) - ELECTRICAL SYSTEMS

1

244247A1

HARNESS

pedestal, used on models with autoshift

1шт.

2

238270A1

CONTROL

LEVER transmission control

1шт.

238270A1R

REMAN-JOYSTICK

621B - CASE WHEEL LOADER (NORTH AMERICA) P.I.N. JEE0052701 AND AFTER (3/93-12/98)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

A186268

LAMP

ASSEMBLY master warning, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp, includes lens cap and mounting hardware

1шт.

9

S119827

BULB

No. 313

1шт.

10

A187940

FLASHER UNIT

turn signal

1шт.

11

1987555C1

SWITCH

combination, turn signal and horn, horn wires not used on models with horn button on steering column

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

13

892-11004

LOCK WASHER,M4

2шт.

A187667

LAMP

ASSEMBLY indicator, turn signal, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BODY lamp, includes lens cap and mounting hardware

1шт.

15

T39215

BULB

No. 1820

1шт.

16

A187984

SWITCH

SWITCH - rocker, flasher lamp, hazard, Includes: Ref 17

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

18

A135520

SWITCH

SWITCH - cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

5/16 NC x 3/4 inch

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

2шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, used on units without Ref. 14 and 15, A187667

1шт.

27

245918C1

LENS

PLUG rectangular, rocker switch, used on units without Ref. 16, A187984

1шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

5/16 NC x 3/4 inch

2шт.

30

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

10 x 3/8 inch

1шт.

31

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

32

A187984

SWITCH

rocker, autoshift, Includes: Ref. 33

1шт.

33

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

34

275262A1

ELECTRICAL WIRE

WIRE JUMPER, not shown, used in connector to Ref. 32 rocker switch, if used

1шт.
