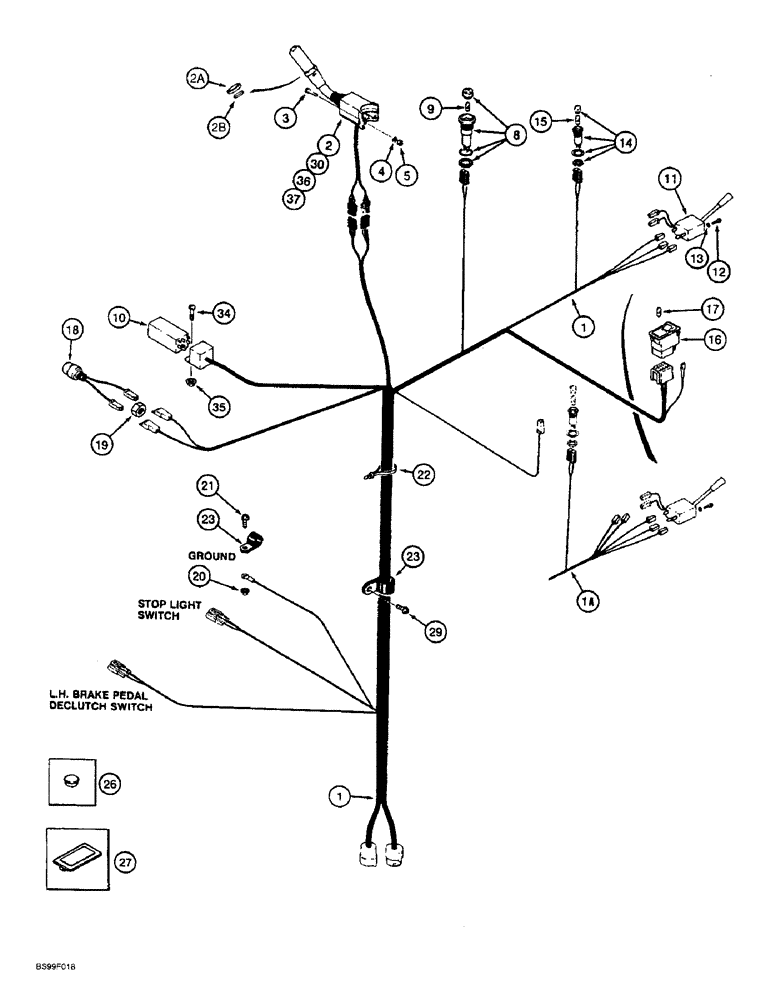

Запчасти Case 621B (4-14) - HARNESS, PEDESTAL, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

1546472C1

HARNESS

Pedestal, With Three Connectors To Ref 11 Combination Switch, No Longer Available, Order Ref 1A, 1546472C2 Harness

1шт.

1a

1546472C2

HARNESS

Pedestal, With Five Connectors to Ref 11 Combination Switch

1шт.

2

A187943

CONTROL

LEVER ASSEMBLY Transmission, No Longer Available, Order 245614A1 Lever, Ref 37

1шт.

2

245614A1R

REMAN ELECT CONTROL

Reman for New PN A187943

1шт.

2

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

2a

NSS

NOT SOLD SEPARAT

COVER

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

A186268

LAMP

ASSEMBLY master warning, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

BODY lamp, Includes Lens Cap and Mounting Hardware

1шт.

9

S119827

BULB

No. 313

1шт.

10

A187940

FLASHER UNIT

turn signal

1шт.

11

1987555C1

SWITCH

Combination, Turn Signal and Horn, Horn Wires Not Used On Models With Horn Button On Steering Column

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

13

892-11004

LOCK WASHER,M4

2шт.

A187667

LAMP

ASSEMBLY Indicator, Turn Signal, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BODY lamp, Includes Lens Cap and Mounting Hardware

1шт.

15

T39215

BULB

No. 1820

1шт.

16

A187984

SWITCH

SWITCH - Rocker, Flasher Lamp, Hazard, Includes: Ref 17

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

18

A135520

SWITCH

SWITCH - cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

21

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

5/16 x 3/4

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

23

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

Button, 5/8 Inch, Used On Units Without Ref 14 and 15

1шт.

27

245918C1

LENS

PLUG Rectangular, Rocker Switch, Used On Units Without Ref 16

1шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

5/16 x 3/4

1шт.

30

189725A1

CONTROL

LEVER Transmission, Replaces A187943, 134005A1 or 181627A1 Levers, No Longer Available, Order 245614A1 Lever, Ref. 37, Serial Range: -JEE0051209

1шт.

30

245614A1R

REMAN ELECT CONTROL

Reman for New PN 189725A1

1шт.

30

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

34

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

pan head, special, 10 x 3/8 inch

1шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

36

236488A1

CONTROL

LEVER Transmission, With Kickdown Switch-Button, No Longer Available, Order 245614A1 Lever, Ref. 37 JEE0051209, Serial Range: -JEE0051915

1шт.

36

245614A1R

REMAN ELECT CONTROL

621B, REMAN for Part No. 245614A1 & A187943,

1шт.

36

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

37

245614A1

FLASHER SWITCH,Lever, Transmission Control, With Kickdown Switch

LEVER Transmission, With Kickdown Switch-button, Replaces A187943, 189725A1 and 236488A1, Serial Range: -JEE0051916

1шт.

37

245614A1R

REMAN ELECT CONTROL

621B, REMAN for Part No. 245614A1 & A187943

1шт.

37

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

38

238270A1

CONTROL

LEVER Transmission, Without Kickdown Switch-Button, Not Illustrated JEE0051916 to

1шт.

238270A1R

REMAN-JOYSTICK

621B - CASE WHEEL LOADER (NORTH AMERICA) PRIOR TO P.I.N. JEE0052701 (3/93-12/98)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

252822A1

KIT

Repair, Kickdown Button Boot, Services 189725A1, 236488A1, And 245614A1

1шт.
