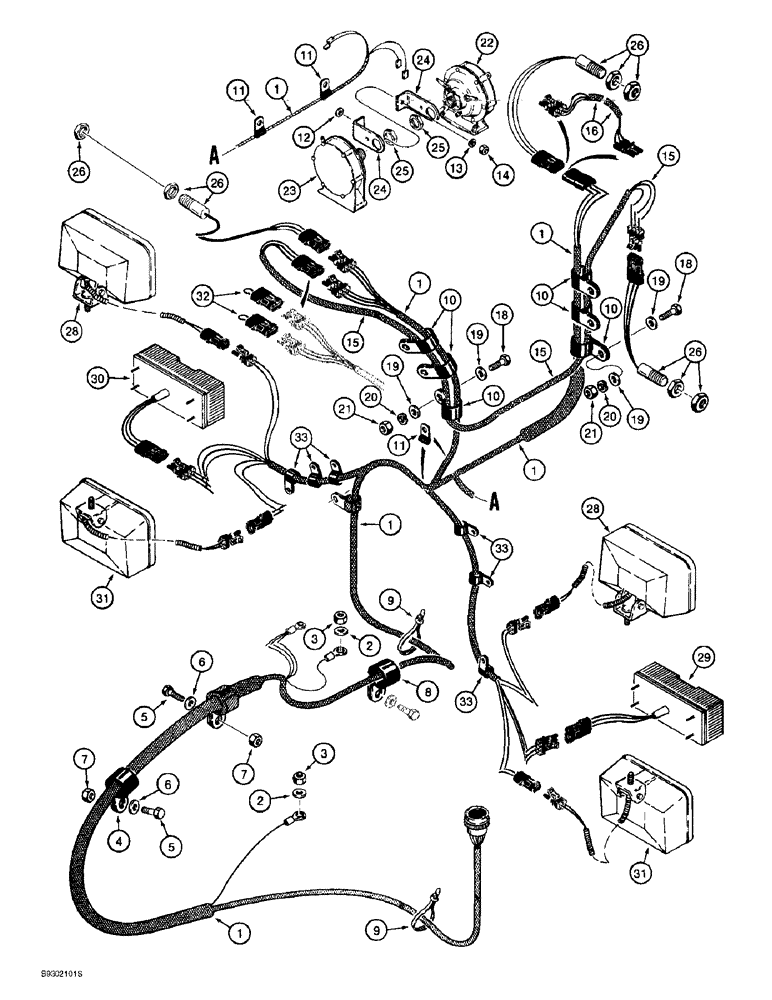

Запчасти Case 621B (4-12) - FRONT HARNESS, LAMPS AND SWITCHES, XT LOADER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
116590A1
HARNESS
front
1шт.
2
L127554
WASHER,0.395" ID x 0.875" OD x 0.064" Thk
11 x 25 x 2 mm
2шт.
3
L127555
NUT,Hex, 3/8" - 16
3/8 inch NC
2шт.
4
515-23254
CLAMP,1", Insul, 3/8" Bolt
P-type
1шт.
5
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
2шт.
6
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64 inch)
2шт.
7
231-1446
NUT,3/8" - 16, Gr 5
2шт.
8
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
Wire, Use existing hardware
1шт.
9
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
1шт.
10
L19029
CLAMP
1/2 inch ID, jumper wire, upper four clamps use hardware Ref. 21 and 22 on Figure 8-14
6шт.
11
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
4шт.
12
495-21056
WASHER,1/2"
9/16 x 1-3/8 x 7/64 inch
1шт.
14
425-105
NUT,5/16"-18, G5
1шт.
15
115863A1
HARNESS
jumper
1шт.
16
118134A1
HARNESS
jumper
1шт.
18
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
2шт.
19
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64 inch)
4шт.
20
492-11038
LOCK WASHER,3/8"
2шт.
21
425-106
NUT,3/8"-16, Cl 5
2шт.
22
R45461
HORN
F note, 24 volt, left-hand
1шт.
23
D77650
HORN
A note, 24 volt, right-hand
1шт.
24
L73799
BRACKET
mounting, horn
2шт.
25
L30866
LOCK NUT
hex, special
1-2шт.
26
SWITCH
proximity, height control, return-to-transport and return-to-dig, includes hardware
3шт.
28
A187519
LIGHT ASSY.,24V, 70W, Clear
Drive, See Figure 4-48
2шт.
29
A187992
LIGHT ASSY.,24V, 27W, Amber/Clear
Turn signal and flasher, right-hand, See Figure 4-50
1шт.
30
A187993
LIGHT ASSY.,24V, 27W, Amber/Clear
Turn signal and flasher, left-hand, See Figure 4-50
1шт.
31
A187520
LIGHT ASSY.,24V, 70W, Clear
Flood, See Figure 4-48, not serviced separately, order kit 229488A1
2шт.
32
L127785
HARNESS
WIRE jumper, use when height control and return-to-transport option is not used
2шт.
33
515-25127
CLAMP,1/2", Insul, 1/2" Bolt
Lamp
6шт.
Выбрано товаров: 31
