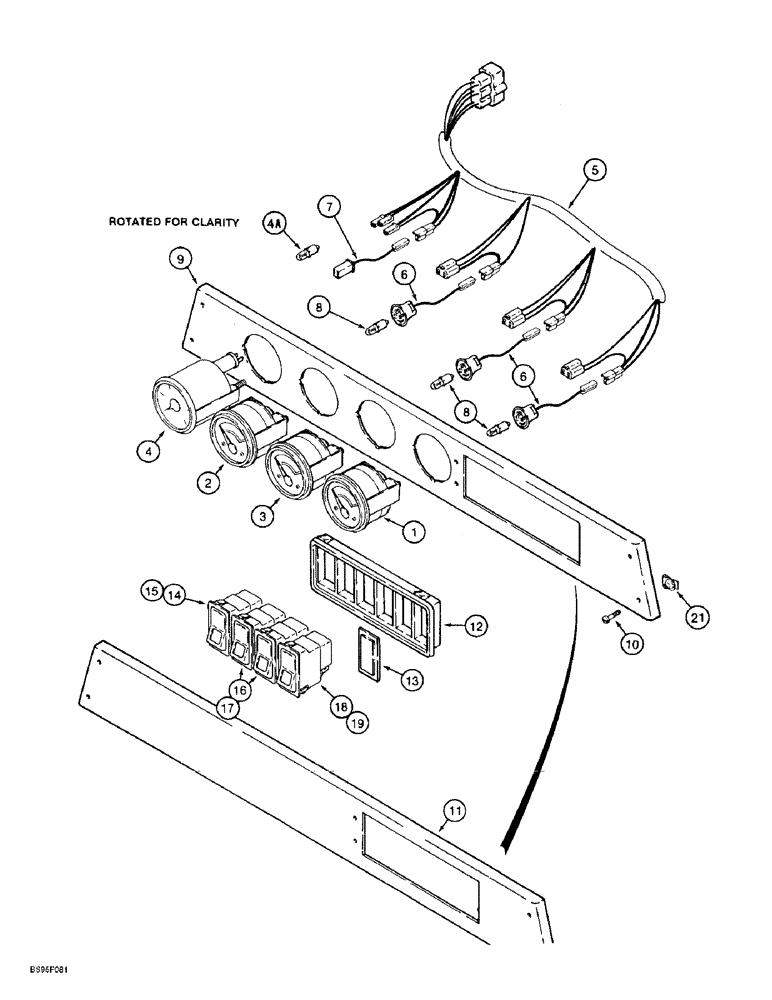

Запчасти Case 621B (4-08) - OPTIONAL GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE, includes clamp and nut

1шт.

2

118266A1

ELECTRICAL GAUGE

Transmission Oil Temperature, includes clamp and nut,, Replaces L125854

1шт.

3

118265A1

ELECTRICAL GAUGE

Engine Oil Pressure, includes clamp and nut, Replaces L125853

1шт.

4

L129015

TACHOMETER

GAUGE, Includes: Ref. 4A and clamp and nut

1шт.

4a

102044A1

BULB

24V, 3W, replaces S116543, No. 456 bulb

1шт.

5

108260A1

HARNESS

gauges

1шт.

6

108258A1

ELECTRICAL WIRE

WIRE Jumper, Harness, Voltmeter, Engine Oil Pressue and Transmission Oil Temperature Gauges

3шт.

7

108259A1

ELECTRICAL WIRE

WIRE Jumper, tachometer

1шт.

8

S116543

BULB

No. 456, gauge

3шт.

9

1339563C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT overhead, Use On Units With Optional Gauges

1шт.

10

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

4шт.

11

1339868C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT overhead, Use On Units Without Optional Gauges

1шт.

12

A187580

PANEL

mounting, switch

1шт.

13

245918C1

LENS

PLUG Rectangular, rocker switch

1шт.

14

A187622

SWITCH

SWITCH - Rocker, Windshield Washer, Includes: Ref. 15

1шт.

See Figure 9-096 for rocker switch decals.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

16

A187621

SWITCH

SWITCH - Rocker, Wiper, Front and Rear. Includes: Ref. 17

2шт.

One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown on Figure 9-092

1шт.

See Figure 9-096 for rocker switch decals.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

18

1913507C1

SWITCH ASSY

rocker, beacon, Includes: Ref. 19

1шт.

See Figure 9-096 for rocker switch decals.

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

W5/1, 2 24V1, 2W

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch, used with Ref. 9 and 11, not illustrated

2шт.

21

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

1/4 inch NC

4шт.
