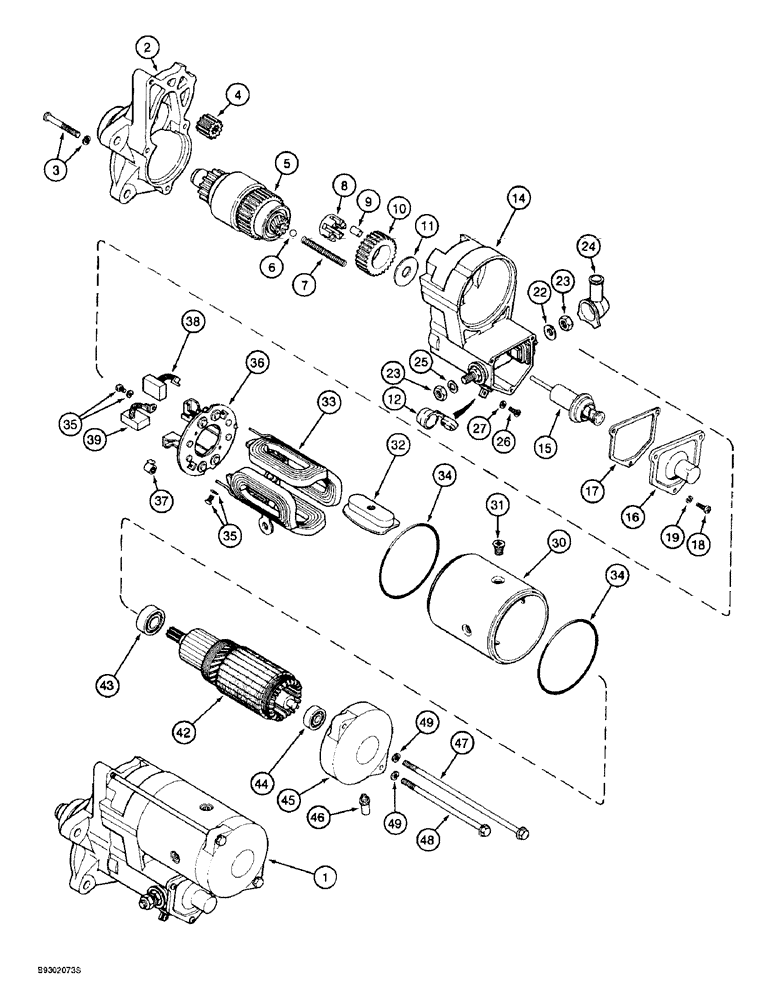

Запчасти Case 621B (4-04) - STARTER (04) - ELECTRICAL SYSTEMS

1

1987566C1

STARTER MOTOR,24V, 5.5kW

ASSEMBLY engine, Nippondenso No. 128000-2561, Includes: Ref. 2 - 49

1шт.

1

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

1

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

1

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

2

A49797

HOUSING

starter

1шт.

3

A47129

CAPTIVE WASHER SCREW

ASSEMBLY with washer

3шт.

4

A49809

PINION

GEAR

1шт.

5

A49802

CLUTCH

starter

1шт.

6

211-1311

BALL,11/32" Dia

chrome alloy steel, grade 200

1шт.

7

A47232

SPRING

compression, 2-13/16 inch free length

1шт.

8

A47236

RETAINER

roller bearing

1шт.

9

A47235

ROLLER BEARING

pinion bearing

5шт.

10

A49810

GEAR

pinion idler

1шт.

11

A47234

WASHER

thrust

1шт.

12

104589A1

BUSHING

insulation

1шт.

14

104598A1

SOLENOID SWITCH

Assy, magnetic, Includes: Ref. 15 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID - starter

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cover retaining

3шт.

19

NSS

NOT SOLD SEPARAT

WASHER - retaining

3шт.

22

A10454

WAVE WASHER

spring

1шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

A49805

COVER

terminal

1шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

A46950

SCREW,M5 x 0.8 x 0.8mm

terminal, special, 5 x 8 mm

1шт.

27

892-11005

LOCK WASHER,M5

1шт.

30

A49804

HOUSING

ASSEMBLY starter field, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

32

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

33

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

34

298253A1

SEAL,2.1mm Thk x 93mm ID

SEAL starter, replaces A49812 seal

2шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

ASSEMBLY with washer, brush retaining

4шт.

36

A49806

BRUSH HOLDER

ASSEMBLY, Includes: Ref. 37

1шт.

37

A47249

SPRING

brush tension

4шт.

38

A49807

COMMUTATOR BRUSH

starter

2шт.

39

A49808

COMMUTATOR BRUSH

starter

2шт.

42

A49801

ROTOR

ARMATURE ASSEMBLY starter, Includes: Ref. 43 and 44

1шт.

43

A49800

BALL BEARING,15 mm ID x 35 mm OD x 11 mm

armature, 15 x 35 x 11 mm

1шт.

44

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Replaces A47248 bearing

1шт.

45

A49811

COVER ASSY

FRAME commutator end

1шт.

46

A49803

BREATHER

COVER frame end

1шт.

47

104593A1

FLANGE BOLT

7 x 206 mm

1шт.

48

104594A1

FLANGE BOLT

7 x 144 mm

1шт.

49

A49815

LOCK WASHER

lock

2шт.
