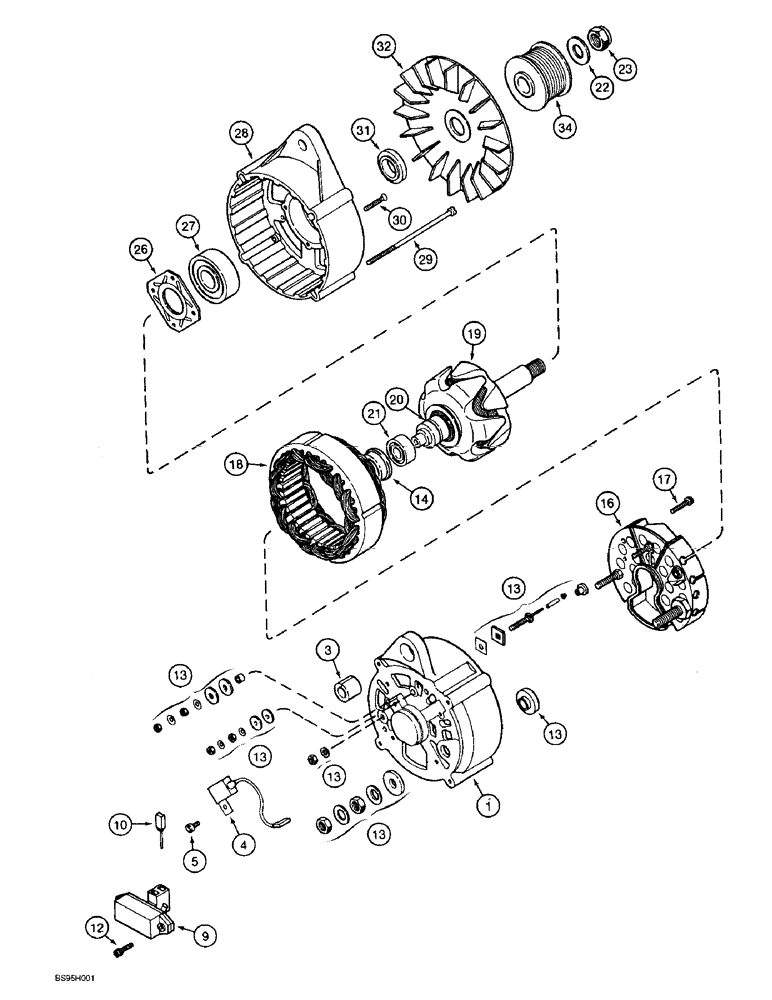

Запчасти Case 621B (4-02) - ALTERNATOR ASSEMBLY, 65 AMPERE, 24 VOLT (04) - ELECTRICAL SYSTEMS

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

ASSEMBLY, 24 volt, 65 ampere, Includes: Ref. 1 - 32

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

621B CASE WHEEL LOADER (NORTH AMERICA), ASSEMBLY, 65 AMPERE, 24 VOLT (3/93-12/98)

1шт.

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

1

1964731C1

HOUSING

collector ring end

1шт.

3

1964737C1

BUSHING,13.5mm ID x 20mm OD x 20mm L

expansion

1шт.

4

3079389R1

CAPACITOR

suppression

1шт.

5

1964969C1

SCREW

Capacitor retaining

1шт.

9

3079392R91

GOVERNOR

REGULATOR ASSEMBLY voltage, Includes: Ref. 10

1шт.

10

1964968C1

COMMUTATOR BRUSH

alternator

1шт.

12

A186194

SCREW,M4 x 18mm

hex flange, special

2шт.

13

1964738C1

REPAIR KIT

Terminal hardware

1шт.

14

1546477C1

SLEEVE

RING rear bearing

1шт.

16

1964965C1

RECTIFIER

BRIDGE

1шт.

17

A187504

SCREW

BOLT hex flange, special, rectifier bridge

2шт.

18

1964966C1

STATOR

alternator

1шт.

19

1964964C1

ROTOR

alternator

1шт.

20

3079410R1

RING

collector

1шт.

21

1964730C1

BALL BEARING,12mm ID x 32mm OD x 14mm W

1шт.

22

495-21063

WASHER,9/16"

5/8 x 1-15/32 x 7/64 inch

1шт.

23

231-46110

LOCK NUT,5/8"-18, GB

1шт.

26

1964727C1

PLATE

bearing retaining

1шт.

27

1964726C1

BALL BEARING,22.2mm ID x 56mm OD x 21mm W

drive end

1шт.

28

1964725C1

HOUSING

drive end

1шт.

29

1964748C1

SCREW

BOLT fillister head, special, alternator

4шт.

30

1964750C1

SCREW

machine, flat head, special

4шт.

31

1964729C1

SPACER

ring

1шт.

32

1964736C1

FAN

alternator

1шт.

34

A189616

PULLEY

replaces J919391 pulley

1шт.
