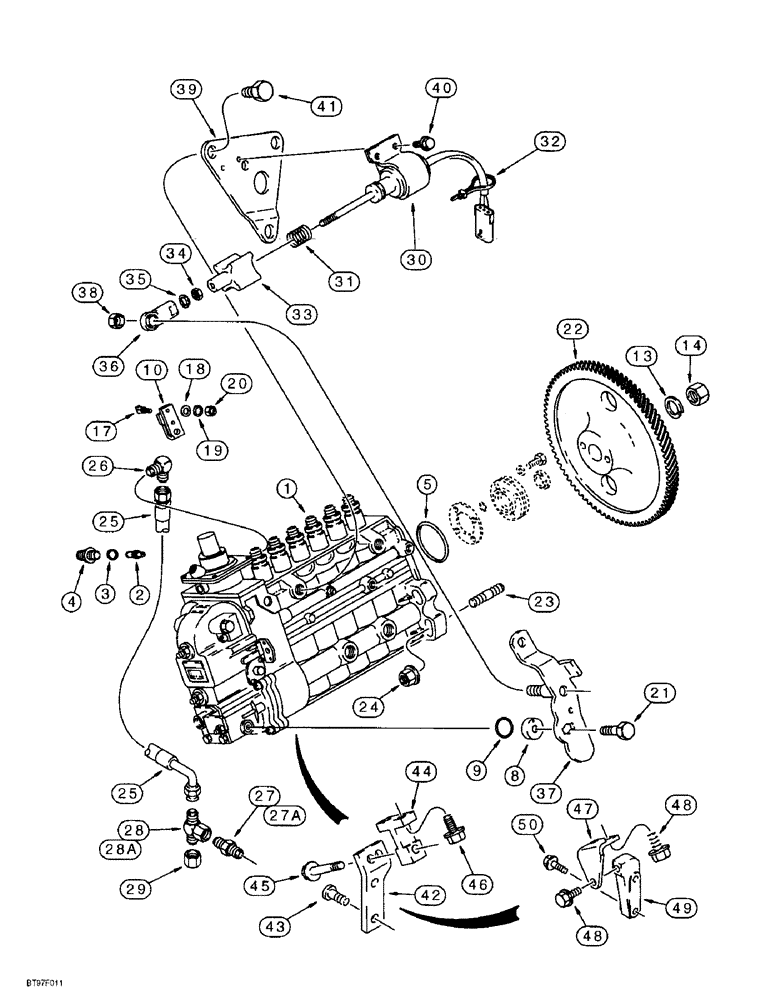

Запчасти Case 621B (3-13A) - FUEL INJECTION PUMP AND DRIVE, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (03) - FUEL SYSTEM

1

J929406

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY new, Includes: Ref. 2 - 21

1шт.

1

JR929406

REMAN-INJECTION PUMP

ASSEMBLY component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1

JC929406

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

timing

1шт.

3

J928981

LOCK WASHER

timing plug, replaces 3051337R1 washer

1шт.

4

J912888

PLUG

timing

1шт.

5

J935032

SEAL

O-RING, 80 mm ID, replaces A41856 O-ring

1шт.

6

J932096

VALVE

overflow, replaces J912886 valve

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

8

691292C1

RETAINER

HOUSING spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

sealing, special

1шт.

10

1808728C1

LEVER

throttle control

1шт.

13

A77775

LOCK WASHER

lock

1шт.

14

A41852

LOCK NUT

hex, self-locking

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

GEAR fuel pump, replaces J931450 gear

1шт.

23

J915036

STUD

pump mounting, 55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

Flexible

1шт.

26

A77512

ELBOW

90 degree

1шт.

27

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE hex, 1/8 PT x 1-1/16 inch, prior to Engine Serial Number 45534441

1шт.

27a

J941472

FITTING

NIPPLE hex, 7/16-20 inch flare x 10-1.0 mm str thread, Engine Serial Number 45534441 and after

1шт.

28

J924346

TEE

oil pressure, prior to Engine Serial Number 45534441

1шт.

28a

J933291

TEE

7/16-20 flare x flare x fem swivel, Engine Serial Number 45534441 and after

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

Hex

1шт.

30

J932530

SOLENOID

fuel shutoff, 24 volt, Includes: Ref. 31 - 36, replaces J931590 solenoid

1шт.

31

311100A1

SPRING

return, plunger

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

protective, plunger

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

ball

1шт.

J802998

PACKAGE,SERVICE

KIT pump shutoff lever, Includes: Ref. 37 - 38A

1шт.

37

NSS

NOT SOLD SEPARAT

LEVER pump shutoff

1шт.

38

832-41306

NUT,M6 x 1, Cl 10

1шт.

38a

J934022

WASHER

flat, special, installed between Ref. 36 and Ref. 38, not shown

1шт.

39

J930589

SUPPORT

BRACKET solenoid mounting

1шт.

40

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

41

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

BOLT, 16-2.0 x 12 mm

3шт.

42

J928408

BRACE

fuel pump

1шт.

43

J928231

SCREW,Truss Torx, M8 x 1.25 x 25mm, Cl 10.9

round head cap

2шт.

44

J928407

BRACE

fuel pump

2шт.

45

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

46

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

47

J863311

BRACE

fuel pump, if used

1шт.

48

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

If used

3шт.

49

J863312

BRACE

fuel pump, if used

1шт.

50

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

If used

2шт.
