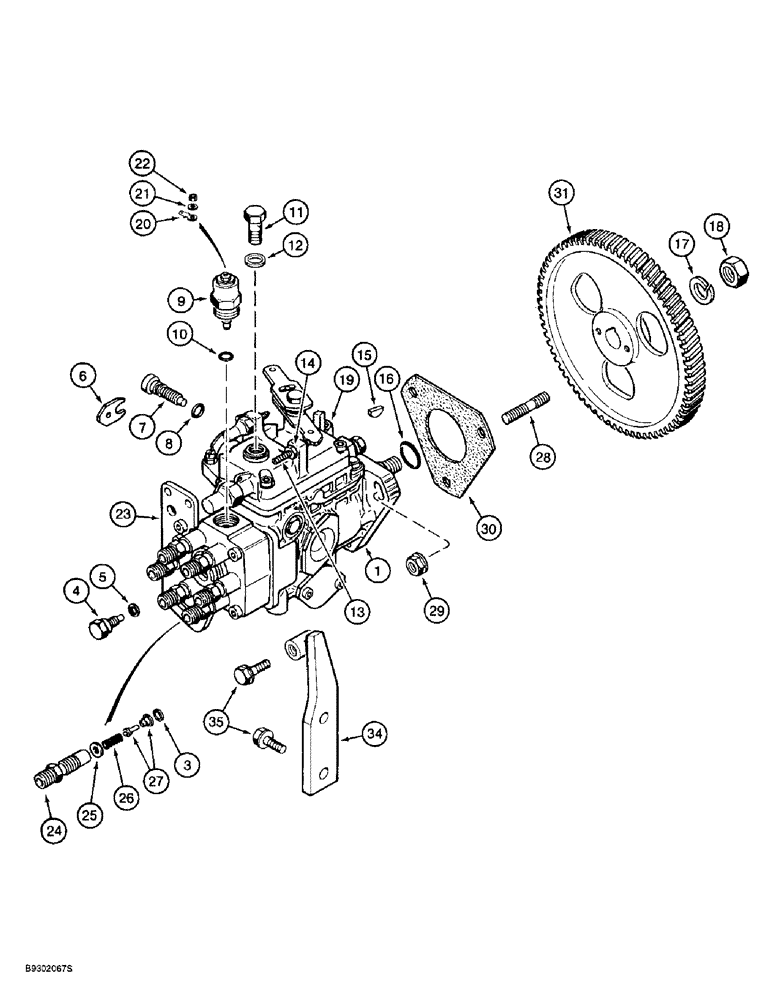

Запчасти Case 621B (3-12) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (03) - FUEL SYSTEM

1

J916946

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY new, Includes: Ref. 2 - 27

1шт.

1

JR916946

REMAN-INJECTION PUMP

Assembly fuel, component parts shown on this figure do not apply to the remanufactured assembly, for service order Ref. 1, J916946 pump assembly

1шт.

1

JC916946

CORE-INJECTION PUMP

Return Part Number

1шт.

JC917503

PUMP, FUEL INJECTION

PUMP, INJECTION Return Number, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

6шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

vent

1шт.

5

3053133R1

SEALING RING,M8 x 11.5 x 1

gasket, vent screw

1шт.

6

J904786

PLATE

timing lock

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

9

A77797

SOLENOID

shut down, 24 volt, Includes: Ref 10, 20, 21 and 22

1шт.

10

J903577

SEAL

solenoid

1шт.

11

J905465

BANJO BOLT

BOLT banjo, overflow

1шт.

12

J918191

PACKING RING

WASHER, overflow screw

1шт.

13

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

low idle stop

1шт.

14

J904783

NUT

low idle screw

1шт.

15

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332 key

1шт.

16

J920393

SEAL

shaft

1шт.

17

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Replaces 92-11056 washer

1шт.

18

J903738

NUT

14 mm-2.0

1шт.

19

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

tube

1шт.

20

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

D+ adapter Male

1шт.

21

J907481

WASHER

lock, special

1шт.

22

J907480

NUT

special

1шт.

23

J905697

SUPPORT

BRACKET pump

1шт.

24

J910794

FITTING

bypass delivery valve

6шт.

25

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special, used as shim

6шт.

26

J910796

SPRING

delivery valve

6шт.

27

J910795

BY-PASS VALVE

delivery

6шт.

28

J902501

STUD

STUD pump mounting, 8-1.25 x 48 mm

3шт.

29

J900589

NUT

8 mm

3шт.

30

J931607

GASKET

pump mounting, replaces J914389 gasket

1шт.

31

J931387

GEAR

pump drive, replaces J920594 gear

1шт.

34

J905313

LEVER

BRACE fuel pump

1шт.

35

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
