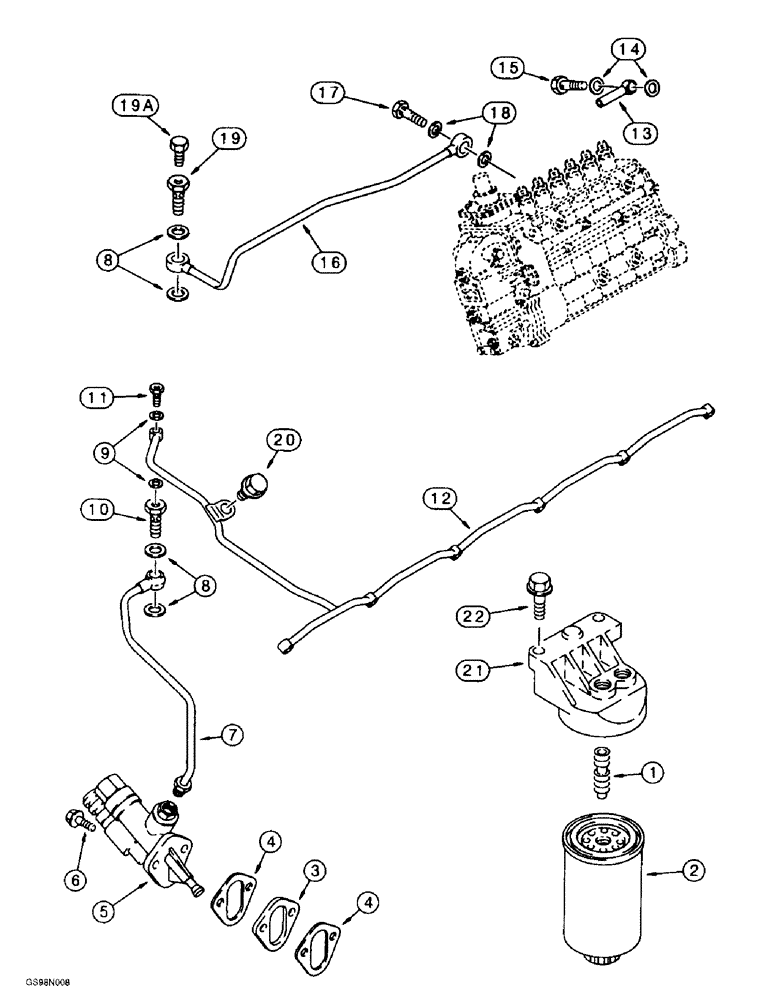

Запчасти Case 621B (3-11A) - FUEL FILTER AND LIFT PUMP, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (03) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

Fuel filter

1шт.

2

J843760

FILTER

fuel

1шт.

3

J914284

SPACER

fuel transfer pump mounting

1шт.

4

J931348

GASKET

mounting, fuel transfer pump

2шт.

5

J930134

PUMP

fuel transfer

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

supply, fuel pump to fuel filter

1шт.

8

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

4шт.

9

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

10

J916361

BANJO BOLT

banjo connector, 12-1.5 x 24 mm

1шт.

11

J924726

BANJO BOLT

check

1шт.

12

J926103

MANIFOLD

TUBE fuel

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR banjo, fuel return

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

15

J912886

VALVE

overflow

1шт.

16

J930735

FUEL TUBE,8 mm OD

supply, fuel

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

connector

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER, 14 x 20 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special, Includes: Ref. 19 and 19A

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT, connector, banjo hex, special

1шт.

19a

NSS

NOT SOLD SEPARAT

SCREW, hex, special, vent

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

21

J926788

HEAD

fuel filter

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.
