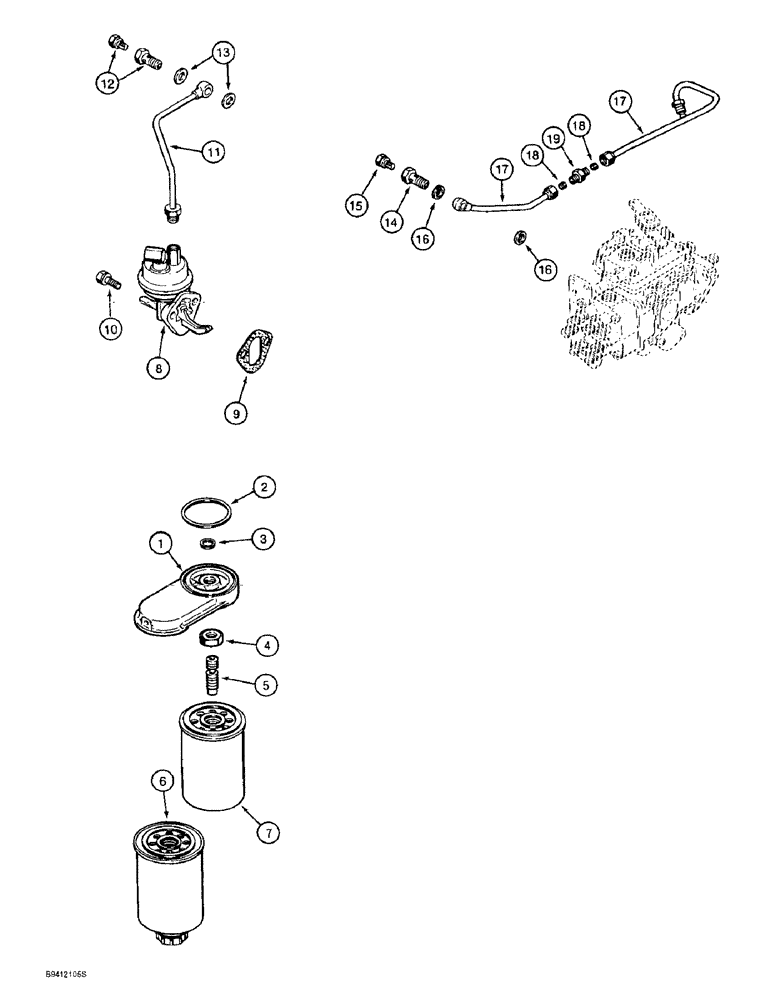

Запчасти Case 621B (3-10) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD fuel filter, replaces J915240 head

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING sealing, 70 mm ID

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING sealing, 14 mm ID

1шт.

4

J903293

JAM NUT

16 mm-2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

Fuel filter, replaces J903845 adapter

1шт.

6

J925274

FILTER, FUEL

primary, replaces J903410 filter

1шт.

7

J903640

FILTER, FUEL

secondary

1шт.

8

J928143

PUMP

lift, fuel, replaces J904374 pump

1шт.

9

J931059

GASKET

mounting, fuel transfer pump, replaces J923054 gasket

1шт.

10

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

fuel supply

1шт.

12

J903035

BANJO BOLT

12-1.5 x 24 mm

1шт.

13

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY banjo hex, special, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT, connector, special, banjo hex

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW, hex, special, vent

1шт.

16

J918191

PACKING RING

WASHER, 12 x 18 x 1 mm

2шт.

17

J918640

FUEL TUBE

TUBE fuel supply, two-piece, Includes: Ref. 18 and 19

1шт.

18

222-103

SLEEVE,5/16" Tube

2шт.

19

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER compression, 5/16 inch tube OD

1шт.
