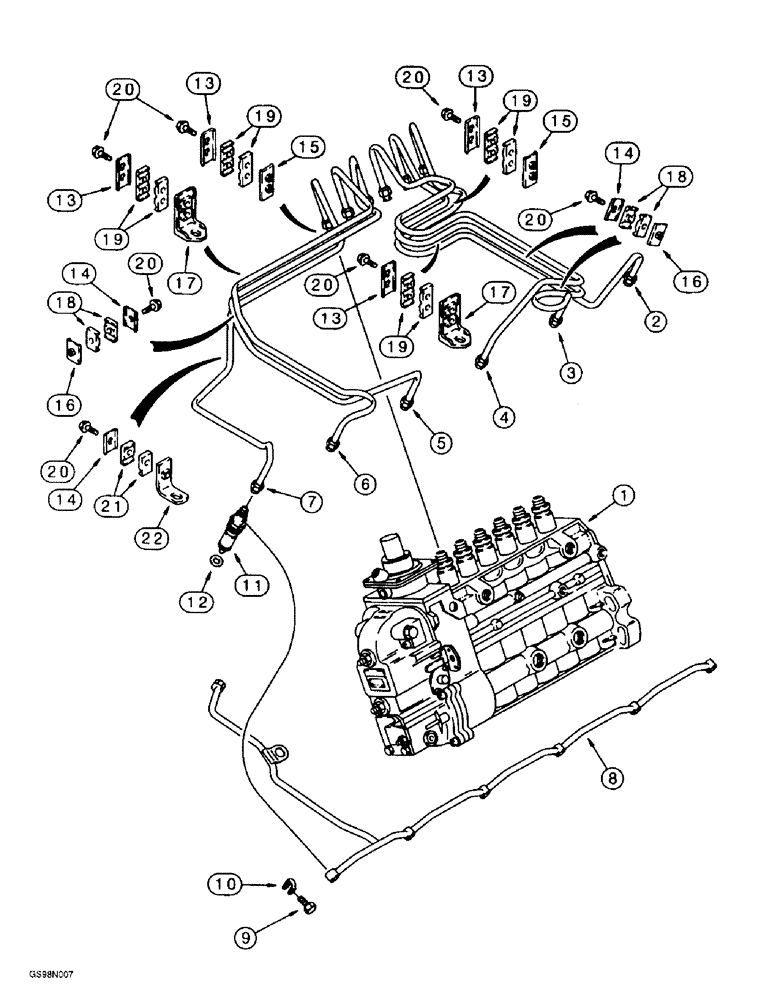

Запчасти Case 621B (3-09) - FUEL INJECTION SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (03) - FUEL SYSTEM
20
14
17
18
8
10
13
20
2
16
19
15
20
19
3
9
20
16
5
1
18
22
13
19
14
21
17
11
20
6
15
12
19
4
20
14
7
13
13
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
J929406
PUMP, FUEL INJECTION
PUMP, INJECTION ASSEMBLY new, See Figure 3-13A
1шт.
2
J929462
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 1 cylinder
1шт.
3
J929463
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 2 cylinder
1шт.
4
J929464
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 3 cylinder
1шт.
5
J929465
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 4 cylinder
1шт.
6
J929466
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 5 cylinder
1шт.
7
J932495
FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L
Fuel injector, No. 6 cylinder
1шт.
