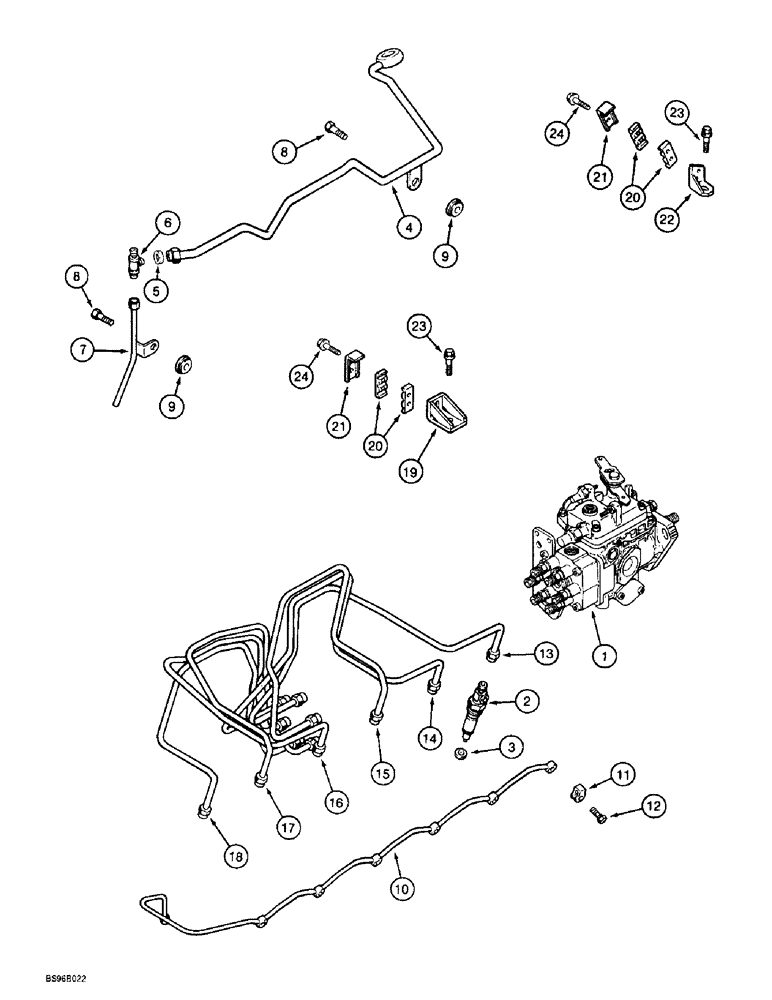

Запчасти Case 621B (3-08) - FUEL INJECTION SYSTEM, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (03) - FUEL SYSTEM

1

J916946

PUMP, FUEL INJECTION

PUMP, INJECTION ASSEMBLY, See Figure 3-12

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, See Figure 3-14

6шт.

3

J906659

SEAL

injector nozzle, 7 mm injector tip, See Figure 3-14, Ref. 3

6шт.

4

J920889

FUEL TUBE

fuel drain, pump to tee, replaces J905705 tube, Includes: Ref. 5

1шт.

Fuel tubes bolt to tappet cover, see Figure 2-37A, Ref. 22.

1шт.

5

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

6

222-121

TEE,3/16", Flex Tubing

Remove and discard hex nuts and sleeves at assembly

1шт.

7

J905692

FUEL TUBE

fuel return, tee to fuel tank return

1шт.

Fuel tubes bolt to tappet cover, see Figure 2-37A, Ref. 22.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

9

J928759

SEALING WASHER

cover bolt, replaces J900267

2шт.

10

J909696

TUBE

TUBE manifold, fuel drain

1шт.

11

J903380

SEAL

connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

6шт.

13

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

fuel injector, cylinder number 1

1шт.

14

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

fuel injector, cylinder number 2

1шт.

15

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

fuel injector, cylinder number 3

1шт.

16

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

fuel injector, cylinder number 4

1шт.

17

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

fuel injector, cylinder number 5

1шт.

18

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

fuel injector, cylinder number 6

1шт.

19

J917777

BRACE

fuel tube

2шт.

20

J917747

CLAMP

fuel tube

6шт.

21

J904519

SUPPORT

BRACE tube retaining

3шт.

22

J917778

BRACE

fuel tube

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

3шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.
