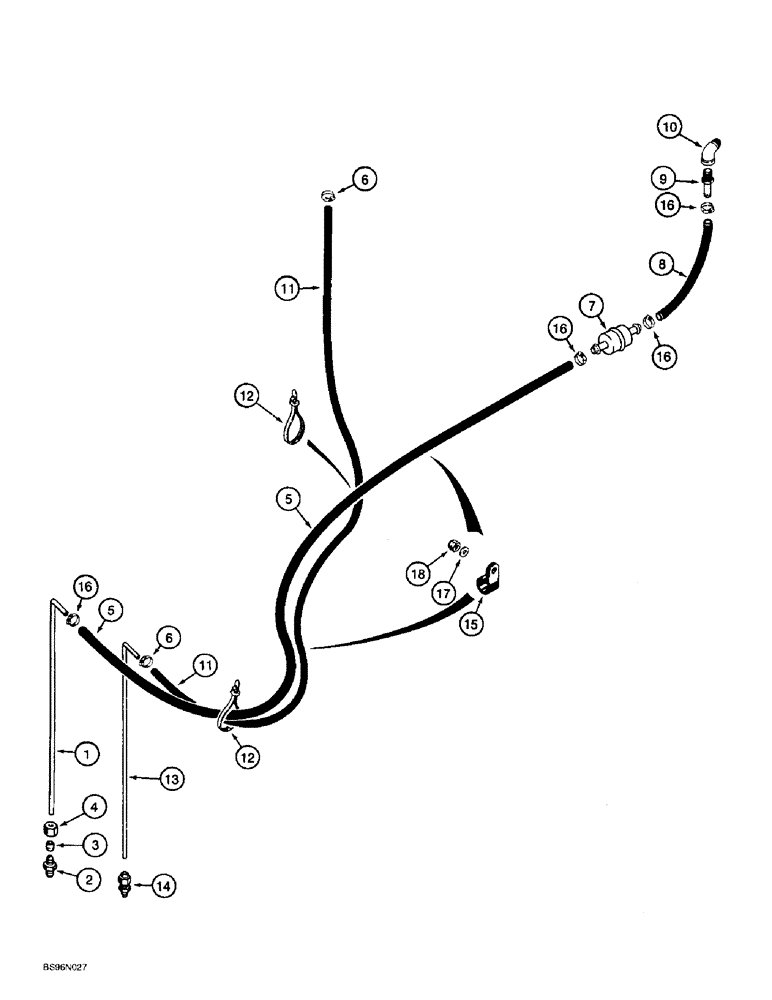

Запчасти Case 621B (3-05C) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0053350 AND AFTER (03) - FUEL SYSTEM

1

248051A1

FUEL TUBE,12.7 mm OD, 478, 46 mm Length

TUBE Fuel supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

Compression, 1/2 Tube OD x 1/2 PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, adapter

1шт.

3

222-656

SLEEVE

1/2 Tube OD

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 Tube OD x 11/16-20

1шт.

5

226615A1

FUEL HOSE

1422 mm (56 in) Long, Cut From 32-80 Bulk Hose, Tank To In-line Filter

1шт.

6

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

7

194199A1

FUEL FILTER

fuel, in-line

1шт.

8

226084A1

HOSE, BULK

HOSE, METERS 127 mm (5 in) long, Cut From 32-80 Bulk Hose

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Adapter

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

11

226616A1

FUEL HOSE

1067 mm (42 in) Long, Cut From 31-2855 Bulk Hose, Fuel Return

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

13

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE fuel return

1шт.

14

L125532

FITTING

ADAPTER Compression, Component Parts Not Serviced Separately

1шт.

15

299615C1

CLAMP

5/8 inch ID, large

2шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

17

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

2шт.

18

231-1406

LOCK NUT,3/8"-16, GB

2шт.

32-80

HOSE

Bulk, 13 (1/2) ID x 6096 mm (240 in) Long

1шт.

31-2855

HOSE

Bulk, 18 (5/16) ID x 6096 mm (240 in) Long

1шт.
