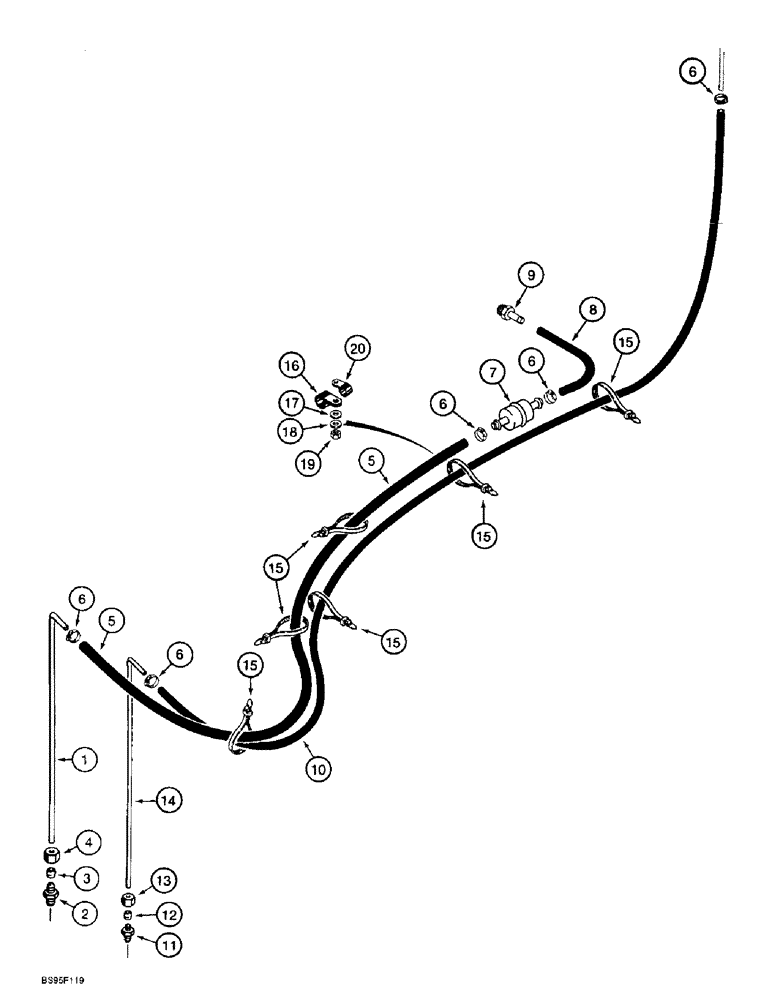

Запчасти Case 621B (3-05A) - FUEL LINES AND IN-LINE FUEL FILTER, P.I.N. JEE0041186 THROUGH JEE0053349 (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

fuel

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 Tube OD x 1/2 PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

3/8 Tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

3/8 Tube OD x 9/16-24

1шт.

5

31-2940

FUEL HOSE

1422 mm (56 in) Long, Cut From 32-12X Bulk Hose, Tank To In-line Filter, Replaces 31-2280

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

7

D139225

FILTER, FUEL

in-line

1шт.

8

32-204

HOSE

178 mm (7 in) Long, Cut From 32-12X Bulk Hose, In-Line Fuel Filter to Fuel Lift and Transfer Pump, Replaces 31-1659

1шт.

9

220-3

FITTING

ADAPTER, 3/8 barb x 1/3 PT

1шт.

10

L124347

FUEL HOSE

2000 mm (78-3/4 in), Fuel Return

1шт.

L112236

CONNECTOR, ELEC

CONNECTOR Compression, straight, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

13

222-111

TUBE NUT,7/16" - 24

3/16 Tube OD x 7/16-24

1шт.

14

L119110

FUEL TUBE,4.75 mm OD x 478, 46 mm L

fuel return

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

6шт.

16

299615C1

CLAMP

P-type, 5/8 inch ID

3шт.

17

S95569

WASHER

1/2 inch

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

20

515-25111

CLAMP,7/16", Insul, 1/2" Bolt

P-type

2шт.

32-12X

LARGE HOSE

HOSE,LARGE Bulk, 10 (3/8) ID x 6096 mm (240 in) long

1шт.
