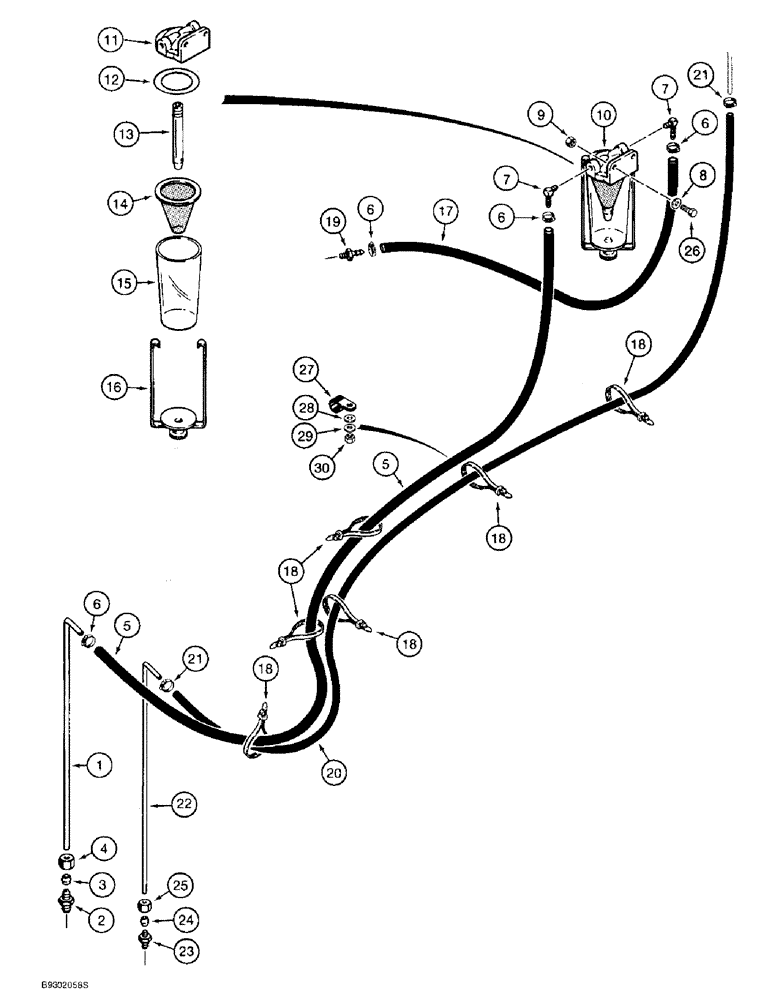

Запчасти Case 621B (3-04) - FUEL LINES AND SEDIMENT BOWL, PRIOR TO P.I.N. JEE0041186 (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

fuel

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

Compression, 1/2 tube OD x 1/2 PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

3/8 in Tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

3/8 tube OD x 9/16-24 in

1шт.

5

850569C1

HOSE,0.38" ID x 77.00", SAE30R2 Type 1

Cut From 364357C2 Bulk Hose, Tank To Strainer

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

90, 3/8 barb x 1/4 PT

2шт.

8

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64

2шт.

9

231-1444

NUT,1/4"-20, GB

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY sediment, fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY sediment bowl

1шт.

12

370520R1

GASKET

Replaces R21357

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

TUBE sediment bowl

1шт.

14

370784R91

FILTER SCREEN

Replaces R21359

1шт.

15

R21361

BOWL

sediment

1шт.

16

370785R91

CLAMP

RETAINER Sediment Bowl, Replaces R21358

1шт.

17

178968C2

HOSE,0.38" ID x 12.50", SAE 30R2 TYPE1, CLASS 1

Cut From 364357C1 Bulk Hose, Strainer To Pump

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

19

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

ADAPTER, 3/8 barb x 1/4 PT

1шт.

20

L124347

FUEL HOSE

2000 mm (78-3/4 in) Long, Fuel Return

1шт.

21

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

22

L119110

FUEL TUBE,4.75 mm OD x 478, 46 mm L

fuel return

1шт.

L112236

CONNECTOR, ELEC

CONNECTOR compression, straight, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

BODY connector

1шт.

24

222-101

SLEEVE,3/16" Tube

3/16 inch tube OD

1шт.

25

222-111

TUBE NUT,7/16" - 24

3/16 Tube OD x 7/16-24 in

1шт.

26

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

BOLT, 1/4 x 1-1/4

2шт.

27

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Replaces 299615C1

1шт.

28

S95569

WASHER

1/2 inch

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

30

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

364357C2

HOSE,9.53mm ID x 304.8mm L, SAE 30R7

Bulk, 10 (3/8) ID x 15240 mm (600 in) Long, Replaces 364357C1

1шт.
