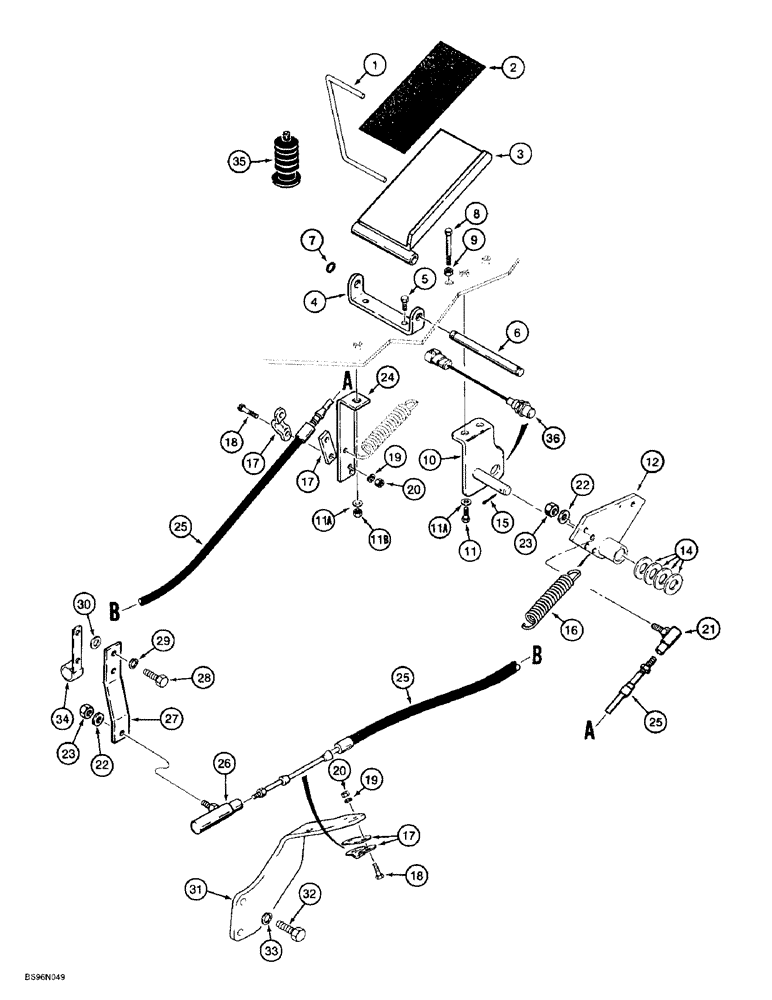

Запчасти Case 621B (3-03) - FOOT THROTTLE CONTROL, P.I.N. JEE0053350 AND AFTER (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
1339978C1
STEM
Rod, accelerator, foot, Serial Range: pedal-bellcrank
1шт.
2
L71193
ANTI-SKID STRIP
non-skid, 3-1/2 x 8-51/64 inch
1шт.
3
1969946C1
PEDAL
accelerator
1шт.
4
1969948C1
SUPPORT
MOUNT accelerator pedal
1шт.
5
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
2шт.
6
1969947C1
ROD
ROD pivot, pedal
1шт.
7
100-1137
SNAP RING,#37, Ext
Rod
2шт.
8
113-2286
BOLT,Hex, 3/8" - 16 x 4", Gr 5
1шт.
9
425-106
NUT,3/8"-16, Cl 5
1шт.
10
113828A2
BRACKET
accelerator bellcrank
1шт.
11
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
2шт.
11a
492-11038
LOCK WASHER,3/8"
3шт.
11b
425-106
NUT,3/8"-16, Cl 5
1шт.
12
241728A1
LEVER
accelerator pivot
1шт.
13
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
14
495-81176
WASHER,21/32" x 1" x .060"
21/32 x 1 x 3/64 inch
4шт.
15
432-820
COTTER PIN,1/8" x 1 1/4"
1шт.
16
L106237
SPRING
accelerator return
1шт.
17
L12441
CLAMP
two-piece, includes both halves
2шт.
18
463-11012
SCREW,Hex Hd, #10-24 x 3/4"
No. 10 NC x 3/4 inch
4шт.
19
492-11010
LOCK WASHER,#10
4шт.
20
225-14110
NUT,#10-24
4шт.
21
A76747
BALL JOINT,#10 -32 x 7/8" L
ball, at cab
1шт.
22
495-31025
WASHER,3/16"
flat, 1/4 x 9/16 x 3/64 inch
2шт.
23
131-63
LOCK NUT,1/4"-28, G8
2шт.
24
L127151
SUPPORT
BRACKET mounting
1шт.
25
133118A1
CABLE,2050mm L
accelerator, with boot
1шт.
26
1974525C2
BALL JOINT
at engine
1шт.
27
L125821
LEVER
BAR support
1шт.
28
614-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
2шт.
29
892-11006
LOCK WASHER,M6
2шт.
30
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
2шт.
31
247805A1
BRACKET
cable mounting, at engine
1шт.
32
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
33
892-11010
LOCK WASHER,M10
2шт.
34
49833
CLAMP
P-type, see page 2-37, item 33
1шт.
35
113833A1
BOOT
rubber, accelerator pedal rod, see Figure 9-058, Ref. 35, for accelerator pedal rod boot used on cab models only.
1шт.
36
241956A1
SWITCH
proximity, autoshift
1шт.
Выбрано товаров: 38
