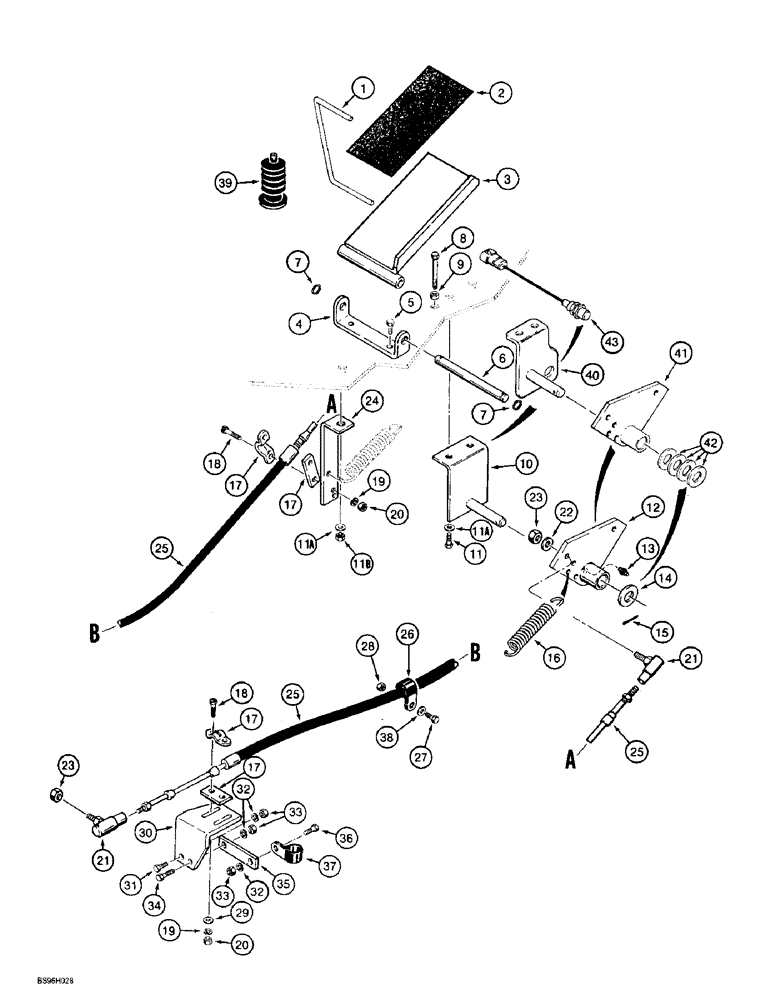

Запчасти Case 621B (3-02) - FOOT THROTTLE CONTROL, PRIOR TO P.I.N. JEE0053350 (03) - FUEL SYSTEM

1

1339978C1

STEM

Rod, Accelerator, Foot Pedal To Bellcrank

1шт.

2

L71193

ANTI-SKID STRIP

Order one of the following and cut to length: H360131, 1117 mm (44 inch) or L48674, 241.3 mm (9.5 inch) and, Serial Range: cut-length.

1шт.

3

1969946C1

PEDAL

accelerator

1шт.

4

1969948C1

SUPPORT

MOUNT accelerator pedal

1шт.

5

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

6

1969947C1

ROD

ROD pivot, pedal

1шт.

7

100-1137

SNAP RING,#37, Ext

Rod

2шт.

8

113-2286

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

113828A1

BRACKET

Accelerator Bellcrank, No Longer Available, Order 113828A2 Bracket, Ref 40

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

11a

492-11038

LOCK WASHER,3/8"

3шт.

11b

425-106

NUT,3/8"-16, Cl 5

1шт.

12

1339981C2

LEVER ASSY.

Accelerator Pivot, Serial Range: -JEE0052701

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

495-81176

WASHER,21/32" x 1" x .060"

21/32 x 1 x 3/64, Used With Ref. 12, 1339981C2 Lever

1шт.

15

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

16

L106237

SPRING

accelerator return

1шт.

17

L12441

CLAMP

two piece, includes both halves

2шт.

18

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

No. 10 x 3/4

4шт.

19

492-11010

LOCK WASHER,#10

4шт.

20

225-14110

NUT,#10-24

4шт.

21

A76747

BALL JOINT,#10 -32 x 7/8" L

ball

2шт.

22

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

1шт.

23

131-63

LOCK NUT,1/4"-28, G8

1шт.

24

L127151

SUPPORT

BRACKET mounting

1шт.

25

L124346

CABLE ASSY.,2180mm L

accelerator

1шт.

26

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

27

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

28

231-1446

NUT,3/8" - 16, Gr 5

1шт.

29

495-31025

WASHER,3/16"

1/4 x 9/16 x 3/64

2шт.

30

L124502

SUPPORT

BRACKET mounting, cable at engine

1шт.

31

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1шт.

32

492-11025

LOCK WASHER,1/4"

3шт.

33

425-104

NUT,1/4"-20, Cl 5

3шт.

34

426-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 8

BOLT, 1/4 x 1-1/4

1шт.

35

L129728

BAR

bracket mounting

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

37

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

P-type, See Figure 2-37A, Ref. 40

1шт.

38

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

39

113833A1

BOOT

See Figure 9-058, Ref. 35, For Accelerator Pedal Rod Booth Used on Cab Models Only

1шт.

40

113828A2

BRACKET

accelerator bellcrank

1шт.

41

241728A1

LEVER

Accelerator Pivot JEE0052701 to

1шт.

42

495-81176

WASHER,21/32" x 1" x .060"

21/32 x 1 x 3/64, Used With 241728A1 Lever, Ref. 41

4шт.

43

241956A1

SWITCH

Proximity, Autoshift JEE0052701 to

1шт.
