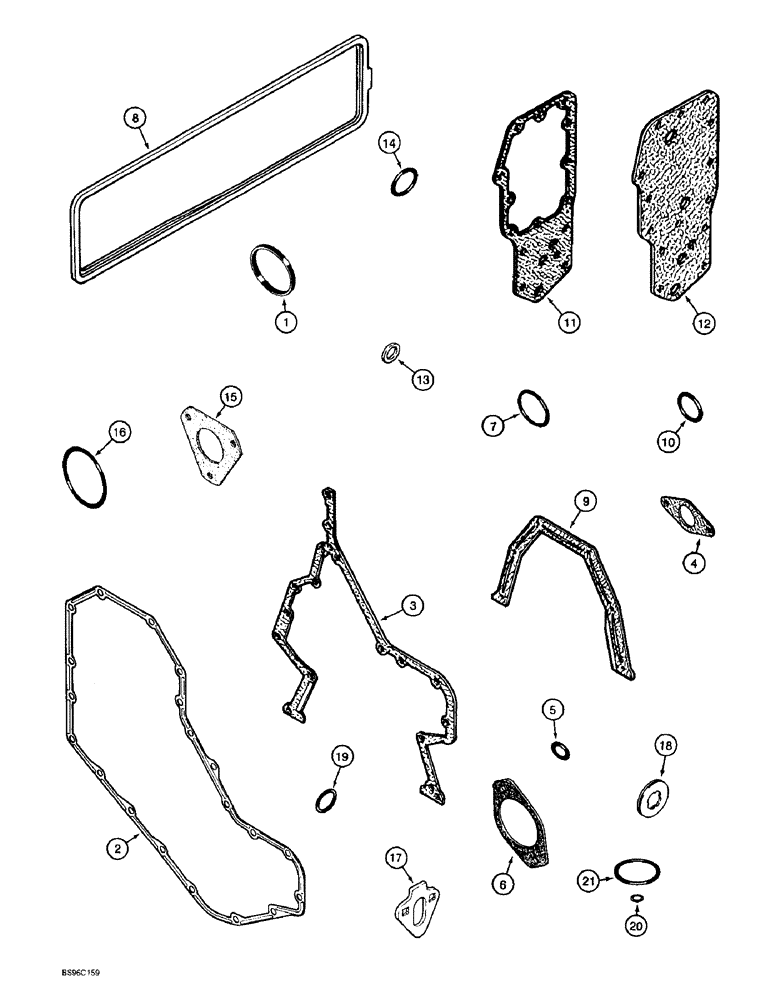

Запчасти Case 621B (2-48) - GASKET KIT, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350, CYLINDER BLOCK (02) - ENGINE

A77861

GASKET KIT

Cylinder Block, Includes: Ref. 1 - 21, Replaces A77674

1шт.

For complete engine overhaul, order (1) each of valve grind kit, Figure 2-44, cylinder block kit, oil pan kit, Figure 2-26, front and rear crankshaft seal kit, Figure 2-38 and required cylinder head gasket, Figure 2-28

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J914385

GASKET,1.02mm Thk

front cover

1шт.

3

J931351

GASKET

Gear Housing, Replaces J916131

1шт.

4

J905595

GASKET

timing pin housing

1шт.

5

J913994

O-RING

sealing

1шт.

6

J931608

GASKET

Access Cover Plate, Replaces J919601

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

8

J928832

GASKET

Tappet Cover, Replaces J907617 Gasket

1шт.

9

J928493

GASKET

Rear Cover Retainer, Replaces J914386 Gasket

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

11

J942914

GASKET

Oil Cooler core, Replaces J926760

1шт.

12

J929792

GASKET,1.2mm Thk

Filter Head, Replaces J918257

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

plug

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING Engine Oil Fill, Not Used In This Application

1шт.

15

J931607

GASKET

Pump Mounting, Replaces J914389

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Flywheel Housing To Block

1шт.

17

J931059

GASKET

Fuel Transfer Pump, Replaces J923054 and J914304

6шт.

18

J928759

SEALING WASHER

Cover Bolt, Push Rod, Replaces J900267

1шт.

19

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

20

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING 14 mm ID

1шт.

21

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING 70 mm ID

1шт.
