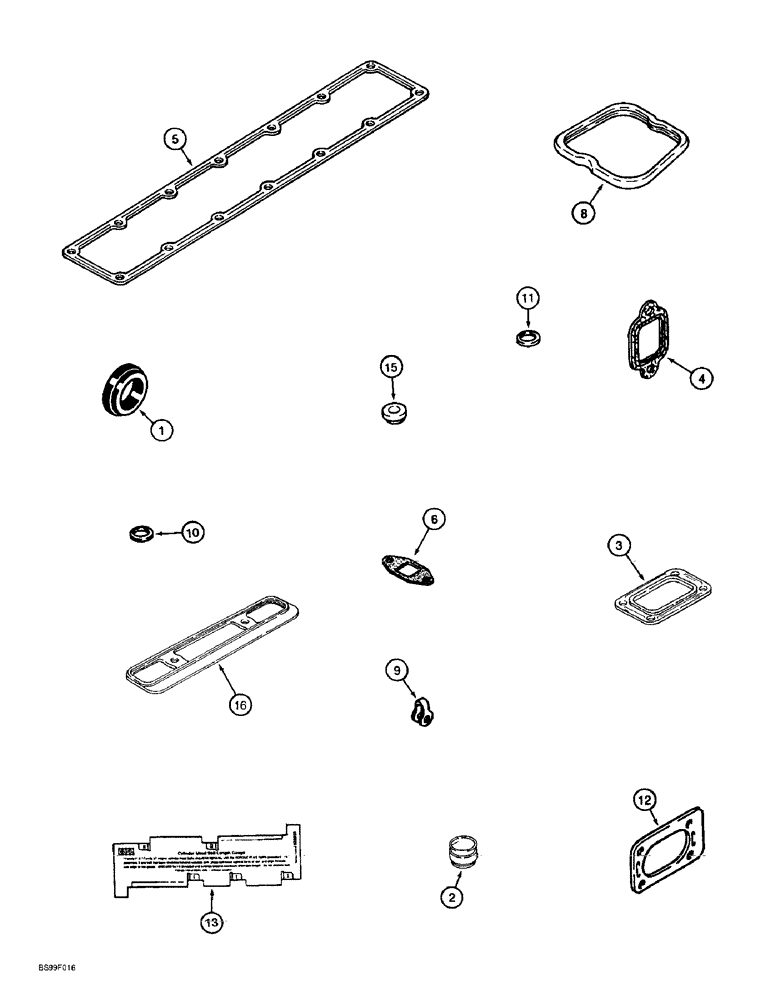

Запчасти Case 621B (2-46) - GASKET KIT, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER, VALVE GRIND (02) - ENGINE

A77871

SEAL PACKAGE

KIT valve grind, Includes: Ref. 1 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 6, on Figure 2-29A.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J921640

SEAL

Valve, Replaces J901097

12шт.

3

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

5

J931347

GASKET

Intake Manifold Cover, Replaces J914029

1шт.

6

J931350

GASKET

turbo oil drain tube

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill Tube, Not Used In This Application

1шт.

8

J930906

GASKET

SEAL rocker arm cover

6шт.

9

J903380

SEAL

connector, return manifold

6шт.

10

J906659

SEAL

7 mm injector tip

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

6шт.

12

J914856

GASKET,1.02mm Thk

Air Crossover Connection, Not Used In This Application

1шт.

13

J823921

GAUGE

Cylinder Head, Bolt Length

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise, Rocker Arm Cover, Replaces J928406

6шт.

16

J930426

GASKET

Air Crossover Connection, Not Used In This Application

1шт.
