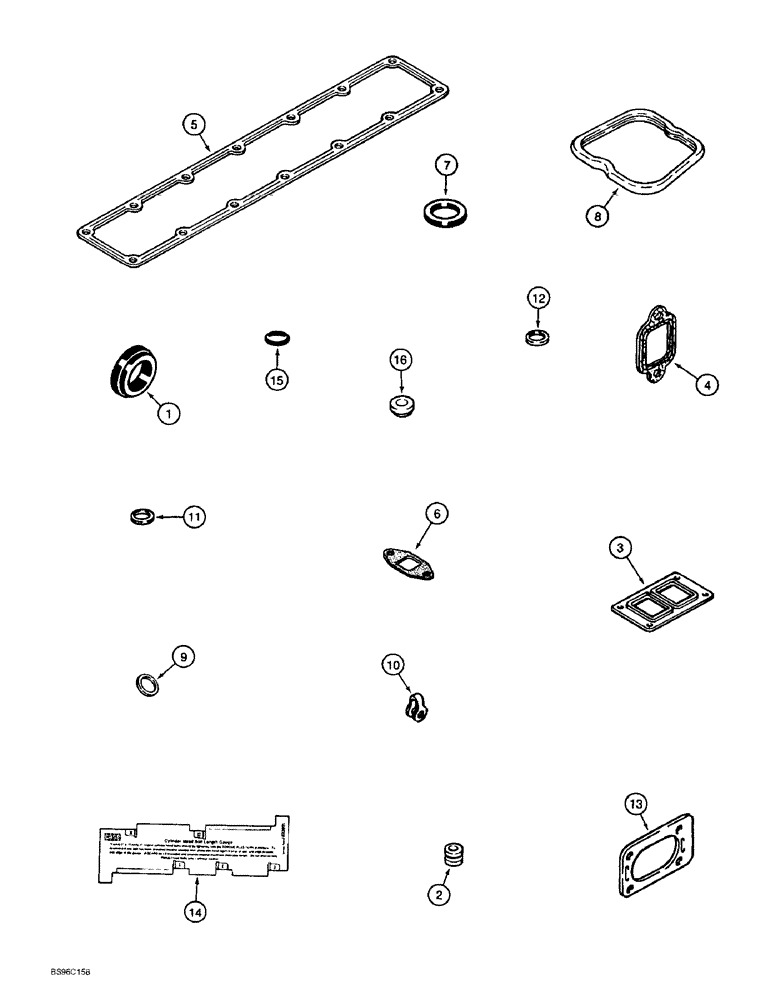

Запчасти Case 621B (2-44) - GASKET KITS, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350, VALVE GRIND (02) - ENGINE

A77859

GASKET KIT

Valve Grind, Includes: Ref. 1 - 16

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 6, on Figure 02-28.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J901097

SEAL

intake and exhaust valve

12шт.

3

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

5

J931347

GASKET

Intake Manifold Cover, Replaces J914029

1шт.

6

J928919

GASKET

Turbo Oil Drain Tube, Replaces J914388

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

Oil Fill Cap, Not Used In This Application

1шт.

8

J930906

GASKET

SEAL Rocker Arm Cover, Replaces J902666 and J929795

6шт.

9

J900808

SEAL

Injector Nozzle, 9 mm Injector Tip, Not Used In This Application

6шт.

10

J903380

SEAL

connector, return manifold

6шт.

11

J906659

SEAL

7 mm injector tip

6шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING, Serial Range: body-nut

6шт.

13

J914856

GASKET,1.02mm Thk

Air Crossover Connection, Not Used In This Application

1шт.

14

J823921

GAUGE

Cylinder Head, Bolt Length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt, rocker arm

6шт.

16

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise, Rocker Arm Cover, Replaces J928406

6шт.
