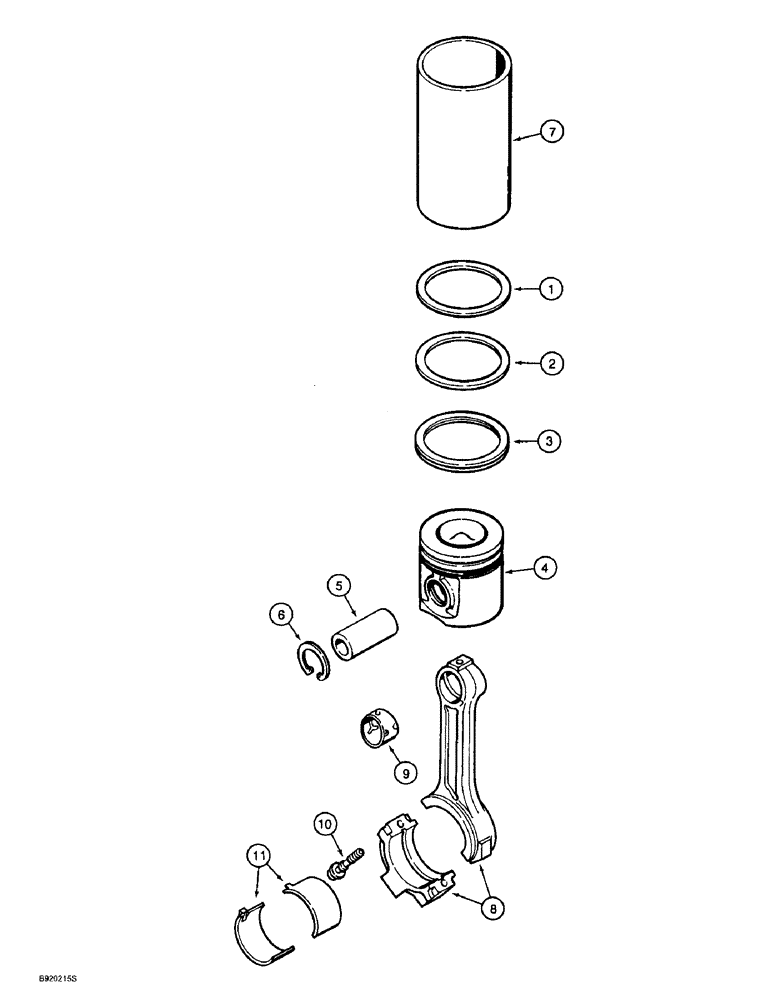

Запчасти Case 621B (2-42) - PISTONS AND CONNECTING RODS, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

A77730

PISTON,104MM PISTON DIAMETER

KIT, standard, Includes: Ref. 1 - 6

6шт.

A77727

PISTON RING SET

KIT standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 8816

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap, pins, pistons

2шт.

A77731

PISTON & RINGS KIT

KIT, 0.5 mm oversize, Includes: Ref. 1 - 6

6шт.

A77728

PISTON RING SET

KIT, 0.5 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 8816

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap, pin, pistons

2шт.

A77732

PISTON

KIT, 1.0 mm oversize, Includes: Ref. 1 - 6

6шт.

A77729

PISTON RING SET

KIT, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize, stamped 8816

1шт.

5

J901793

PISTON PIN

1шт.

6

J901706

RING

snap, pin, pistons

2шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair (when liner is installed, use A77730 standard piston kit)

1шт.

8

J942581

ROD, CONNECTING

ASSEMBLY new

1шт.

JR942581

REMAN-CONNECTING ROD

Assembly, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR901569 rod assembly

1шт.

JC942581

CORE-ROD CONNECTING

Return Number

1шт.

84145405R

REMAN-CONNECTING ROD

621B PRIOR TO LOADER P.I.N. JEE0053350 (3/93-12/98), Reman For New PN J942581

1шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

J925232

ROD, CONNECTING

ASSEMBLY new, replaces J901569 rod assembly, Includes: Ref. 8 - 10

6шт.

JC925232

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return connecting rod for credit when using a remanufactured assembly

6шт.

84145405R

REMAN-CONNECTING ROD

621B PRIOR TO LOADER P.I.N. JEE0053350 (3/93-12/98), Reman For New P/N J925232

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

9

J901085

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT upper and lower set, standard

6шт.

11

A77466

BEARING SET

KIT upper and lower set, 0.25 mm oversize

6шт.

11

A77467

BEARING LINER

KIT upper and lower set, 0.50 mm oversize

6шт.

11

A77469

BEARING SET

KIT upper and lower set, 1.00 mm oversize

6шт.

11

A77468

BEARING SET

KIT upper and lower set, 0.75 mm oversize

6шт.
