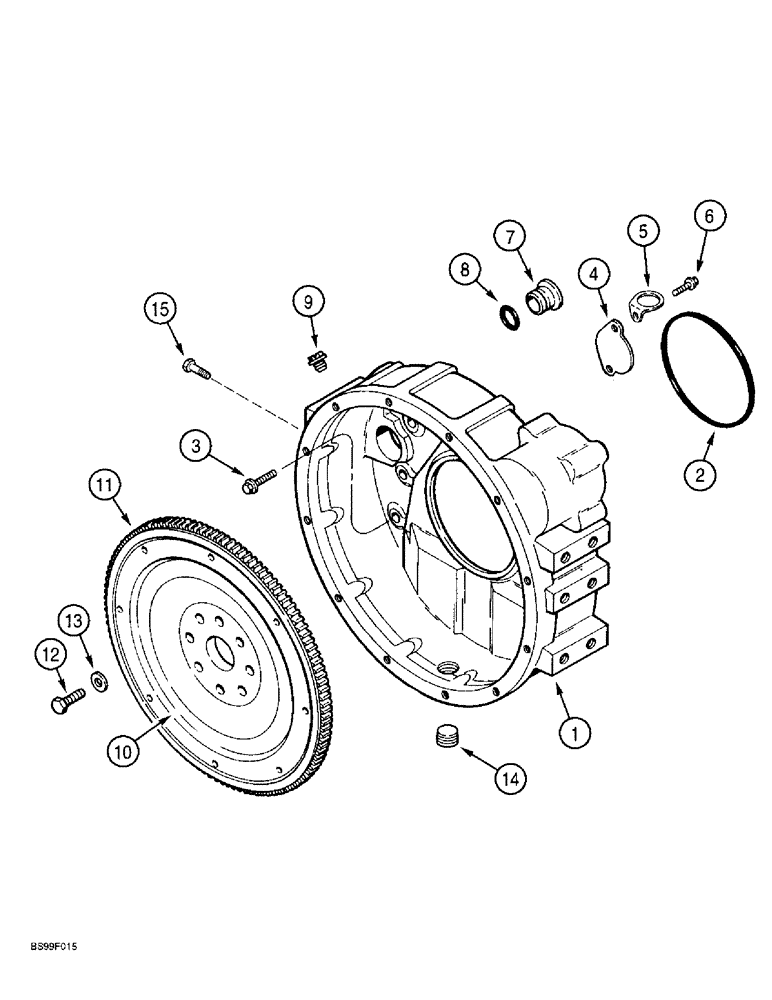

Запчасти Case 621B (2-41A) - FLYWHEEL AND HOUSING, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

1

J931627

HOUSING

flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

cover

1шт.

5

J928989

CLIP

retaining, breather hose

1шт.

6

J912072

SELF-TAP SCREW

8-1.25 x 15 mm

2шт.

7

J910248

PLUG

flywheel housing

1шт.

8

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

9

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

10

J918946

FLYWHEEL

ASSEMBLY engine, Includes: Ref. 11

1шт.

11

J905427

GEAR

ring, flywheel

1шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flywheel bolt

8шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

15

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.
