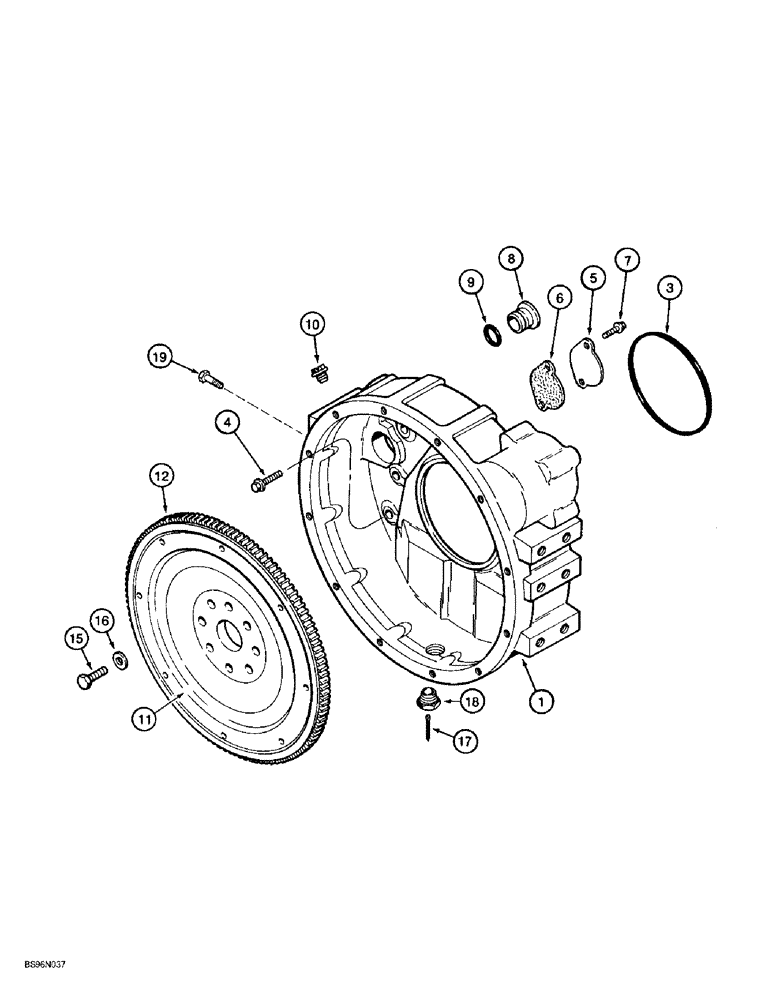

Запчасти Case 621B (2-40) - FLYWHEEL AND HOUSING, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

1

J931627

HOUSING

flywheel, replaces J903282 housing

1шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

4

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

5

J925234

PLATE

cover, replaces J908095 plate

1шт.

6

J908096

GASKET

cover plate

1шт.

7

J912072

SELF-TAP SCREW

8-1.25 x 15 mm, replaces J902735 screw

2шт.

8

J910248

PLUG

flywheel housing

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

10

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

11

J918946

FLYWHEEL

ASSEMBLY, Includes: Ref. 12

1шт.

12

J905427

GEAR

Ring, flywheel

1шт.

15

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

16

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt

8шт.

17

432-1416

COTTER PIN,7/32" x 1"

7/32" x 1"

1шт.

18

L113178

PLUG

BUSHING reducer, 3/4 inch PT

1шт.

19

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

1шт.
