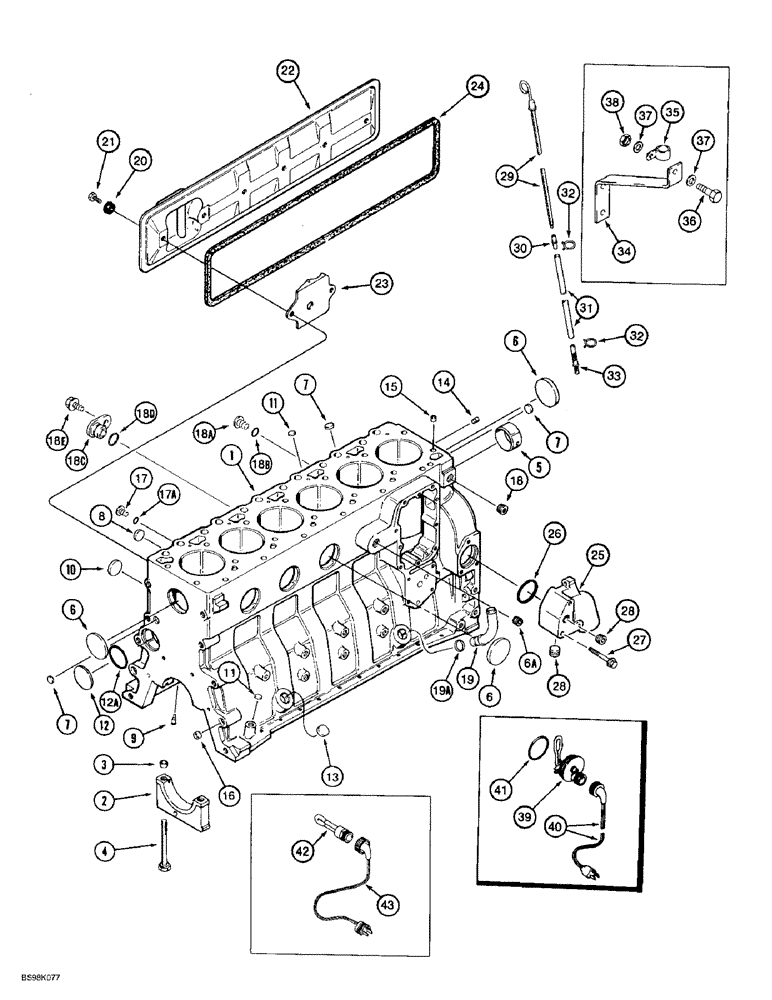

Запчасти Case 621B (2-37E) - CYL. BLOCK, 6T-590 EMISSIONS CERT. ENG., LOADER P.I.N. JEE0053350 & AFTER, ENG. S/N 45534441 & AFTER (02) - ENGINE

186309A2

ENGINE ASSEMBLY

ENGINE ASSY 6T-590 emissions certified, complete, For Service Order 246148A2 Basic Engine, Below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

246148A2

BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Crank Pulley, Turbocharger and Belt Tensioner; See Note

1шт.

47465952R

REMAN-BASIC ENGINE

With Three Hole Fuel Injection Pump Mounting. Assembly basic, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

47465952C

CORE-BASIC ENGINE

Return Part Number, use this part number to return core for credit when using a remanufactured assembly

1шт.

246148A2R

REMAN-BASIC ENGINE

With Four Hole Fuel Injection Pump Mounting. Assembly basic, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

246148A2C

CORE-BASIC ENGINE

Return Number

1шт.

JR933645

REMAN-SHORT ENGINE

Block Assembly short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

AC77761

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

J933645

SKELETON ENGINE

Short Block ASSEMBLY, Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, and Ref. 2 - 8

1шт.

1

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

2

J903492

BEARING CAP

CAP main, Includes: Ref. 3

7шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main bearing cap, Special

14шт.

5

REF

INSTRUCTION

BUSHING camshaft, front, see Figure 2-33A, Ref. 6

1шт.

6

A77782

PLUG

expansion, 58 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

J933220

PACKAGE,SERVICE

KIT block hardware, Includes: Ref. 9 - 17A

1шт.

9

J930139

NOZZLE CAP

piston cooling

6шт.

9a

A77505

PLUG

3/4 inch PT

1шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING, 57 mm ID

1шт.

13

J920706

PLUG

expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm long, locating

2шт.

15

J902343

DOWEL

RING, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING 18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Includes: Ref. 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

18a

J678921

PLUG

hex socket, 14 mm, Includes: Ref. 18B

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing

1шт.

18c

J932296

PLUG

Timing sensor hole, Includes: Ref. 18D

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing

1шт.

18e

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING, 18 mm ID

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

22

J927913

COVER

tappet

1шт.

23

J907586

BAFFLE

tappet cover, use with J823494 SEALANT below

1шт.

24

J928832

GASKET

tappet cover

1шт.

25

J934878

MANIFOLD

Water Inlet, Replaces J903103

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

28

A77429

PLUG

1/2 inch PT

2шт.

29

J914923

DIPSTICK,678.8mm L

oil

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

END oil dipstick tube

1шт.

31

J280812

TUBE

oil dipstick, one piece

1шт.

32

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

33

J905127

TUBE,9.52 mm OD x 180 mm L

dipstick, installed in cylinder block

2шт.

34

247726A1

SUPPORT

BRACKET oil dipstick, Not included with the Engine, must be purchased separately

1шт.

35

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

P-type, Not included with the Engine, must be purchased separately, dipstick bracket

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

Not included with the Engine, Must be purchased separately, Dipstick bracket

1шт.

37

495-11028

WASHER,1/4", SAE

Not included with the Engine, must be purchased separately, dipstick bracket

2шт.

38

425-104

NUT,1/4"-20, Cl 5

Not included with the Engine, must be purchased separately, dipstick bracket

1шт.

196803A1

KIT

engine block heater, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

40

196466A1

ELECTRIC CABLE

engine block heater

1шт.

41

J910517

O-RING

heater sealing

1шт.

309651A1

KIT

engine block heater, Includes: Ref. 42 and 43

1шт.

42

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

43

196466A1

ELECTRIC CABLE

engine block heater

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/Sealer, 3 oz. tube

1шт.
