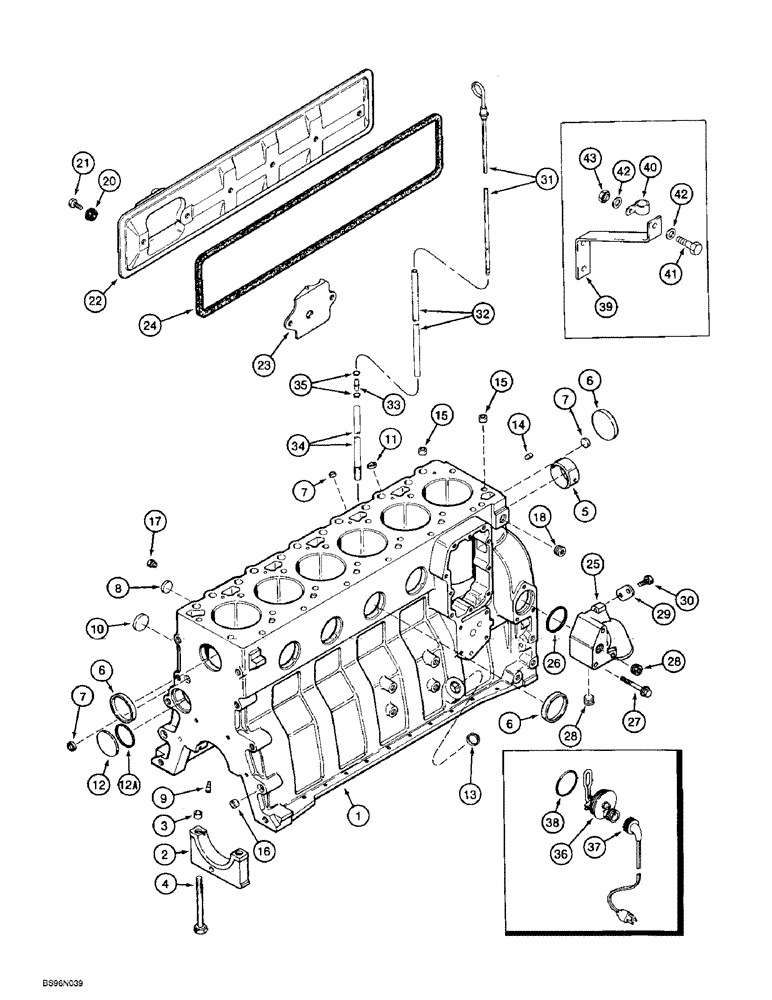

Запчасти Case 621B (2-37A) - CYL. BLOCK, 6T-590 EMISSIONS CERT. ENG, LOADER P.I.N. JEE0053350 & AFTER, PRIOR TO ENG. S/N 45534441 (02) - ENGINE

186309A1

ENGINE ASSEMBLY

ENGINE ASSY Complete, For Service Order 246148A1 Basic Engine Below

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover.

1шт.

246148A1R

ENGINE, EXCHANGE

With Four Hole Fuel Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

246148A1C

CORE-ENGINE

Return Number

1шт.

47465952R

REMAN-BASIC ENGINE

With Three Hole Fuel Injection Pump Mounting. Assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47465952C

CORE-BASIC ENGINE

Return Number

1шт.

246148A1

BASIC ENGINE

ASSEMBLY, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Crank Pulley, Turbocharger and Belt Tensioner

1шт.

1

AR77867

ENGINE

BLOCK ASSEMBLY short, includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings and Fittings

1шт.

1

AC77867

ENGINE ASSEMBLY

Return Number

1шт.

1

A77867

MOTOR

BLOCK ASSEMBLY short, new, includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, No Longer Availabe, Order J933645 on Figure 2-37E and (2) 250838A2 Connectors, Includes: Ref. 2 - 18

1шт.

250838A2 is used for adapting the oil pressure switch to the new cylinder block

1шт.

2

J903492

BEARING CAP

CAP, Includes: Ref. 3, Replaces J900967

7шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING, See Figure 2-33A, Ref. 6

1шт.

6

A77782

PLUG

expansion, 58 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

9

J930139

NOZZLE CAP

piston cooling

6шт.

9a

A77505

PLUG

3/4 inch PT

1шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING, 57 mm ID

1шт.

13

J920706

PLUG

22 mm OD, Not Used In This Application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

1/8 inch PT

2шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J927913

COVER

Tappet

1шт.

23

J907586

BAFFLE

Tappet cover, use with J823494 SEALANT, see below

1шт.

24

J928832

GASKET

tappet cover

1шт.

25

J934878

MANIFOLD

water inlet, replaces J903103 connection

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

28

A77429

PLUG

1/2 inch PT

2шт.

29

J910924

PLATE

BRACE Alternator mounting

1шт.

30

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

31

J914923

DIPSTICK,678.8mm L

oil

1шт.

32

J280812

TUBE

oil dipstick, one piece

1шт.

33

J905802

FITTING,9.53 mm OD x 39 mm L

END oil dipstick tube

1шт.

34

J905127

TUBE,9.52 mm OD x 180 mm L

dipstick, installed in cylinder block

1шт.

35

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

196803A1

KIT

engine block heater, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

37

196466A1

ELECTRIC CABLE

engine block heater

1шт.

38

J910517

O-RING

heater sealing

1шт.

39

247726A1

SUPPORT

BRACKET oil dipstick, Not included with the Engine, must be purchased separately.

1шт.

40

515-21127

CLAMP,1/2", Insul, 1/4" Bolt

Not included with the Engine, must be purchased separately. dipstick bracket

1шт.

41

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

Not included with the Engine, Must be purchased separately. Dipstick bracket

1шт.

42

495-11028

WASHER,1/4", SAE

Not included with the Engine, must be purchased separately. dipstick bracket

1шт.

43

425-104

NUT,1/4"-20, Cl 5

Not included with the Engine, must be purchased separately. dipstick bracket

1шт.

J823494

SEALANT

Three Bond Silver RTV Adhesive/sealer, 3 oz. tube

1шт.
