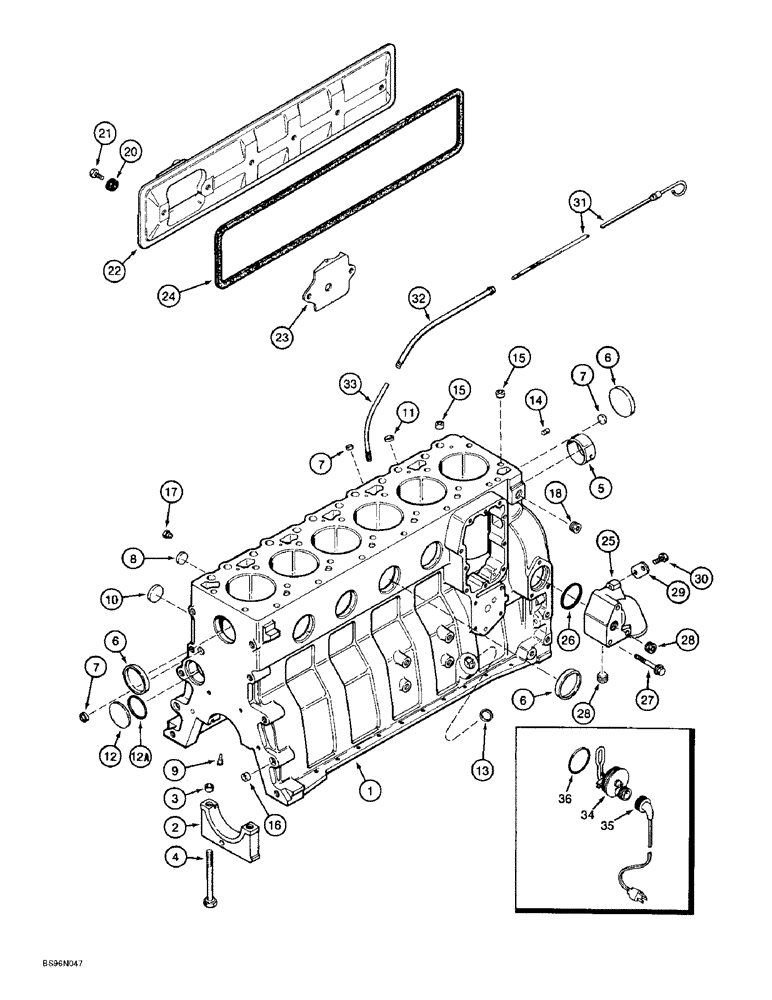

Запчасти Case 621B (2-34) - CYLINDER BLOCK, 6T-590 ENGINE, PRIOR TO P.I.N. JEE0053350 (02) - ENGINE

1989042C4

ENGINE ASSEMBLY

ENGINE ASSY complete, includes all parts except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, for service order basic engine below

1шт.

1989042C4R

REMAN-REPLACEMENT EN

Remanufactured, Complete, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Aassembly, For N.A Only

1шт.

6T-590C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ASSEMBLY basic, remanufactured, For North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

1989096C2C

CORE-ENGINE

RETURN NUMBER, use this part number to return core for credit when using a remanufactured assembly

1шт.

1989096C2

BASIC ENGINE

ASSEMBLY, includes all parts except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Crank Pulley, Turbocharger and Belt Tensioner

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY Short, Remanufactured, For North America Only, component parts shown on this figure do not apply to the remanufactured assembly, No longer Used, Order JR933183 Block and J802641 Kit

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER, use this part number to return block core for credit when using a remanufactured assembly

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY Short, Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings

1шт.

Order J802641 hardware kit when ordering J920392 block assembly.

1шт.

1

J916255

CYLINDER BLOCK

ASSEMBLY stripped, engine, Includes: Ref. 2 - 8, No Longer Available, Order J920392 Short Block or 1989096C2 Basic Engine

1шт.

Order J802641 hardware kit when ordering J920392 block assembly.

1шт.

2

J903492

BEARING CAP

CAP, Includes: Ref. 3, Replaces J900967

7шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

main bearing cap, special

14шт.

5

REF

INSTRUCTION

Bushing, See Figure 2-32, REF 2

1шт.

6

A77782

PLUG

expansion, 58 mm OD

6шт.

7

J900956

PLUG

expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Replaces A77539

4шт.

J802641

PACKAGE, REPAIR

KIT Block Hardware, Includes: Ref. 9 - 18, Replaces J920399

1шт.

Order J802641 hardware kit when ordering J920392 block assembly.

1шт.

9

J930139

NOZZLE CAP

Replaces J919002

6шт.

10

J900958

PLUG

expansion, 32 mm OD

1шт.

11

J900955

PLUG

expansion, 10 mm OD

2шт.

12

41-3038

PLUG,Exp, 2 3/8"

Replaces 172599

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING, 57 mm ID, Not Illustrated

1шт.

13

J920706

PLUG

expansion, 22 mm OD, not used in this application, J903744 turbocharger oil drain tube, Ref. 11, Figure 2-20, is installed in this port, Replaces A77439 plug

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

15

J902343

DOWEL

RING, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

hex, 1/8 PT, one removed to install engine oil pressure sender

1шт.

The connector the dealer needs is part number 250838A2, it replaces J906619 (Ref. 17) when a new block is used that switched form pipe thread to O-ring threads.

1шт.

18

A77429

PLUG

1/2 inch PT

1шт.

20

J900267

SEAL

cover bolt

6шт.

21

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

22

J927913

COVER

Replaces J911822

1шт.

23

J907586

BAFFLE

tappet cover

1шт.

24

J928832

GASKET

replaces J907617

1шт.

25

J903103

MANIFOLD

water inlet

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING. 50 mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

28

A77429

PLUG

hex socket, 1/2 PT, one removed to install cab heater hose

2шт.

29

J910924

PLATE

BRACE alternator mounting

1шт.

30

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

31

J914923

DIPSTICK,678.8mm L

oil

1шт.

32

J280812

TUBE

One Piece, Replaces J922884

1шт.

33

J905128

TUBE,9.52 mm OD x 153, 75.9 mm L

oil dipstick, block

1шт.

196803A1

KIT

engine block heater, Includes: Ref. 34 - 36, Replaces A77634

1шт.

34

NSS

NOT SOLD SEPARAT

ELEMENT, 120 volt

1шт.

35

196466A1

ELECTRIC CABLE

engine block heater, 1829 mm (72 in), Replaces J905113 cable

1шт.

36

J910517

O-RING

heater sealing

1шт.
