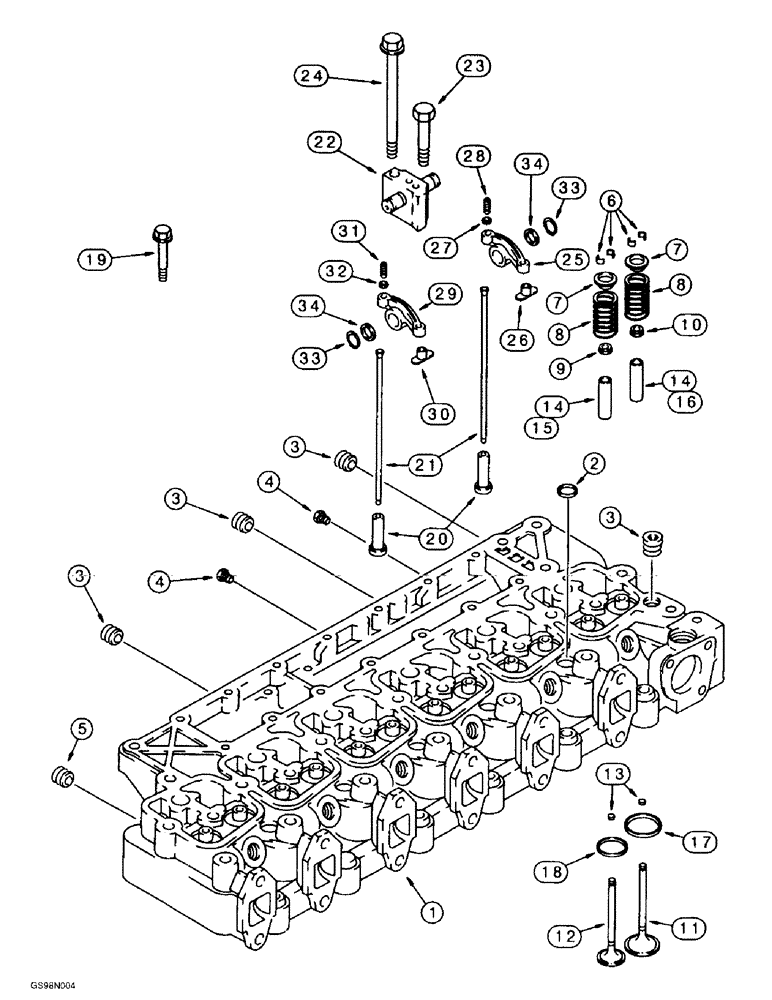

Запчасти Case 621B (2-31A) - CYLINDER HEAD & VALVE MECHANISM, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER PIN JEE0053350 AND AFTER (02) - ENGINE

JR934769

REMAN-CYLINDER HEAD

ASSEMBLY, North America Only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces JR927301

1шт.

JC927301

CORE-CYLINDER HEAD

Return Number

1шт.

J934769

HEAD (CYLINDER)

ASSEMBLY, With Valves, Includes: Ref. 1 - 13, Replaces J927301

1шт.

1

J934746

HEAD (CYLINDER)

ASSEMBLY, Without Valves, Includes: Ref. 2, Replaces J930652

1шт.

2

A77782

PLUG

58 mm OD

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

1/8 inch PT

2шт.

5

A77505

PLUG

3/4 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J926700

VALVE SPRING

12шт.

9

J921640

SEAL

Replaces J901097

6шт.

10

J921640

SEAL

valve

6шт.

11

J920867

VALVE

Intake

6шт.

12

J920868

VALVE

Exhaust

6шт.

13

J910412

WEAR PAD

Replaces J280911

6шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm OD, Semi-finished valve guide

6шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm OD, Semi-finished valve guide

6шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm OD, Semi-finished valve guide

12шт.

17

J906854

SEAT, VALVE

Intake, Service Repair Only

6шт.

18

J904105

SEAT, VALVE

Exhaust, Service Repair Only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm long

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm long

14шт.

20

J931623

TAPPET

valve, push rod

12шт.

21

J923262

PUSH ROD

rocker arm

12шт.

22

J922488

SUPPORT

SHAFT ASSEMBLY rocker arm

6шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

25

J910811

ROCKER

Arm ASSEMBLY, Intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT, ARM

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

A77902

NUT

3/8, Replaces 425-116

1шт.

29

J910810

ROCKER

Arm ASSEMBLY, Exhaust, Includes: Ref. 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT, ARM

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

32

A77902

NUT

3/8, Replaces 425-116

1шт.

33

J900242

SNAP RING

rocker arm

12шт.

34

J900245

WASHER

thrust, rocker arm

12шт.
