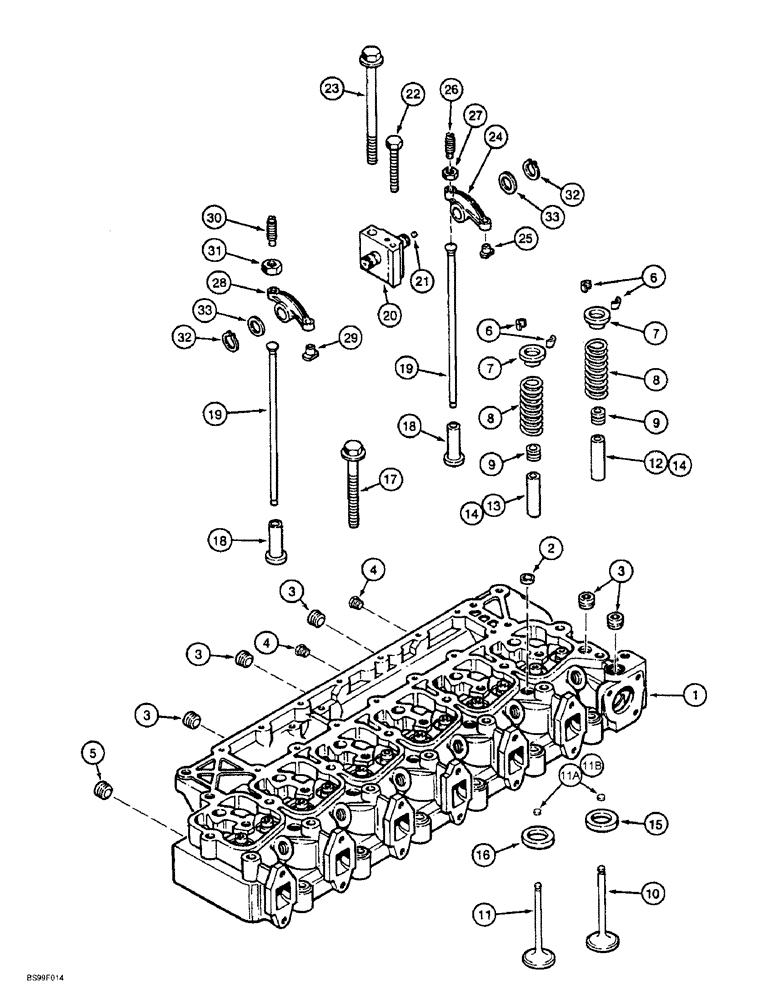

Запчасти Case 621B (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

JR934773

REMAN-CYLINDER HEAD

ASSEMBLY, North America Only, component parts shown on this figure do not apply to the remanufactured assembly, Replaces JR920612 and JR929735

1шт.

JC929735

CORE-CYLINDER HEAD

Return Number

1шт.

J934773

HEAD (CYLINDER)

ASSEMBLY New, With Valves, Includes: Ref. 1 - 11, Replaces J920612 and J929735

1шт.

J934742

HEAD (CYLINDER)

ASSEMBLY stripped, Includes: Ref. 1 - 11

1шт.

1

J917287

HEAD (CYLINDER)

ASSEMBLY, 7 mm injector, Without Valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

21 mm OD

5шт.

3

A77429

PLUG

1/2 PT

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

2шт.

4

J906619

PLUG,1/8" - 27

1/8 inch PT

2шт.

5

A77505

PLUG

3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER valve

24шт.

7

J900299

RETAINER

valve spring

12шт.

8

J926700

VALVE SPRING

Replaces J900276

12шт.

9

J901097

SEAL

Used With J929735 Head Assy

12шт.

9

J921640

SEAL

Used With J934742 Head Assy

12шт.

10

J920867

VALVE

Intake

6шт.

11

J920868

VALVE

Exhaust

6шт.

11a

J910412

WEAR PAD

Replaces J280911

12шт.

12

J904408

GUIDE

valve, intake, service repair only, 14 mm OD, Semi-finished valve guide

6шт.

13

J904409

GUIDE

valve, exhaust, service repair only, 14 mm OD, Semi-finished valve guide

6шт.

14

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm OD, Semi-finished valve guide

12шт.

15

J906854

SEAT, VALVE

Intake, Service Repair Only

6шт.

16

J904105

SEAT, VALVE

Exhaust, Service Repair Only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm long

14шт.

18

J931623

TAPPET

Replaces J907240 and J925031

12шт.

19

J923262

PUSH ROD

rocker arm

12шт.

20

J910814

SUPPORT

SHAFT ASSEMBLY, Includes: Ref. 21

6шт.

21

J907555

PLUG

Rocker arm shaft, 1/4 PT

1шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm

6шт.

24

J910811

ROCKER

ARM ASSEMBLY, Intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT, rocker arm

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

1шт.

28

J910810

ROCKER

Arm ASSEMBLY, Exhaust, Includes: Ref. 29 - 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT, rocker arm

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

1шт.

32

J900242

SNAP RING

retaining, rocker arm

12шт.

33

J900245

WASHER

thrust, rocker arm

12шт.
