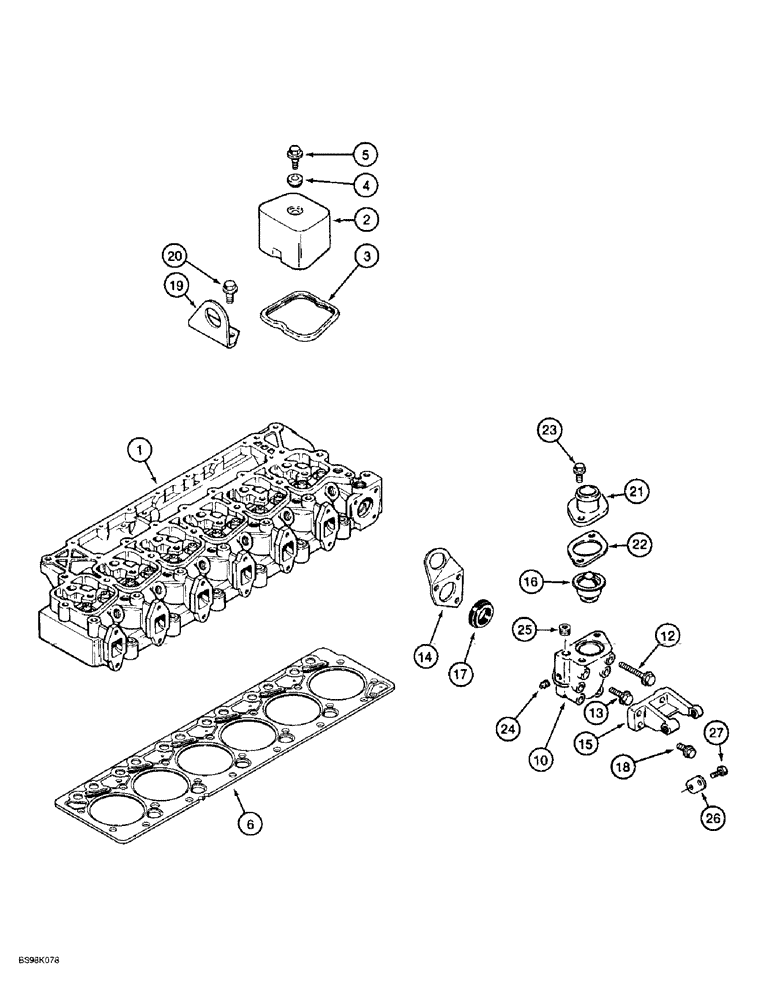

Запчасти Case 621B (2-29A) - CYLINDER HEAD COVER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

1

REF

INSTRUCTION

Head, Cylinder, See Figure 2-31A for correct cylinder head assembly and component parts

1шт.

2

J928404

COVER

Rocker arm

6шт.

3

J930906

GASKET

SEAL Rocker arm cover

6шт.

4

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Replaces J928406 isolator and 495-11041 washer

6шт.

5

J907049

BOLT,Hex

8-1.25 x 21.25 mm

6шт.

6

J283335

GASKET,2.32mm Thk

head, standard, replaces J282805 gasket

1шт.

6

J283337

GASKET,2.24mm Thk

head, 1 notch, 0.25 mm thicker, replaces J283000 gasket

1шт.

6

J283339

GASKET

head, 2 notches, 0.50 mm thicker, replaces J283002 gasket

1шт.

10

J924473

HOUSING

thermostat

1шт.

Ref #10 J924473 USES J906697 RECT RING. OLD HSG J920116 USED J914821 RING.

1шт.

12

J919995

FLANGE BOLT,Hex, M8 x 1.25 x 90mm

8-1.25 x 90 mm, thermostat housing to cylinder head

2шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Thermostat and housing

1шт.

14

J903757

BRACKET

Lifting, front, thermostat and housing

1шт.

15

J910923

BRACE

SUPPORT alternator mounting, thermostat and housing

1шт.

A77920

SPARE PART SET

KIT coolant thermostat, Includes: Ref. 16 and 17, Replaces A77736 kit, thermostat and housing

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT, coolant, housing

1шт.

17

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

GASKET thermostat housing (REPLACED J923331)

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.

19

J908118

BRACKET

lifting, rear, thermostat and housing

1шт.

20

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Thermostat and housing

2шт.

21

J920123

CONNECTION

water outlet, thermostat and housing

1шт.

22

J912558

GASKET,0.8mm Thk

connection, thermostat and housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Thermostat and housing

2шт.

24

J900956

PLUG

18 mm OD, thermostat and housing

1шт.

25

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

Thermostat and housing

1шт.

26

J910924

PLATE

BRACE alternator mounting, thermostat and housing

1шт.

27

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Thermostat and housing

1шт.
