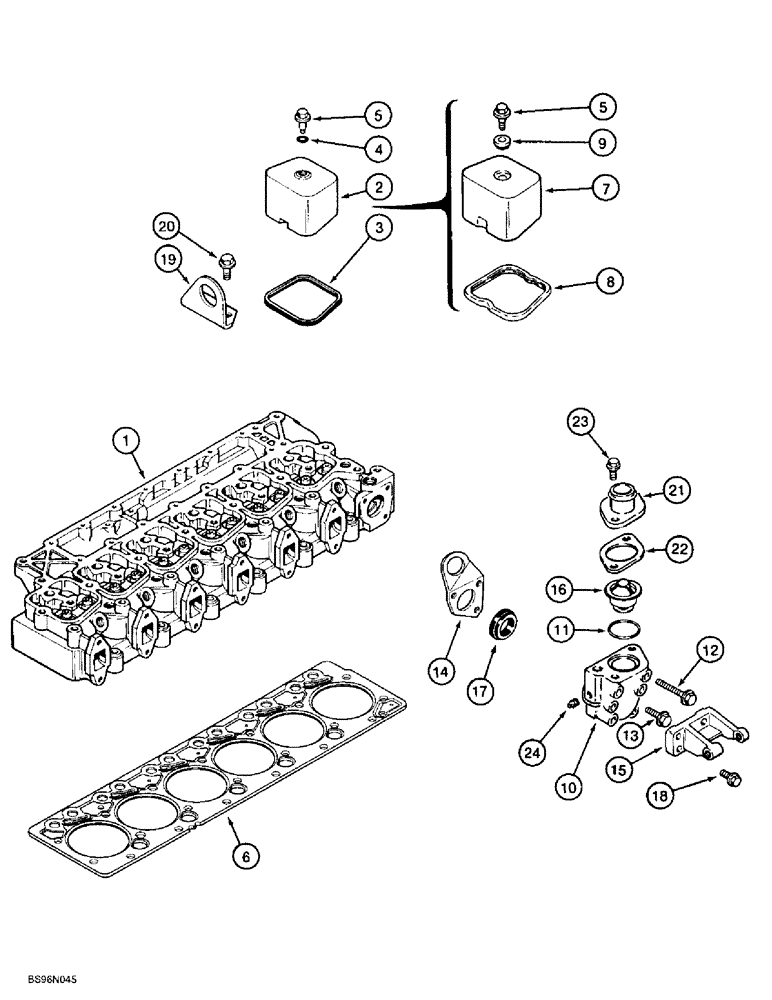

Запчасти Case 621B (2-28) - CYLINDER HEAD COVER, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

1

REF

INSTRUCTION

HEAD, Cylinder, See Figure 2-30 for correct cylinder head assembly and component parts

1шт.

2

J902604

COVER

rocker arm, if used

6шт.

3

J929795

GASKET

SEAL rocker arm cover, replaces J902666 seal

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

6шт.

5

J907049

BOLT,Hex

8-1.25 x 21.25 mm

6шт.

6

J283335

GASKET,2.32mm Thk

head, standard, replaces J918305, J921394 and J282805 gaskets

1шт.

6

J283000

GASKET

head, 1 notch, 0.25 mm thicker, replaces J921396 gasket

1шт.

6

J283002

GASKET

head, 2 notches, 0.50 mm thicker, replaces J921398 gasket

1шт.

7

J928404

COVER

rocker arm, if used

6шт.

8

J930906

GASKET

SEAL rocker arm cover, if used

6шт.

9

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, replaces J928406 isolater, if used

6шт.

10

J924473

HOUSING

Thermostat, replaces J920116 housing

1шт.

Ref #10 J924473 USES J906697 RECT RING. OLD HSG J920116 USED J914821 RING.

1шт.

11

J914821

SEAL

housing, thermostat

1шт.

12

845-8090

BOLT,Hvy Hex, M8 x 90mm, Cl 8.8

Thermostat housing to cylinder head

2шт.

13

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Thermostat and housing

1шт.

14

J903757

BRACKET

lifting, front, thermostat and housing

1шт.

15

J910923

BRACE

SUPPORT alternator mounting, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT coolant thermostat, Includes: Ref. 16 and 17, thermostat and housing

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, thermostat and housing

1шт.

17

J923331

GASKET

thermostat housing

1шт.

18

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Thermostat and housing

3шт.

19

J908118

BRACKET

lifting, rear, thermostat and housing

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Thermostat and housing

2шт.

21

J920123

CONNECTION

water outlet, thermostat and housing

1шт.

22

J912558

GASKET,0.8mm Thk

connection, thermostat and housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

Thermostat and housing

2шт.

24

J900956

PLUG

18 mm OD, thermostat and housing

1шт.

25

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

Not Illustrated, Thermostat and housing

1шт.
