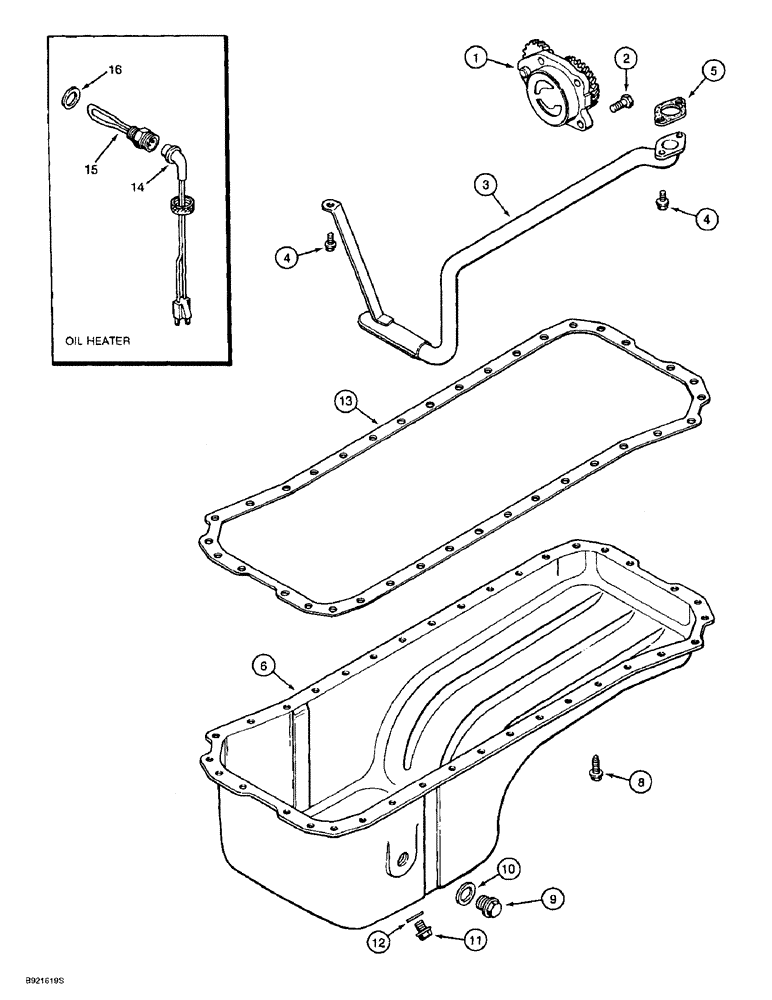

Запчасти Case 621B (2-27A) - OIL PUMP AND OIL PAN, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

1

J941742

PUMP, ENGINE OIL

new

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J909373

TUBE

with screen, oil suction

1шт.

4

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

3шт.

5

J931349

GASKET

mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

9

J924148

PLUG,M22 x 1.5

M22

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

11

J924147

PLUG,M18 x 1.5

M18

1шт.

12

J920773

SEALING WASHER

drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

A77676

GASKET KIT

oil pan, Includes: Ref. 5, 12 and 13

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 14 and 15

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.

14

196466A1

ELECTRIC CABLE

engine block heater

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

plug, engine oil heater

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.
