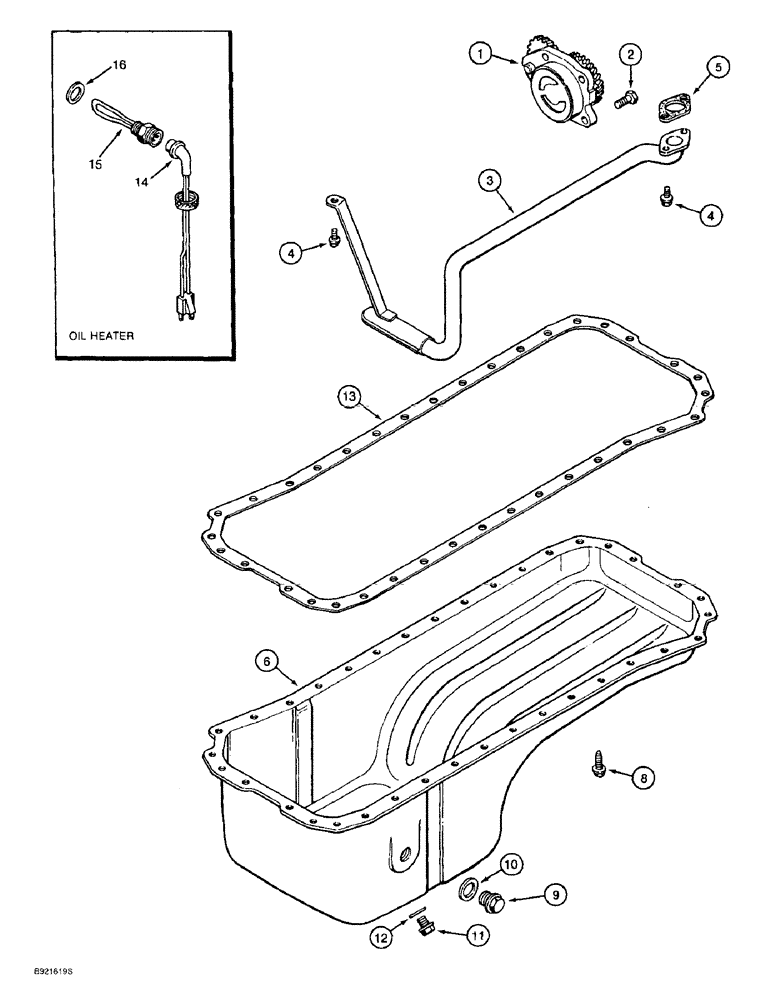

Запчасти Case 621B (2-26) - OIL PUMP AND OIL PAN, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

1

J941742

PUMP, ENGINE OIL

ASSEMBLY, Replaces J930337, J924720, J926203

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanfactured Oil Pump; For N.A. only; Replaces JR930337, JR924720 and JR926203 pump

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J909373

TUBE

with screen, oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

5

J914383

GASKET

mounting, oil suction tube

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

9

J924148

PLUG,M22 x 1.5

M22

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

11

J924147

PLUG,M18 x 1.5

M18

1шт.

12

J920773

SEALING WASHER

drain plug

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET oil pan

1шт.

Part of Oil Pan Gasket Kit, P/N A77676

1шт.

A77676

GASKET KIT

Oil Pan, Includes: Ref. 5, 12 and 13

1шт.

A77490

KIT

heater, engine oil, Includes: Ref. 14 and 15

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.

14

196466A1

ELECTRIC CABLE

Replaces J905113 cable

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, engine oil heater

1шт.

When A77490 kit is ordered, Ref. 16, J902425 washer must also be ordered.

1шт.
