(2-25A) - OIL FILTER AND COOLER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER

Запчасти Case 621B (2-25A) - OIL FILTER AND COOLER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

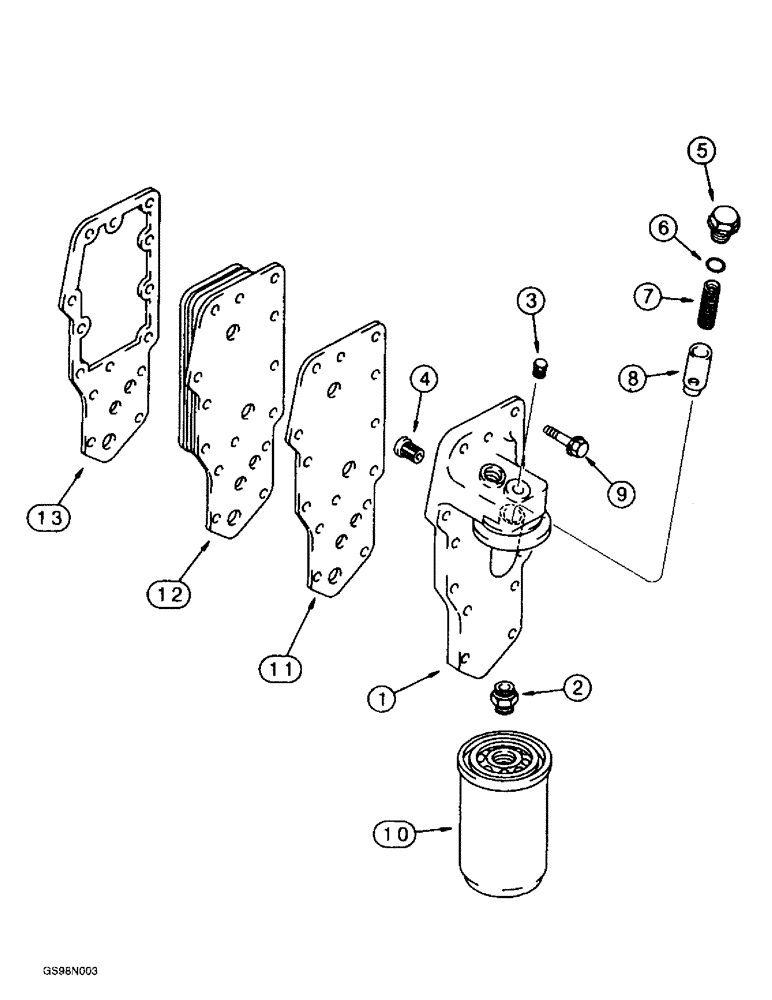

Схема запчастей Case 621B - (2-25A) - OIL FILTER AND COOLER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE
2
7
12
10
4
11
8
3
5
13
9
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J918954

HEAD

ASSEMBLY oil filter and cooler, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD, oil filter and cooler

1шт.

2

J909355

ADAPTER

filter head

1шт.

3

J906619

PLUG,1/8" - 27

1/8 inch PT

1шт.

4

J933615

VALVE

replaces J927622 valve

1шт.

5

J915787

PLUG

threaded

1шт.

6

J929457

O-RING

plug

1шт.

7

J918427

SPRING

compression, 54 mm free length

1шт.

8

J918428

PLUNGER

regulator, pressure

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J937743

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J937743MP

replaces J908615 filter

1шт.

10

J934430

ENGINE OIL FILTER

cartridge, premium

1шт.

11

J929792

GASKET,1.2mm Thk

Filter head

1шт.

12

J921558

COOLER

CORE oil

1шт.

13

J942914

GASKET

oil cooler core, replaces J929791 gasket

1шт.
