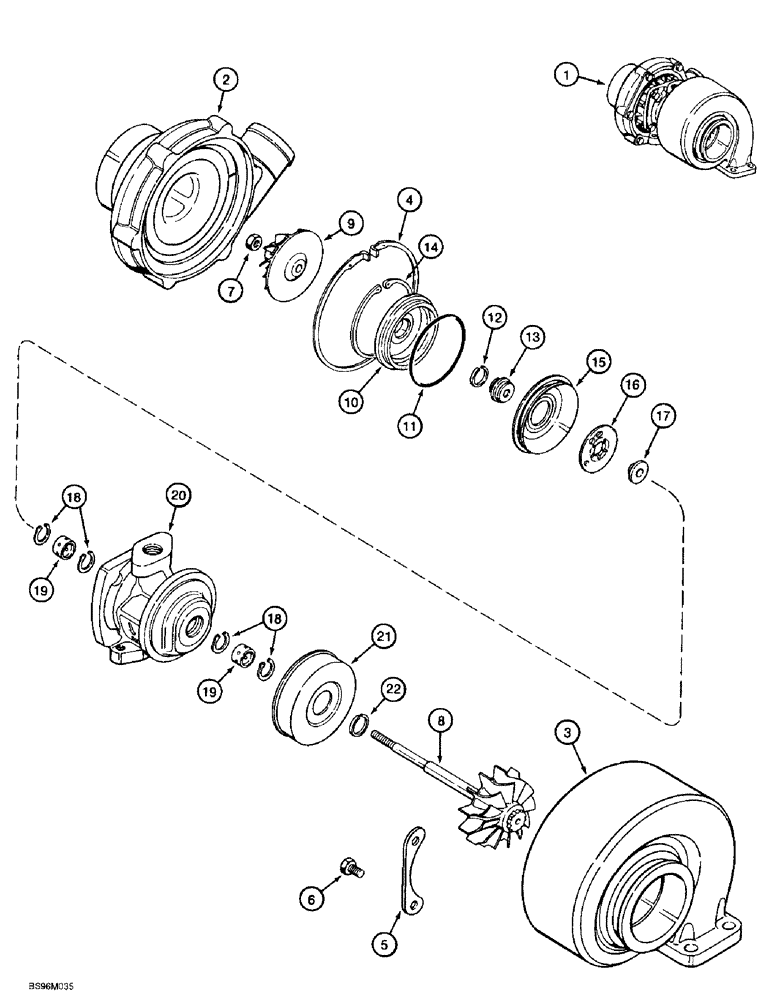

Запчасти Case 621B (2-23A) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

1

J802770

TURBOCHARGER

KIT, With Gaskets J709861 and J519807, Includes: Ref. 2 - 22, Check Part Number stamped on Turbo Before Ordering

1шт.

1

JR802770

REMAN-TURBOCHARGER

621B P.I.N. JEE0053350 & Aft.

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

4

J533163

SNAP RING

retaining

1шт.

5

J501188

PLATE

clamping, turbine housing

2шт.

6

J759917

SET SCREW

set, hex head, plate retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

J575217

HOUSING

Includes: Ref. 7- 22

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

9

NSS

NOT SOLD SEPARAT

IMPELLER - turbo compressor

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - oil seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

13

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

14

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

15

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of Turbocharger Overhaul Kit P/N J575169

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

21

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - split ring, turbine

1шт.

J575169

REPAIR KIT

Includes: Ref. 6, 7, 8, 11, 12, 14 - 16, 18, 19

1шт.
