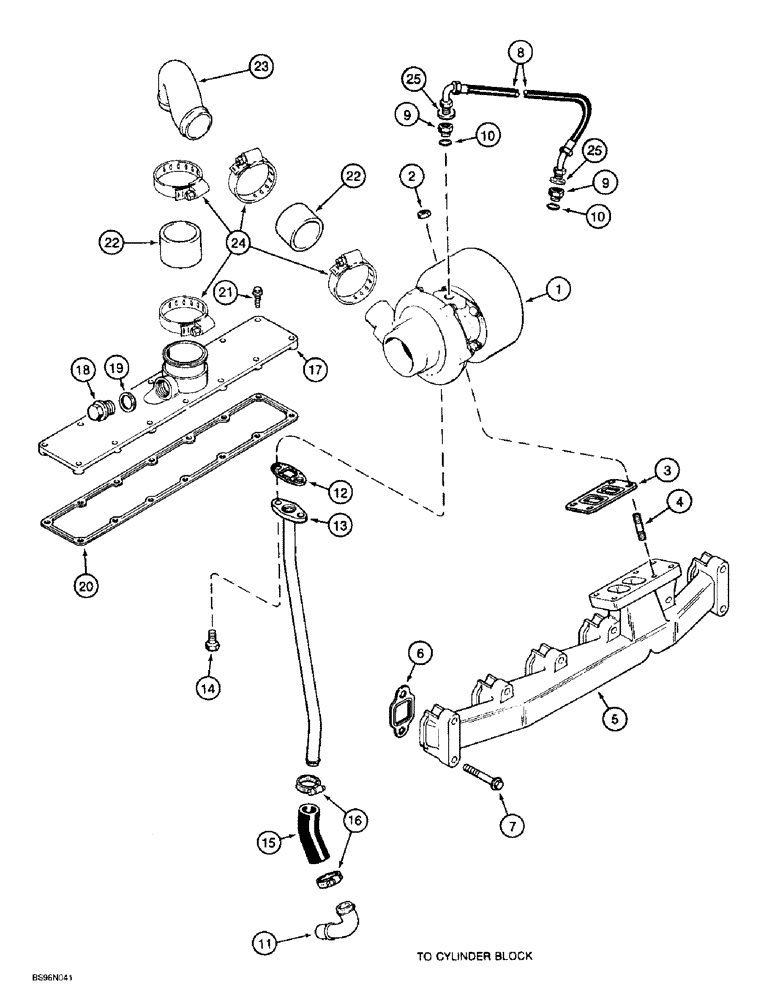

Запчасти Case 621B (2-21A) - TURBOCHARGER SYSTEM & MANIFOLDS, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 & AFTER (02) - ENGINE

1

REF

INSTRUCTION

Turbocharger Assy, engine, new, see Figure 2-23A for correct assembly and component parts

1шт.

2

J818824

FLANGE NUT

M10

4шт.

3

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J818823

STUD

turbocharger mounting, M10 x 40

4шт.

5

J931747

MANIFOLD

exhaust

1шт.

6

J927154

GASKET,0.38mm Thk

exhaust manifold

6шт.

7

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

M10 x 65 mm, class 10.9, replaces J901448 bolt

12шт.

8

J918562

HOSE

538 mm (21-3/16 inch) long, turbocharger

1шт.

9

J919687

HYD CONNECTOR

ADAPTER female hex, special, Includes: Ref. 10

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

11

J931973

TUBE,0.875" OD

turbocharger oil drain, lower

1шт.

11a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID, tube, turbocharger oil drain, not shown

1шт.

12

J931350

GASKET

turbo oil drain tube

1шт.

13

J934093

TUBE

turbocharger oil drain, upper

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

15

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain Tube to Block Tube

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Turbocharger drain hose

2шт.

A77418

KIT

manifold, Includes: Ref. 17 - 19, no longer available, order components separately

1шт.

17

J904862

COVER

intake manifold

1шт.

18

J907185

PLUG

manifold

1шт.

19

J906773

WASHER

plug sealing

1шт.

20

J931347

GASKET

mounting, intake manifold cover

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Intake Manifold Cover to Cylinder Head

16шт.

22

J931805

INTAKE AIR HOSE

58 mm (2-9/32 inch) long, replaces J916165 hose

2шт.

23

J931453

TUBE,63.5 mm OD x 254.77 mm L

air intake, crossover

1шт.

24

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.

25

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
