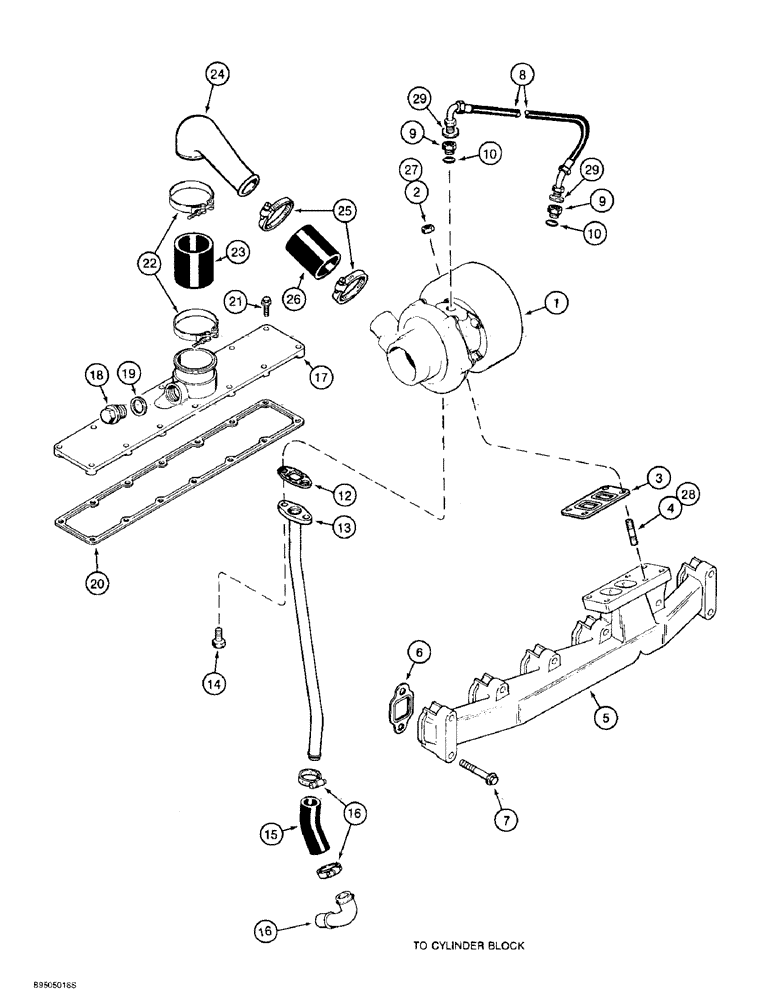

Запчасти Case 621B (2-20) - TURBOCHARGER SYSTEM AND MANIFOLDS, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

1

J919113

TURBOCHARGER

ASSEMBLY engine, new, parts list Figure 2-22, no longer used, order turbocharger assembly J802289

1шт.

2

J901961

NUT

hex, special, 10 mm-1.25, turbocharger mounting, if used

4шт.

3

J901356

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J905417

STUD

STUD turbocharger mounting, used with Ref. 2, J901961 nut only, if used

4шт.

5

J931747

MANIFOLD

exhaust, replaces J901683 manifold

1шт.

6

J905443

MANIFOLD GASKET

exhaust manifold

6шт.

7

J901448

FLANGE BOLT,Hex, M10 x 65mm

Cl 10.9

12шт.

8

J918562

HOSE

538 mm (21-3/16 inch) long, turbocharger, replaces J909548 hose

1шт.

9

J919687

HYD CONNECTOR

ADAPTER Female hex, special, oil supply hose, Includes: Ref. 10

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

11

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE turbocharger oil drain

1шт.

12

J931350

GASKET

turbo oil drain tube, replaces J928919 gasket

1шт.

13

J918579

TUBE

turbocharger oil drain, upper

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

15

J931970

HOSE,22.22 mm ID x 76.20 mm

Turbocharger Oil Drain Tube to Block Tube, Replaces J903745

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Drain hose to tubes

2шт.

A77418

KIT

manifold, intake, Includes: Ref. 17 - 19, no longer available, order components separately

1шт.

17

J904862

COVER

intake manifold

1шт.

18

J907185

PLUG

manifold

1шт.

19

J906773

WASHER

plug sealing

1шт.

20

J931347

GASKET

mounting, replaces J914029 gasket

1шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Cover to cylinder head

16шт.

22

J924386

COLLAR CLAMP

adjustable, special, hose

2шт.

23

J916529

TRANSMISSION SLEEVE

HOSE, 76 mm (3 inch) long, crossover tube to manifold cover

1шт.

24

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

TUBE air intake

1шт.

25

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

adj, 1-5/16 - 2-1/4 inch dia

2шт.

26

J916166

INTAKE AIR HOSE

71 mm (2-3/4 inch) long

1шт.

27

J818824

FLANGE NUT

M10, turbocharger mounting, if used

4шт.

28

J818823

STUD

turbocharger mounting, used with item 27, J818824 nut only, if used

4шт.

29

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
