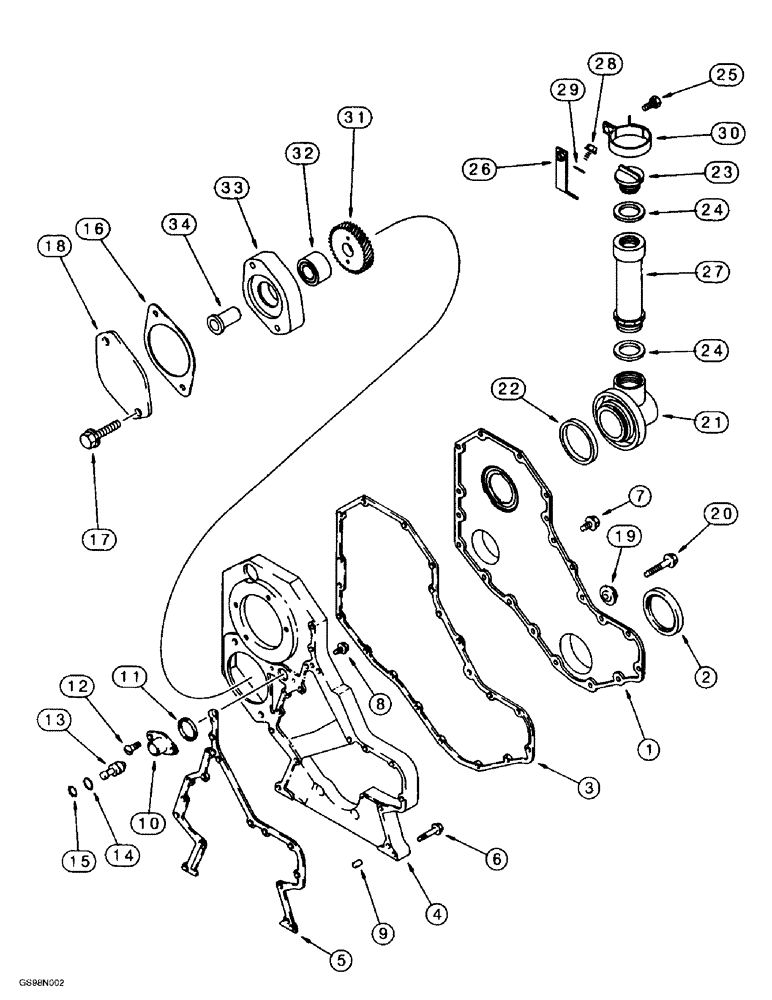

Запчасти Case 621B (2-19A) - FRONT GEAR COVER, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

1

J918675

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft, front, order Ref. 13, A77889 seal kit on Figure 2-39A

1шт.

3

J918673

GASKET,1.02mm Thk

front cover

1шт.

4

J932120

HOUSING

timing gear

1шт.

5

J931351

GASKET

gear housing, replaces J916131 gasket

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

(8) for front gear cover to timing gear housing to engine block and (2) for timing gear housing to engine block

10шт.

7

J924962

FLANGE BOLT

M8 x 16, front gear cover to timing gear housing

8шт.

8

J924962

FLANGE BOLT

M8 x 16 mm, timing gear housing to engine block

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm long

2шт.

10

J919683

HOUSING

Timing pin

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

14

J913994

O-RING

sealing

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

16

J929751

GASKET

access cover plate

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Replaces 854-12065 bolt

2шт.

18

J914868

COVER

PLATE access

1шт.

19

J912772

RETAINER

bolt

1шт.

20

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

21

J921644

ADAPTER

CONNECTOR engine oil fill

1шт.

22

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

23

J901895

CAP

oil filler

1шт.

24

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

2шт.

25

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

26

J914497

SUPPORT

BRACE tube

1шт.

27

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

oil filler

1шт.

28

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Retaining, Brace to head

1шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

30

J914940

CLAMP

tube

1шт.

31

J931338

GEAR

drive, accessory, replaces J928860 gear

1шт.

32

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

pump

1шт.

33

J924881

ADAPTER

hydraulic pump

1шт.

34

J923242

SHAFT

accessory drive

1шт.
