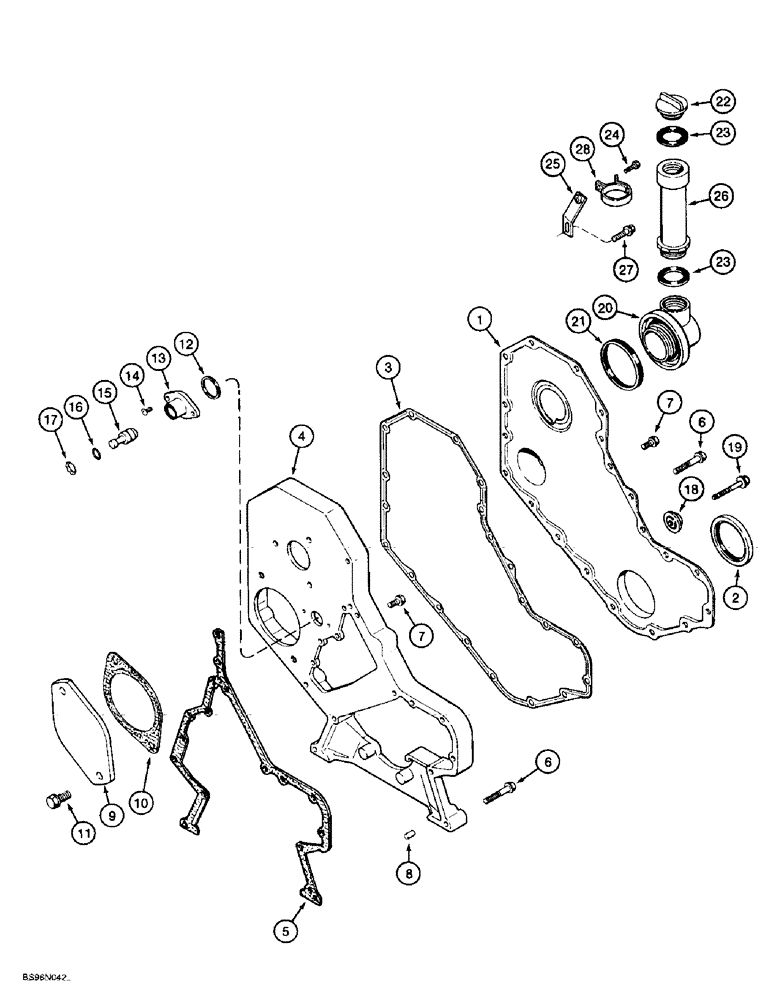

Запчасти Case 621B (2-18) - FRONT GEAR COVER, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

1

J903794

COVER

gear, front

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL, oil, front, order Ref. 13, A77889 seal kit on Figure 2-38

1шт.

3

J914385

GASKET,1.02mm Thk

front cover

1шт.

4

J920758

HOUSING

timing gear

1шт.

5

J931351

GASKET

Replaces J916131 gasket

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16 (11) for front gear cover to timing gear housing and (5) for timing gear housing to engine block

16шт.

8

J900257

PIN,10.01mm OD x 16mm L

16 mm long, locating

2шт.

9

J914868

COVER

PLATE access

1шт.

10

J931608

GASKET

access cover plate, replaces J919601 gasket

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

13

J919683

HOUSING

timing pin

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

timing

1шт.

16

J913994

O-RING

sealing

1шт.

17

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

18

J912772

RETAINER

bolt

1шт.

19

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

20

J921644

ADAPTER

CONNECTOR engine oil fill, replaces J911679 connector

1шт.

21

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

22

J901895

CAP

oil filler

1шт.

23

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap

2шт.

24

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

25

J914497

SUPPORT

BOLT, M10 x 25 mm

1шт.

26

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

oil filler

1шт.

27

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

Retaining, Brace to head

1шт.

28

J914940

CLAMP

tube

1шт.
