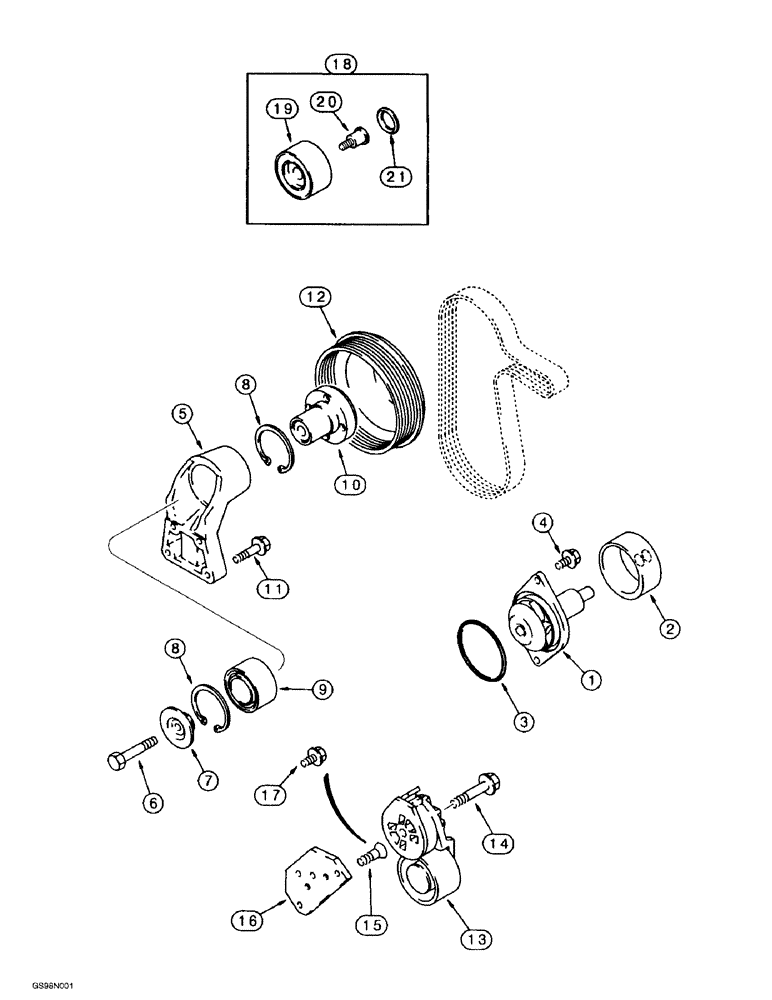

Запчасти Case 621B (2-17A) - WATER PUMP SYSTEM, 6T-590 EMISSIONS CERTIFIED ENGINE, LOADER P.I.N. JEE0053350 AND AFTER (02) - ENGINE

J802970

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

621B, P.I.N. JEE0053350 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

BRACKET, Includes: Ref. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

fan hub

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

fan

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan bracket to cylinder block

4шт.

12

J914462

PULLEY,163mm OD

1.1 to 1 ratio

1шт.

13

J934817

BELT TENSIONER

Replaces J918944 tensioner

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

16

J925207

SUPPORT

BRACKET belt tensioner

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

18

A77817

KIT

KIT belt tensioner pulley, used to replace pulley of J934817 belt tensioner, Ref. 13, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.
