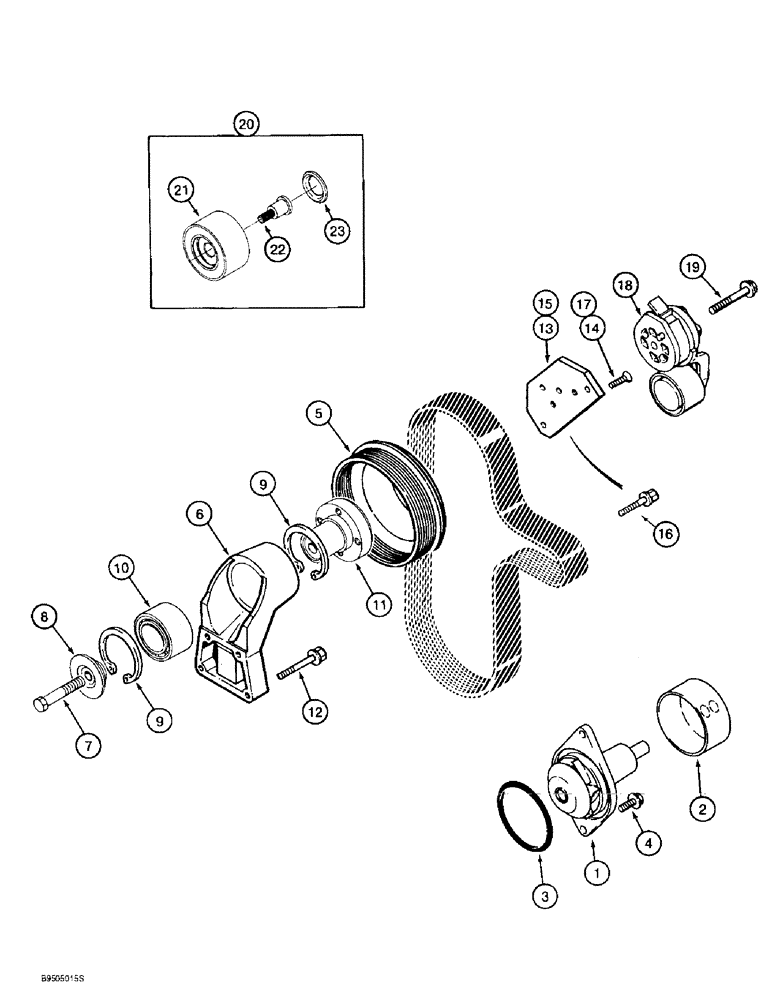

Запчасти Case 621B (2-16) - WATER PUMP SYSTEM, 6T-590 ENGINE, PRIOR TO LOADER P.I.N. JEE0053350 (02) - ENGINE

J802970

PUMP, WATER

KIT, Includes: Ref. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

621B, Prior To P.I.N. JEE0053350

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

Fan, 1.1 to 1 ratio

1шт.

6

J911922

SUPPORT ASSY.

BRACKET, Includes: Ref. 7 - 11

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

13

J919736

SUPPORT

BRACKET, No longer used, for service order Ref. 15, J925207 bracket

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Used with Ref. 13, J919736 bracket only

2шт.

15

J925207

SUPPORT

BRACKET belt tensioner

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

Used with Ref. 15, J925207 bracket only

1шт.

17

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Used with Ref. 15, J925207 bracket only

1шт.

18

J934817

BELT TENSIONER

Replaces J918944 tensioner

1шт.

19

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

20

A77817

KIT

KIT - belt tensioner pulley, used to replace pulley of J934817 belt tensioner, Ref. 18, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

22

NSS

NOT SOLD SEPARAT

BOLT

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL

1шт.
