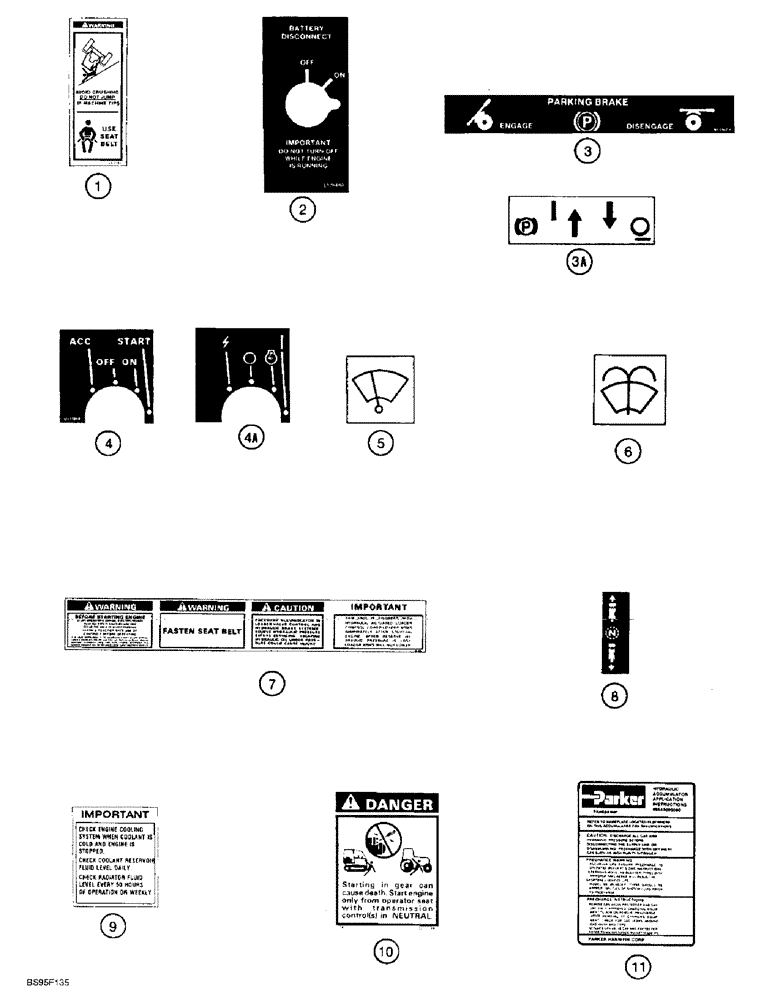

Запчасти Case 621B (9-100) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-7030

WARNING DECAL

Do Not Jump, Use Seat Belt

1шт.

2

L126480

DECAL

battery disconnect

1шт.

3

97376C3

DECAL

Parking Brake, Models With Tan Cabs or Canopies

1шт.

3a

186467A1

DECAL

Parking Brake, Models With Gray or Special Painted Cabs or Canopies

1шт.

4

D123946

DECAL

Ignition Switch Pattern, Models With Tan Cabs or Canopies

1шт.

4a

140219A2

DECAL

Ignition Switch Pattern, Models With Gray or Special Painted Cabs or Canopies

1шт.

5

3231781R1

IDEOGRAM

Decal, front wiper switch

1шт.

One 3231781R1 decal is included in L36339 canopy windshield and wiper kit shown on Figure 9-092.

1шт.

6

3231783R1

IDEOGRAM

Decal, windshield washer

1шт.

7

321-7028

DECAL

Warning/Caution/ Important combination

1шт.

8

1987168C1

DECAL

direction, speed

1шт.

9

104004A1

DECAL

Important, Check Engine Cooling System

1шт.

10

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

11

L129440

DECAL

Hydraulic Accumulator Application Instructions

2шт.

194308A1

DECAL

KIT, Includes: Ref. 1, 2, 4A, 7, 8, 10 and 11 on this Figure, Ref. 1 - 4 P/N 183421A1 and 5 - 9 on Figure 9-095A and Ref. 1 - 13A on Figure 9-098

1шт.
