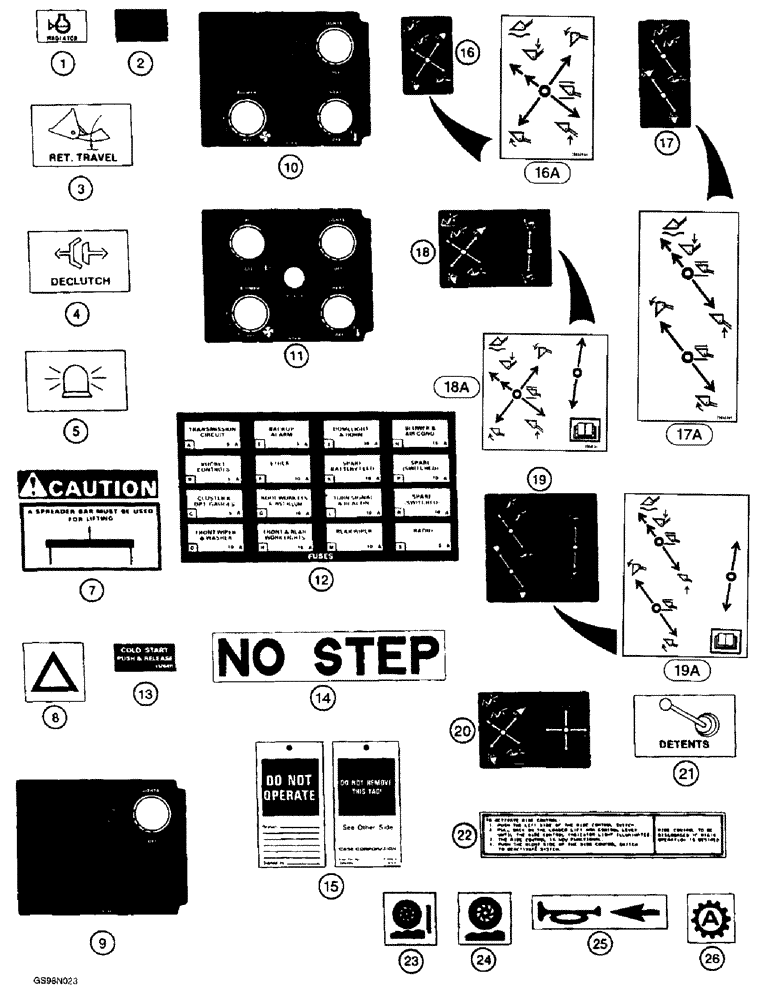

Запчасти Case 621B (9-096) - DECALS (09) - CHASSIS/ATTACHMENTS

1

117631A1

LENS

Decal, radiator, coolant level

1шт.

2

83883C1

SYMBOLS

SYMBOL Lens, black

1шт.

3

A187693

IDEOGRAM

Decal, return to travel, bucket

1шт.

4

A187696

IDEOGRAM

Decal, declutch selector

1шт.

5

245917C1

DECAL

Decal, rotating beacon

1шт.

7

321-3574

DECAL

Caution, a spreader bar must be used for lifting

3шт.

8

245916C1

DECAL

SYMBOL Decal, hazard switch

1шт.

9

1977820C1

DECAL

environmental, canopy models

1шт.

10

1977818C1

DECAL

environmental, cab models with heater

1шт.

11

1977819C1

DECAL

environmental, cab models with heater and air conditioning

1шт.

12

1990800C2

DECAL

fuses, cab and canopy models

1шт.

13

L126411

DECAL

cold start, models with tan cabs or canopies

1шт.

13

179979A1

DECAL

cold start, models with gray or special painted cabs or canopies

1шт.

13

278925A1

DECAL

cold start

1шт.

14

H239079

DECAL

no step, located on air conditioning condenser

1шт.

15

321-4614

TAG

Tag, do not operate

1шт.

16

1977319C3

DECAL

loader control, single lever remote control valve with two spool valve, see Figure 8-62, no longer used, order decal 256421A1, Ref. 16A

1шт.

16a

256421A1

DECAL

loader control, single lever remote control valve with two spool valve, see Figure 8-62, replaces 1977319C3 decal

1шт.

17

1977651C3

DECAL

loader control, dual lever remote control valve with two spool valve, see Figure 8-64, no longer used, order decal 256420A1, Ref. 17A

1шт.

17a

256420A1

DECAL

loader control, dual lever remote control valve with two spool valve, see Figure 8-64, replaces 1977651C3 decal

1шт.

18

1977321C3

DECAL

loader control, single lever and auxiliary single lever remote control valves with three spool valve, see Figure 8-68, no longer available, order decal 256423A1, Ref. 18A

1шт.

18a

256423A1

DECAL

loader control, single lever and auxiliary single lever remote control valves with three spool valve, see Figure 8-68, replaces 1977321C3 decal

1шт.

19

1977322C3

DECAL

loader control, two single lever remote control valves with four spool valve, see Figure 8-74, no longer available, order decal 256422A1, Ref. 19A

1шт.

19a

256422A1

DECAL

loader control, dual lever and auxiliary single lever remote control valves with three spool valve, see Figure 8-70, replaces 1977322C3 decal

1шт.

20

256424A1

DECAL

loader control, two single lever remote control valves with four spool valve, see Figure 8-74, replaces 1977322C3 decal

1шт.

21

117632A1

SYMBOLS

SYMBOL DECAL detent

1шт.

22

133448A1

DECAL

ride control instructions

1шт.

23

191145A1

DECAL

ride control, on

1шт.

24

191146A1

DECAL

ride control

1шт.

25

195274A1

DECAL

horn

1шт.

26

242631A1

SYMBOLS

SYMBOL DECAL auto shift, Start Serial: JEE0052701

1шт.

27

242322A1

HOSE

DECAL quality assurance, not shown

1шт.
