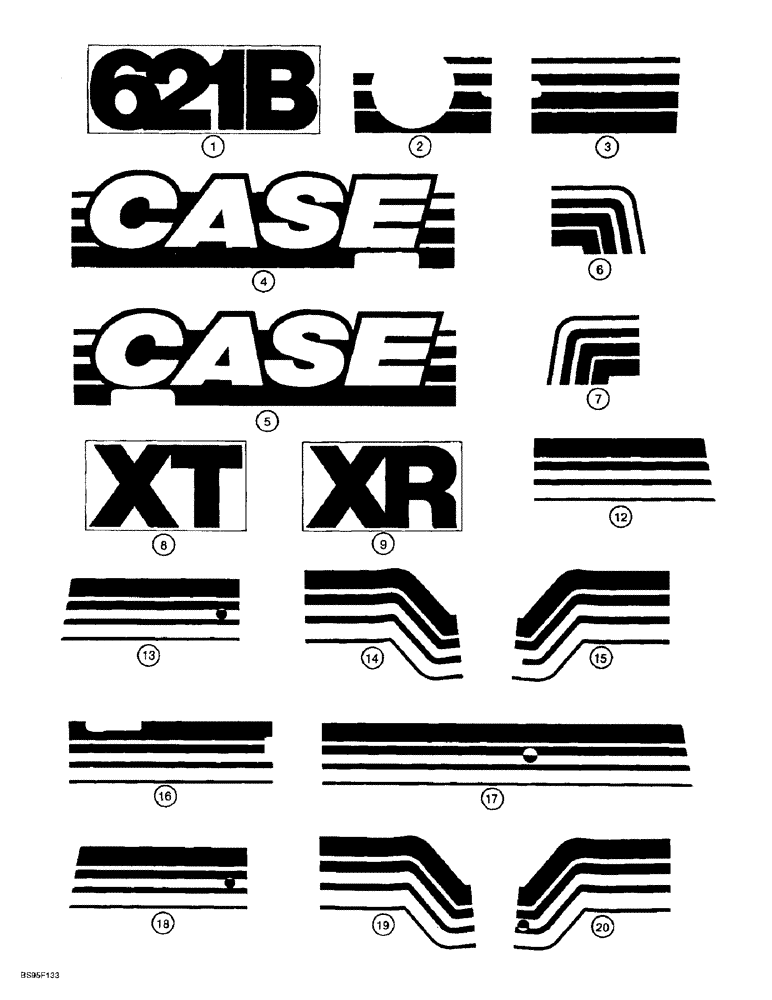

Запчасти Case 621B (9-095A) - DECALS, GRAY (09) - CHASSIS/ATTACHMENTS

1

182886A1

DECAL

621B, Located on Loader Arms

2шт.

Part of Decal Kit P/N 194308A1

1шт.

2

183425A1

DECAL

Stripes, Left- hand Hydraulic Tank

1шт.

Part of Decal Kit P/N 194308A1

1шт.

3

183424A1

DECAL

Stripes, right hand Hydraulic Tank

1шт.

Part of Decal Kit P/N 194308A1

1шт.

4

183421A1

DECAL

Case, left-hand, hood

1шт.

Part of Decal Kit P/N 194308A1

1шт.

4

187699A1

DECAL

stripes, left-hand, hood

1шт.

5

183420A1

DECAL

Case, right-hand, hood

1шт.

Part of Decal Kit P/N 194308A1

1шт.

5

187698A1

DECAL

stripes, right-hand, hood

1шт.

Part of Decal Kit P/N 194308A1

1шт.

6

183423A1

DECAL

Stripes, Left Hand Radiator Shroud

1шт.

Part of Decal Kit P/N 194308A1

1шт.

7

183422A1

DECAL

Stripes, Right Hand Radiator Shroud

1шт.

Part of Decal Kit P/N 194308A1

1шт.

8

183349A1

DECAL

XT Model name, Located on Loader Arms, If used

2шт.

Part of Decal Kit P/N 194308A1

1шт.

9

183350A1

DECAL

XR Model name, Located on Loader Arms, If used

2шт.

Part of Decal Kit P/N 194308A1

1шт.

12

183428A1

DECAL

Stripes, Right Hand, Front of Cab, painted gray

1шт.

13

183432A1

DECAL

Stripes, Left Hand, Front of Cab, painted gray

1шт.

14

183429A1

DECAL

Stripes, Right Hand, Quarter Panel of Cab, painted gray

1шт.

15

183430A1

DECAL

Stripes, Left Hand, Quarter Panel of Cab, painted gray

1шт.

16

183431A1

DECAL

Stripes, Left Hand, Door of Cab, painted gray

1шт.

17

183433A1

DECAL

Stripes, Right Hand, Front of Canopy, painted gray

1шт.

18

183432A1

DECAL

Stripes, Left Hand, Front of Canopy, painted gray

1шт.

19

183429A1

DECAL

Stripes, Right Hand, Quarter Panel of Canopy, painted gray

1шт.

20

183434A1

DECAL

Stripes, Right Hand, Rear of Canopy, painted gray

1шт.

21

184980A1

DECAL

Stripes, Right Hand, Front of Cab, painted other than gray or tan, Similiar to Ref 12

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

22

184984A1

DECAL

Stripes, Left Hand, Front of Cab, painted other than gray or tan, Similiar to Ref 13

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

23

184981A1

DECAL

Stripes, Right Hand, Quarter Panel of Cab, painted other than gray or tan, Similiar to Ref 14

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

24

184982A1

DECAL

Stripes, Left Hand, Quarter Panel of Cab, painted other than gray or tan, Similiar to Ref 15

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

25

184983A1

DECAL

Stripes, Left Hand, Door of Cab, painted other than gray or tan, Similiar to Ref 16

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

26

184986A1

DECAL

Stripes, Right Hand, Front of Canopy, painted other than gray or tan, Similiar to Ref 17

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

27

184984A1

DECAL

Stripes, Left Hand, Front of Canopy, painted other than gray or tan, Similiar to Ref 18

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

28

184981A1

DECAL

Stripes, Right Hand, Quarter Panel of Canopy, painted other than gray or tan, Similiar to Ref 19

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

29

184987A1

DECAL

Stripes, Right Hand, Rear of Canopy, painted other than gray or tan, Similiar to Ref 20

1шт.

Ref. 21 through 29 are not shown in the illustration but are similar to the decals referenced in the text. The difference is that in the black and white illustration the color of the stripes is opposite that for cab and canopy colors other than gray.

1шт.

194308A1

DECAL

KIT, Includes: Ref. 1 - 4 P/N 183421A1 and 5 - 9 on this figure, Ref 1 - 13A on Figure 9-098, and Ref. 1, 2, 4A, 7, 8, 10 and 11 on Figure 9-100

1шт.
