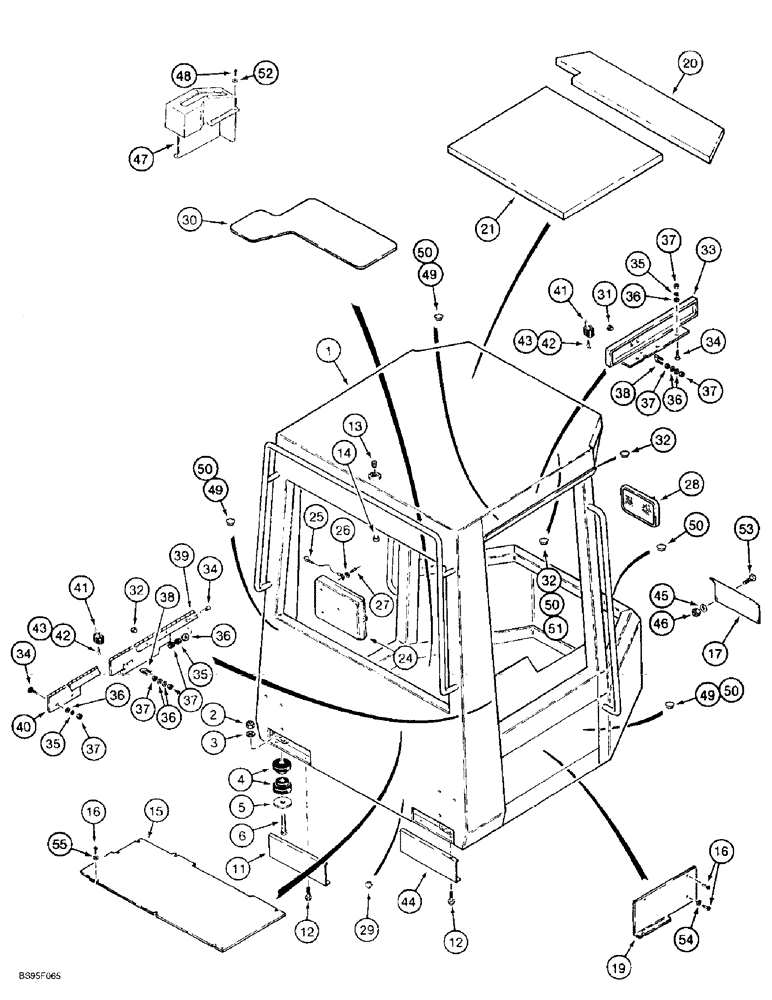

Запчасти Case 621B (9-091A) - CANOPY, GRAY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Canopy, ROPS, machinery item, order from Machinery Price List

1шт.

1

197812A1

PROTECTION

Canopy, shell, service replacement, includes canopy frame and headliner, Ref. 21, shown below

1шт.

2

429-1014

NUT,7/8"-9, G8

7/8 inch NC, grade 8

4шт.

3

27914R1

WASHER,15/16" x 2 1/4" x .219", HDN

15/16 x 1-3/4 x 7/32 inch, hardened

4шт.

4

R54331

HITCH DAMPER

Mount, rubber, engine support

8шт.

5

1332154C1

WASHER,23mm ID x 95.3mm OD x 12.7mm Thk

Spacer, special, cab mounting

4шт.

6

426-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 8

7/8 NC x 5-1/2 inch, grade 8

4шт.

11

193321A1

COVER

Rear, left-hand mounting access

1шт.

12

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

13

221-846

PLUG,Hex Soc, 1"-11 1/2

hex socket, 1 inch PT

1шт.

14

353-591

PLUG,2

recessed head, inch 2

1шт.

15

193669A1

COVER

rear, seat support

1шт.

16

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

10шт.

17

193668A1

COVER

front panel, models without windshield and wiper kit

1шт.

19

193672A1

COVER

access, right-hand

1шт.

20

179306A1

PAD

HEADLINER canopy, front

1шт.

21

179302A1

PADDING

HEADLINER vinyl, center

1шт.

24

R46464

CASE

operators manual

1шт.

25

D126821

CABLE

manual retaining, replaces R46465 cord

1шт.

26

495-31022

WASHER,#10

3шт.

27

151-522

RIVET,Pop, 3/16" x .575"

Break mandrel

3шт.

28

A177462

MIRROR

rear view, includes mounting hardware, replaces L74714 mirror assembly

1шт.

29

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

30

L126989

FLOOR MAT

canopy, self-adhesive, non-skid

1шт.

31

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

32

353-404

PLUG,Dome, .500" hole, Nylon

4-9шт.

33

193822A1

COVER ASSY

gauge panel, overhead

1шт.

34

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

1/4 NC x 5/8 inch, grade 2

8шт.

35

492-11025

LOCK WASHER,1/4"

8шт.

36

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

24шт.

37

425-144

JAM NUT,Jam, 1/4"-20, G5

24шт.

38

1977938C1

U-BOLT,1/4" - 20 x 1 7/16", Carbon Steel

BOLT "U" cover

4шт.

39

193820A1

PANEL ASSY.

Cover, instrument, right-hand console

1шт.

40

193821A1

COVER ASSY

control panel, right-hand console

1шт.

41

D93753

PADLOCK

Includes: Ref. 42 and 43, if used, replaces R29556 padlock

2шт.

42

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

43

R29555

KEY

for Master padlock only, if used

2шт.

44

193321A1

COVER

rear, left-hand mounting access

1шт.

45

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

2шт.

46

425-104

NUT,1/4"-20, Cl 5

2шт.

47

224510A1

COVER

lever, parking brake, replaces 193723A1 cover

1шт.

48

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

1/4 NC x 3/4 inch

4шт.

49

353-408

PLUG,Dome, .750" hole, Nylon

button, 3/4 inch

4шт.

50

353-403

PLUG,Dome, .437" hole, Nylon

19шт.

51

353-410

PLUG,Dome, .875" hole, Nylon

2шт.

52

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

5/16 x 3/4 x 1/16 inch

4шт.

53

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

1/4 NC x 1 inch

4шт.

54

1990502C1

WASHER

17/64 x 13/16 x 5/64 inch

1шт.

55

1990503C1

WASHER

special

7шт.
