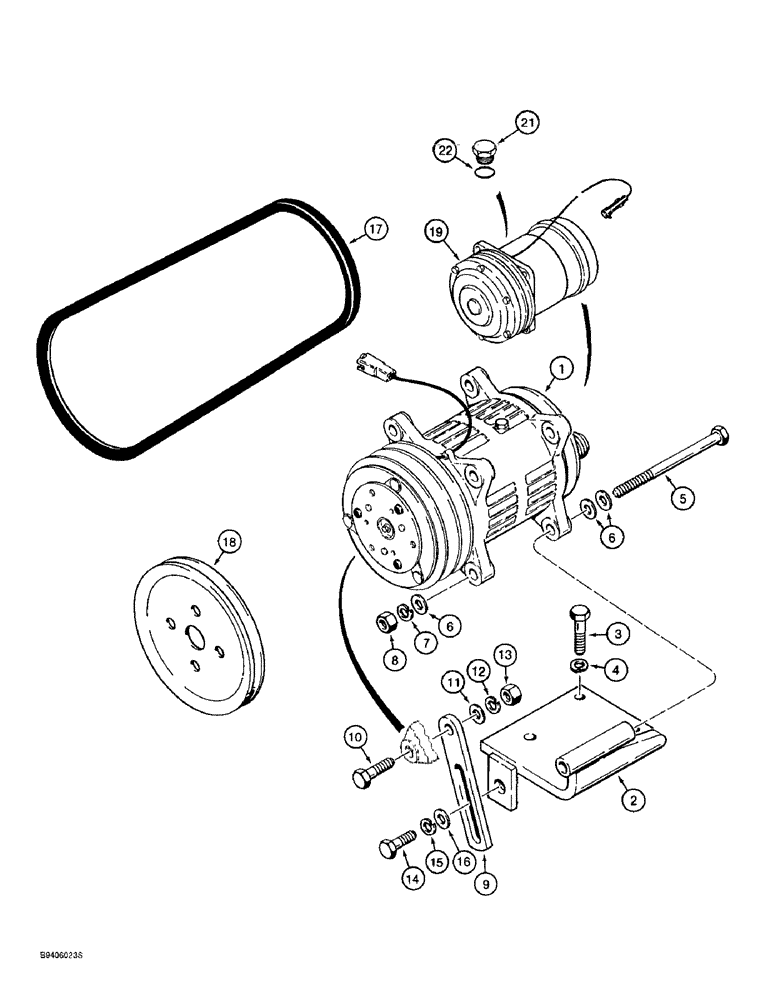

Запчасти Case 621B (9-086) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY air conditioning, see Figure 9-088, Serial Range: -JEE0040380

1шт.

2

84711C1

SUPPORT

BRACKET compressor mounting

1шт.

3

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

825-1410

NUT,M10, Cl 8

1шт.

9

84716C1

SUPPORT

STRAP adjusting

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

825-1410

NUT,M10, Cl 8

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

Compressor drive

1шт.

18

A189155

PULLEY

compressor drive

1шт.

1990760C1

COMPRESSOR

ASSEMBLY air conditioning, Includes: Ref. 19 - 22, if used JEE0040380 to

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

621B JEE0040380 (3/93 - 12/98), Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

Compressor, air conditioning, components not serviced separately, order 1990760C1 compressor assembly

1шт.

20

138886A1

CLUTCH

compessor, not shown

1шт.

21

A49667

PLUG

hex

1шт.

22

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide

1шт.
