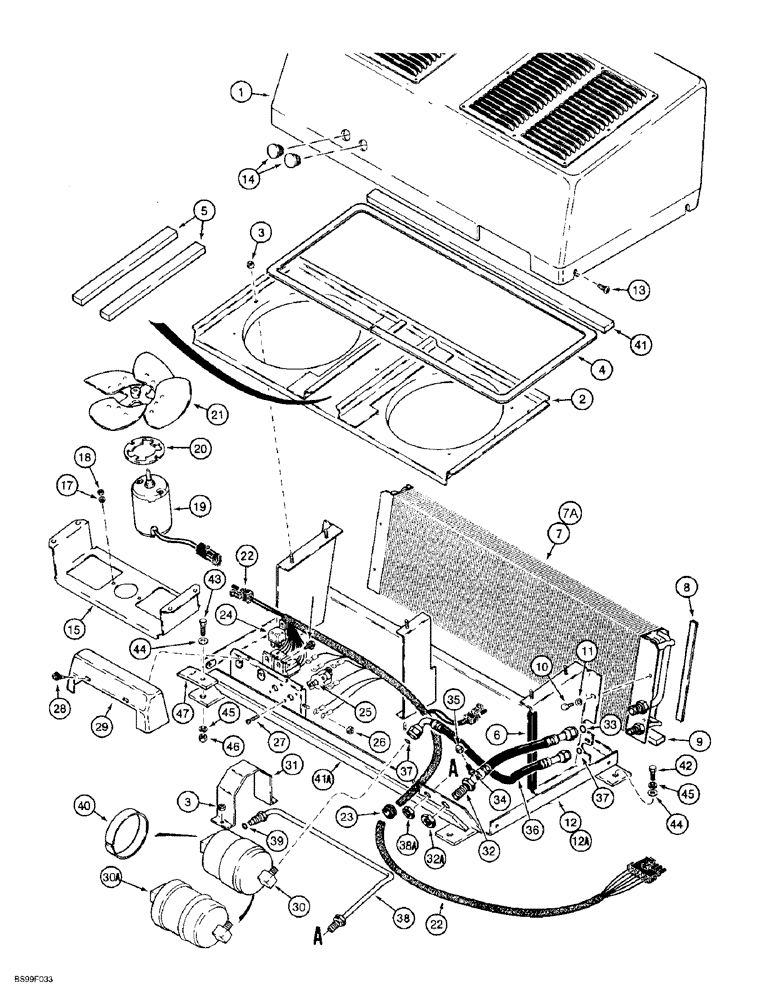

Запчасти Case 621B (9-085A) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS WITH TWO RELAYS (09) - CHASSIS/ATTACHMENTS

97182C6

CAPACITOR

Assy, Air Conditioning, With Brown Cover, Includes: Ref. 1 - 41A, Case Part Number Stamped on Vendor ID Plate, Replaces 97182C4 and 97182C5

1шт.

178301A1

ASSEMBLY

CONDENSER air conditioning, With Tan Cover, Includes: Ref. 1 - 41A

1шт.

1

178303A1

COVER ASSY

Condenser Unit, Brown, 97182C6 condenser, Replaces 1977874C1 Cover

1шт.

1

178303A1

COVER ASSY

Condenser Unit, Tan, 178301A1 Condenser

1шт.

2

1974863C2

PROTECTOR

Shroud, fan

1шт.

3

425-104

NUT,1/4"-20, Cl 5

15шт.

4

1977898C1

SEAL

2032 mm (80 inch) Long, Cut From 198573C1 Bulk Seal, Shroud Perimeter

1шт.

5

1977899C1

SEAL

1045 mm (41-1/8 inch) Long, Cut From 198573C1 Bulk Seal, Shroud Baffle

2шт.

6

1327979C1

MOLDING

Trim, Edge, 152 mm (6 in), Cut From 1330108CX Bulk Trim

1шт.

7

97213C1

CAPACITOR

air conditioning, used on 97182C5 condenser, prior to P.I.N. JEE0040380

1шт.

7a

97213C2

CONDENSER

air conditioning, used on 97182C6 condenser, P.I.N. JEE0040380 and after

1шт.

8

1977901C1

SEAL

227 mm (9 inch) long, Cut From 198573C1 Bulk Seal, Condenser Flange

2шт.

9

1977900C1

SEAL

787 mm (31 inch) long, Cut From 1977902CX Bulk Seal, Lower Condenser

1шт.

10

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

4шт.

11

492-11025

LOCK WASHER,1/4"

4шт.

12

138583A1

SUPPORT

Plate, Used on 97182C5 Condenser, Used on Models With Brown Cover Prior to P.I.N. JEE0040380 and On All Models With Tan Cover

1шт.

12a

178468A1

LARGE PLATE

PLATE, LARGE Used on 97182C6 condenser, Used on Models With Brown Cover P.I.N. JEE0040380 and After

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

14

205-104

HOLE PLUG BUTTON,1"

2шт.

15

137511A1

GUARD

Mount, fan motor

2шт.

17

492-11010

LOCK WASHER,#10

4шт.

18

225-14210

NUT,#10-32

4шт.

19

1977427C2

MOTOR, ELECTRIC

fan, 24 volt

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

621B

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

138897A1

SPACER

Shim, motor

2шт.

21

1977731C1

FAN

Blade, 9 inch diameter

2шт.

22

137333A1

HARNESS

condenser

1шт.

23

248-1243

GROMMET,1/2" ID x 13/16" Groove Dia, Diag Cut

1шт.

24

198161A1

RELAY

Mini, 24 Volt, Replaces A186288

2шт.

25

A187825

RELAY

Breaker, circuit, 10 ampere

2шт.

26

225-14210

NUT,#10-32

1шт.

27

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

4шт.

29

1977847C1

COVER

relay

1шт.

30

143469C2

RESERVOIR

Receiver-Dryer, Air Conditioning System, Used on 97185C5 Condenser, Prior to P.I.N. JEE0040380

1шт.

30a

1990758C2

RECEIVER-DRYER

Air Conditioning System, Used on 97185C6 Condenser, P.I.N. JEE0040380 and After

1шт.

31

1974861C1

SUPPORT

BRACKET receiver-drier

1шт.

32

1954630C6

HOSE

ASSEMBLY, 380 mm (15 inch) long, Includes: Ref. 32A - 34, Supply, Attaches To Compressor Hose, Replaces 1954630C5 Hose

1шт.

32a

NSS

NOT SOLD SEPARAT

Nut, Special

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

34

1250594C2

CORE

Valve, supply hose

1шт.

35

178460A1

PLUG

Cap, valve, replaces 222-981 cap

1шт.

36

1954627C3

HOSE

500 mm (19-11/16 inch) long, Includes: Ref. 37, Condenser To Receiver-drier

1шт.

37

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

38

1954628C4

TUBE

Return, Includes: Ref. 38A and 39

1шт.

38a

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

39

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

40

180623C1

SEAL

271 mm (10-11/16 inch) long, Cut From 1281436C1 Bulk Strip

1шт.

41

1977897C1

SEAL

750 mm (29-1/2 inch) long, Cut From 1977902CX Bulk Seal

1шт.

41a

NSS

NOT SOLD SEPARAT

Foam, Urethane, Support Plate Insulator, Lower Rear, Cut From 1999409C1 Bulk Below

1шт.

42

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

43

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

44

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

45

492-11038

LOCK WASHER,3/8"

4шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

47

L125787

LARGE PLATE

PLATE, LARGE Clamp, condenser, Serial Range: cover-hood

2шт.

196707C1

SEAL

Trim, Edge, Bulk 15240 mm (600 inch) Long, Replaces 1330108CX Trim

1шт.

198573C1

STRIP

Seal, Bulk, 13 (1/2) Wide x 15240 mm (600 Inch) Long

1шт.

1281436C1

SEAL

Bulk, 22 (7/8) Wide x 30480 mm (1200 Inch) Long, Replaces 198530C1 Seal

1шт.

1977902CX

SEAL

Bulk, 25 (1) Wide x 15240 mm (600 Inch) Long

1шт.

1999409C1

FOAM

Urethane, 305 mm (12 inch) long

1шт.
