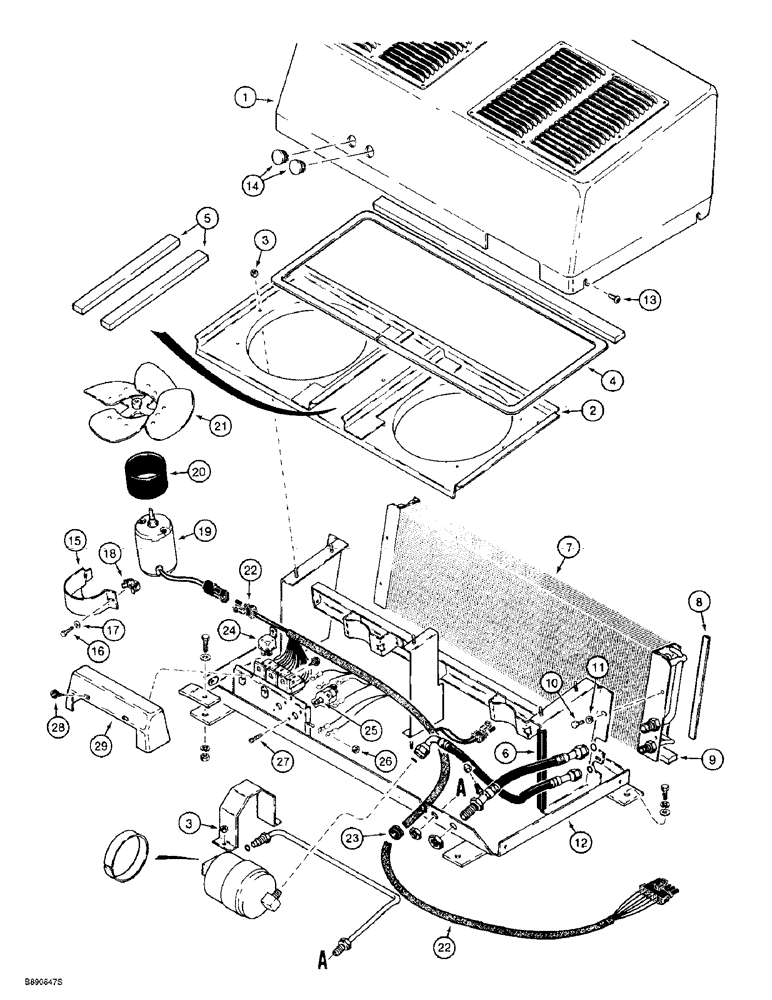

Запчасти Case 621B (9-082) - AIR CONDITIONING CONDENSER AND MOUNTING, CONDENSER HARNESS WITH THREE RELAYS (09) - CHASSIS/ATTACHMENTS

97182C4

CAPACITOR

CONDENSER ASSEMBLY air conditioning, Includes: Ref. 1 - 29 on this figure and parts on Figure 9-084, no longer available, order 97182C6 condenser, see Figure 9-085A

1шт.

178301A1

ASSEMBLY

CONDENSER air conditioning, with tan cover, Includes: Ref. 1 - 29 on this figure and parts on Figure 9-084, if used

1шт.

1

178303A1

COVER ASSY

condenser unit, brown, replaces 1977874C1 cover

1шт.

2

1974863C2

PROTECTOR

Shroud, fan, replaces 1974863C1 shroud

1шт.

3

425-104

NUT,1/4"-20, Cl 5

7шт.

4

1977898C1

SEAL

2032 mm (80 inch) long, cut from 198573C1 bulk seal, shroud perimeter

1шт.

5

1977899C1

SEAL

1045 mm (41-1/8 inch) long, cut from 198573C1 bulk seal, shroud baffle

2шт.

6

1327979C1

MOLDING

TRIM edge, 152 mm (6 inch) long, cut from 1330108CX bulk trim

1шт.

7

97213C2

CONDENSER

air conditioning, see Figure 9-085A

1шт.

8

1977901C1

SEAL

227 mm (9 inch) long, cut from 198573C1 bulk seal, condenser flange

2шт.

9

1977900C1

SEAL

787 mm (31 inch) long, cut from 1977902CX bulk seal, lower condenser

2шт.

10

463-1258

SCREW,Hex Hd, 1/4"-20 x 1/2"

4шт.

11

492-11025

LOCK WASHER,1/4"

4шт.

12

1974859C1

SUPPORT

Plate, no longer available, order 138583A1 plate, Ref. 12, shown on Figure 9-085A

1шт.

13

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

4шт.

14

205-104

HOLE PLUG BUTTON,1"

2шт.

15

1975923C1

MOUNTING CLIP

BRACKET mounting, fan

2шт.

16

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

1/4 inch NC x 1 inch

2шт.

17

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64 inch, hardened

2шт.

18

131-852

SPRING NUT,Ret, 1/4"-20

Speed grip

2шт.

19

1977427C2

MOTOR, ELECTRIC

fan, 24 volt

2шт.

19

1977427C2R

REMAN-ELECTRIC MOTOR

621B

2шт.

19

1977427C2C

CORE-ELECTRIC MOTOR

Return Number

2шт.

20

D83118

ISOLATOR

INSULATOR motor

2шт.

21

1977731C1

FAN

Blade, 9 inch diameter, condenser

2шт.

22

A187775

HARNESS

condenser, with three relay connectors, no longer available, order 137333A1 harness with two relay connectors

1шт.

22a

137333A1

HARNESS

condenser, with two relay connectors, not shown, see Figure 9-085A, Ref. 22

1шт.

23

117963

GROMMET,1/2" ID x 1 1/16" x .062"

rubber, 1/2 x 1-1/16 x 5/16 inch

1шт.

24

198161A1

RELAY

mini, 24 volt, replaces A186288 relay

2-3шт.

25

A187825

RELAY

Breaker, circuit, 10 ampere

2шт.

26

225-14210

NUT,#10-32

1шт.

27

340-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

No. 8 NC x 3/4 inch

4шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

4шт.

29

1977847C1

COVER

relay

1шт.

196707C1

SEAL

TRIM edge, bulk, 15240 mm (600 inch) long

1шт.

198573C1

STRIP

bulk, 13 (1/2) wide x 15240 mm (600 inch) long

1шт.

1977902CX

SEAL

bulk, 25 (1) wide x 15240 mm (600 inch) long

1шт.
